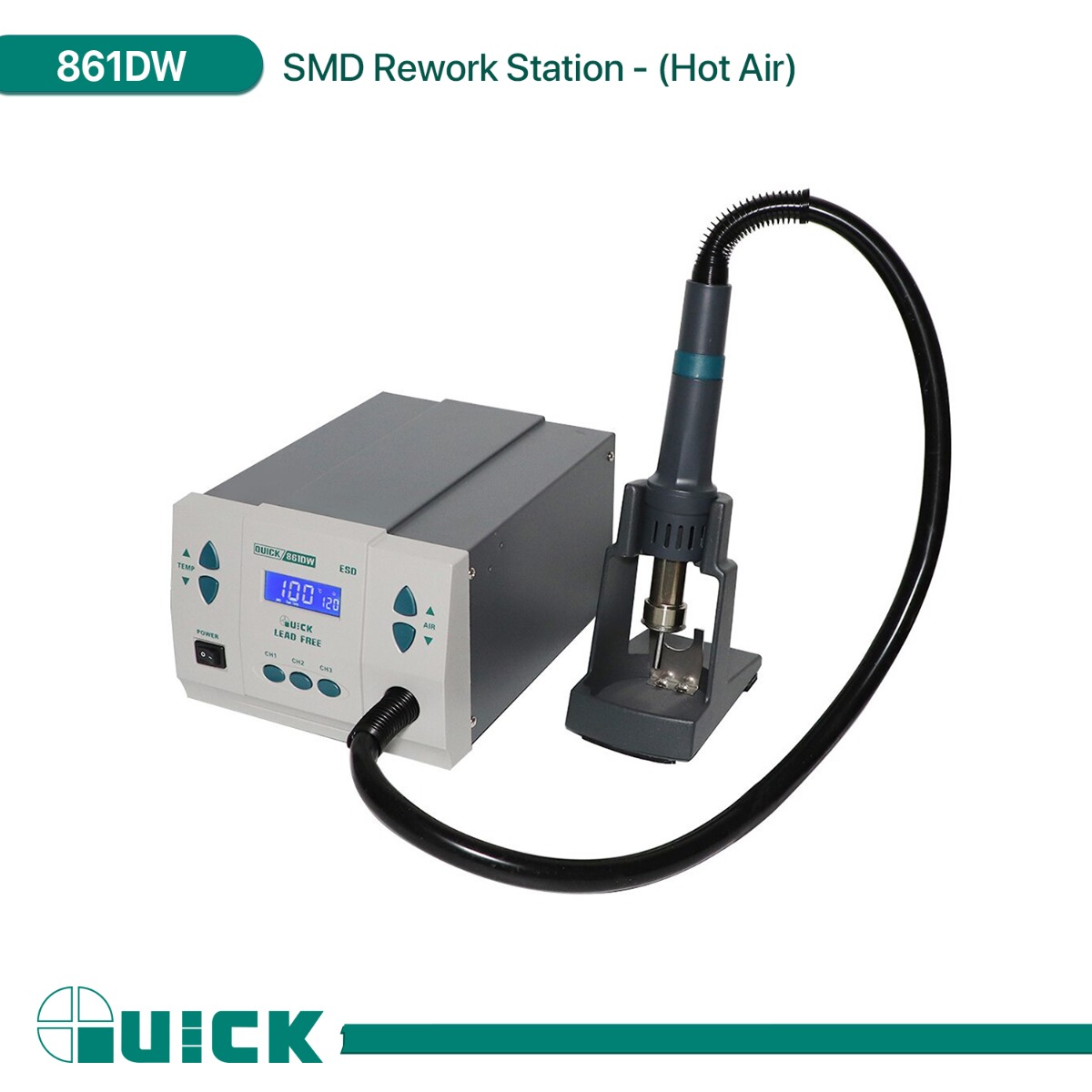

QUICK 861DW SMD Rework Station - (Hot Air)

• Brand: QUICK.
• Model: 861DW.
• Professional hot air rework station.
• Low noise operation.
• Equipped with a powerful dual-pass hot air system.
• Fast heating and precise response.
• Adjustable airflow to suit different applications.
• Intelligent LED digital display.
• Auto standby mode for energy saving.
• Suitable for a wide range of maintenance and production tasks.
• Color: Grey.

• Power: 1000W.
• Voltage: AC 220~240V.
• Temperature Range: 100°C ~ 500°C.
• Airflow: Up to 50–120 L/min (actual ≈ 50 L/min).
• Heating Element: Ceramic (H616A).
• Dimensions: 188 × 245 × 135 mm.
• Weight: Approx. 3.9 kg.

• ESD Safe: Protects sensitive electronic components from static electricity.
• High-Quality Ceramic Heating Element: Provides fast and stable heating with overheat protection.
• Durable and Compact Design: Metal housing ensures stability and easy portability.
• 3 Programmable Channels (CH1 / CH2 / CH3): Customize temperature and airflow settings.
• Magnetic Sensor in Handle: Automatically activates sleep mode when placed on the holder.
• Closed-Loop Control System: Ensures precise and consistent temperature regulation.
• Brushless Fan: Quiet and stable airflow with long service life.
• Auto Cooling Function: Extends heater lifespan and protects the handle.
• Password Lock Function: Prevents unauthorized setting changes.
• Versatile Applications: Ideal for soldering, desoldering, heating, melting, drying, paint removal, and sterilization.

In the Box

• 1 × Hot Air Handle with Holder
• 1 × Air Outlet Cover
• 1 × Spare Fuse
• 1 × Power Cable (EU Plug)
• 3 × Nozzles
• 1 × Adapter Nozzle for Aoyue Nozzles
