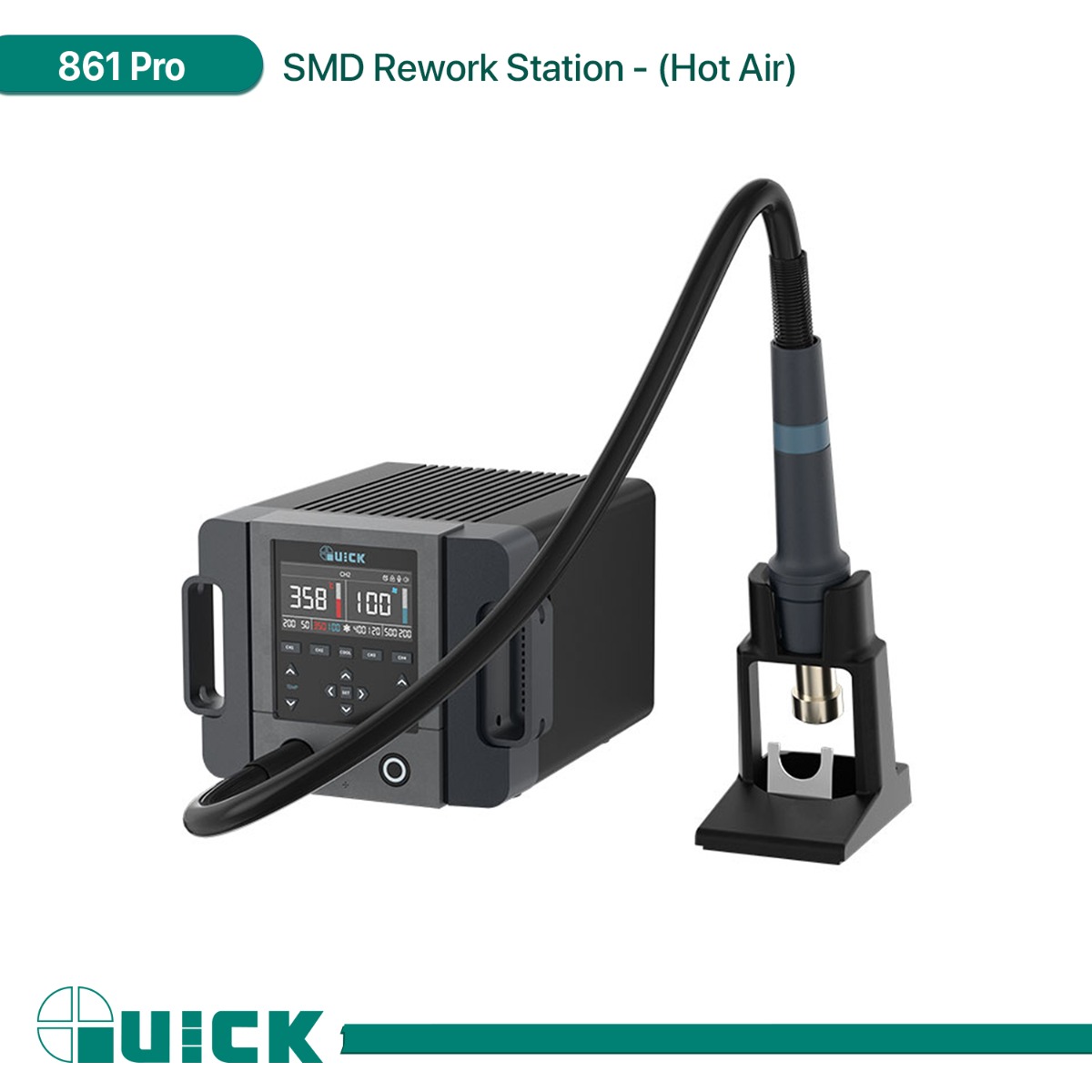

QUICK 861 Pro SMD Rework Station - (Hot Air)

• Brand: QUICK.
• Model: 861 Pro.
• High-performance SMD hot air rework station.
• Designed for precision soldering, desoldering, and repair of surface-mount components.
• Combines intelligent temperature control with programmable channels and advanced airflow technology.
• Ideal for professional electronics work.
• Color: Black.

• Power Consumption: 1300W.
• Temperature Range: 50°C – 550°C (122°F – 1022°F).
• Temperature Stability: ±2°C.
• Air Volume Levels: 1 – 200 steps.
• Maximum Airflow: 70 L/min.
• Noise Level: < 45dB.
• Display: Full HD Color OLED.
• Voltage: AC 220V.
• Dimensions: 214 × 235 × 159mm.
• Weight: Approx. 4.3 kg.

• ESD-Safe Design: Protects sensitive components from electrostatic discharge.
• High Power Output: 1300W intelligent PID-controlled heating system ensures rapid and stable temperature response.
• Wide Temperature Range: Easily adjustable from 50°C to 550°C for various rework tasks.
• Precise Airflow Control: Stepless airflow adjustment with up to 70 L/min and 200 levels.
• Programmable Presets: Three customizable channels for temperature and airflow.
• OLED Display: Full-color dynamic interface for real-time temperature monitoring.
• Brushless Vortex Fan: Quiet, reliable, and long-lasting operation.
• Automatic Sleep & Cool Down: Engages when the handpiece is placed on the holder to protect the heater and extend its lifespan.
• AI Voice Control: Enables hands-free operation for improved workflow efficiency.

Applications

• Soldering and desoldering of SMDs such as SOIC, QFP, PLCC, and BGA.
• PCB repair and component rework.
• Heat-shrink tubing and other thermal processes.
• General electronics assembly and maintenance.

In the Box

• 1 × Rework Station
• 1 × Hot Air Handpiece with Holder
• 1 × Set of Nozzles
