Brand: TP-Link
Model: RE220

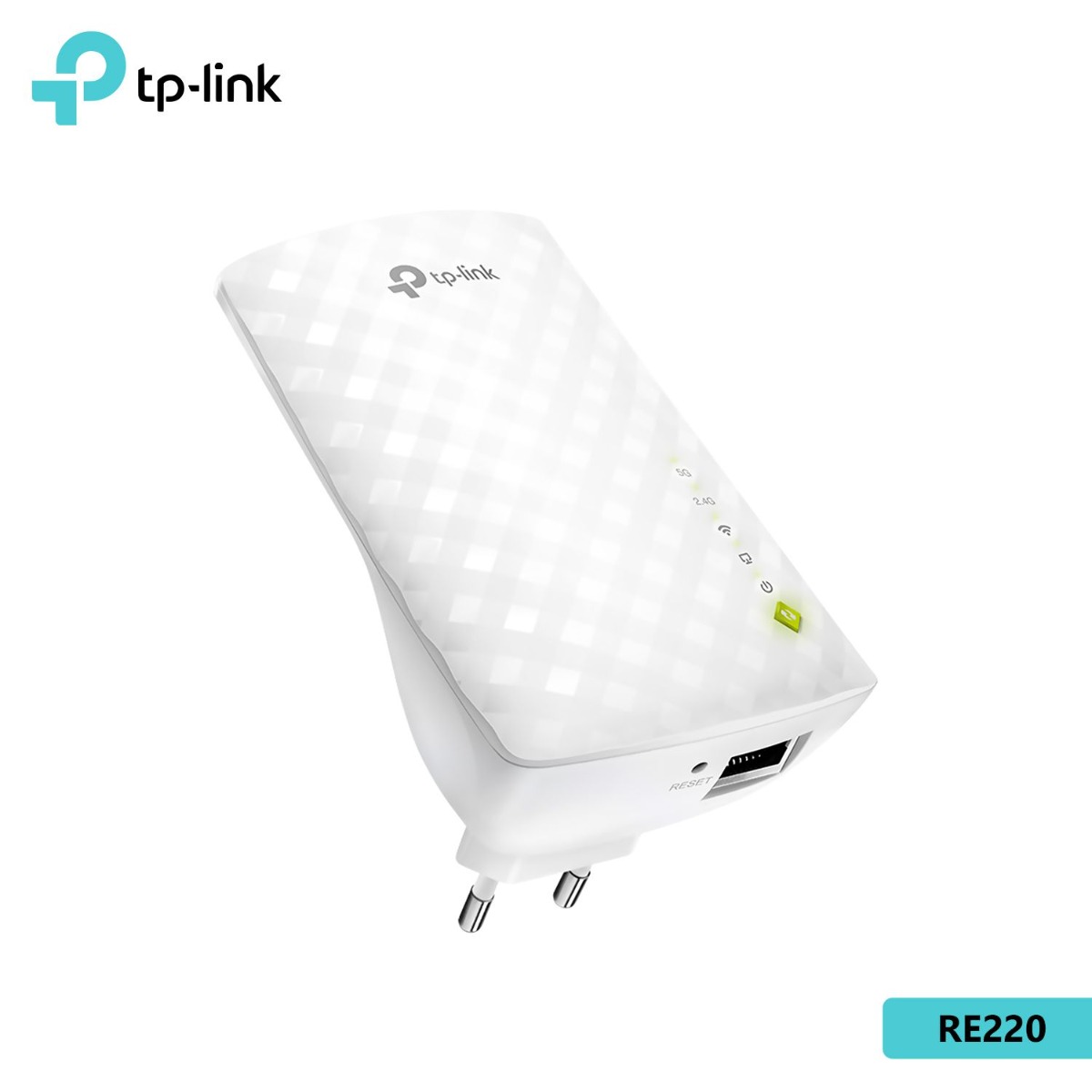

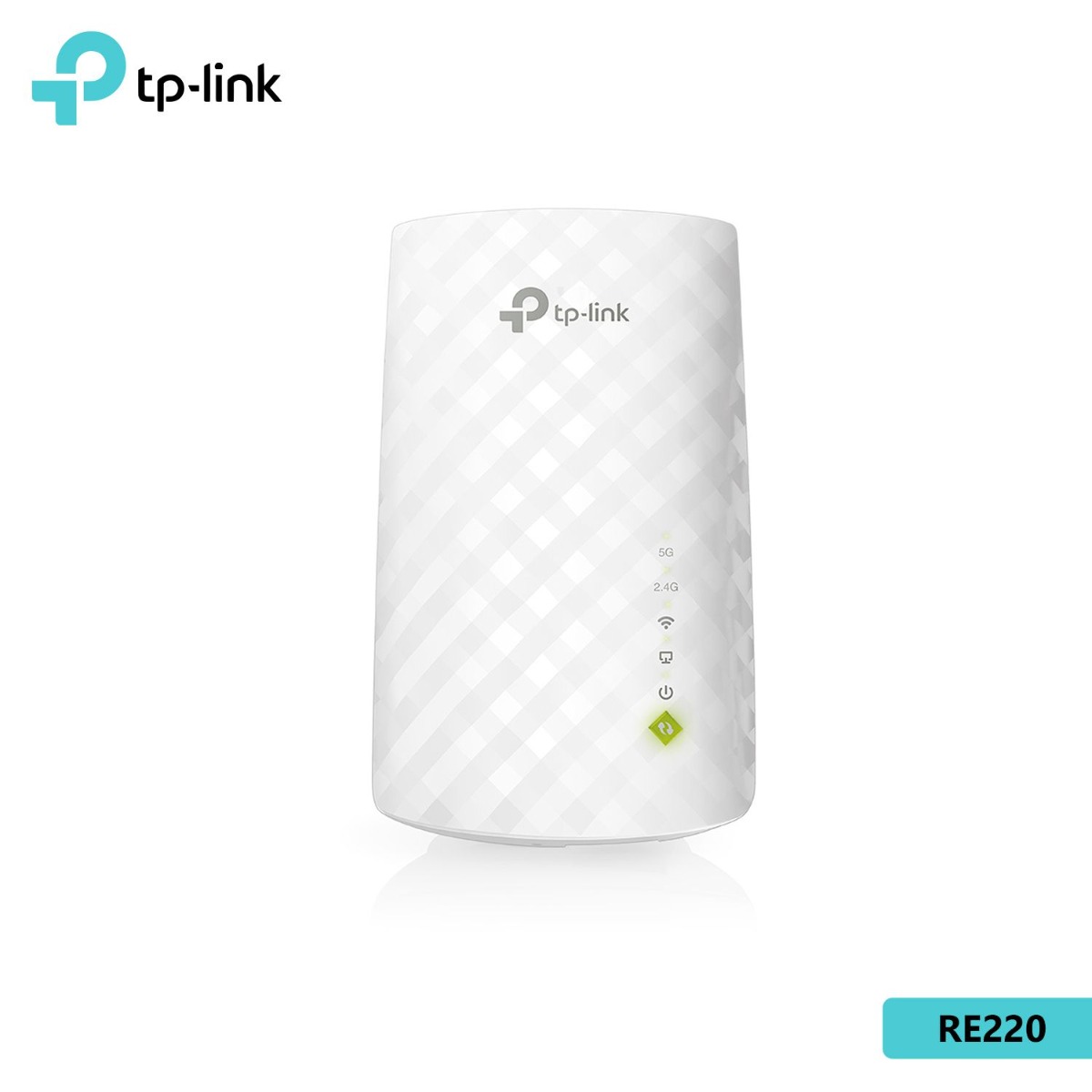

AC750 Wi-Fi Range Extender
Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices

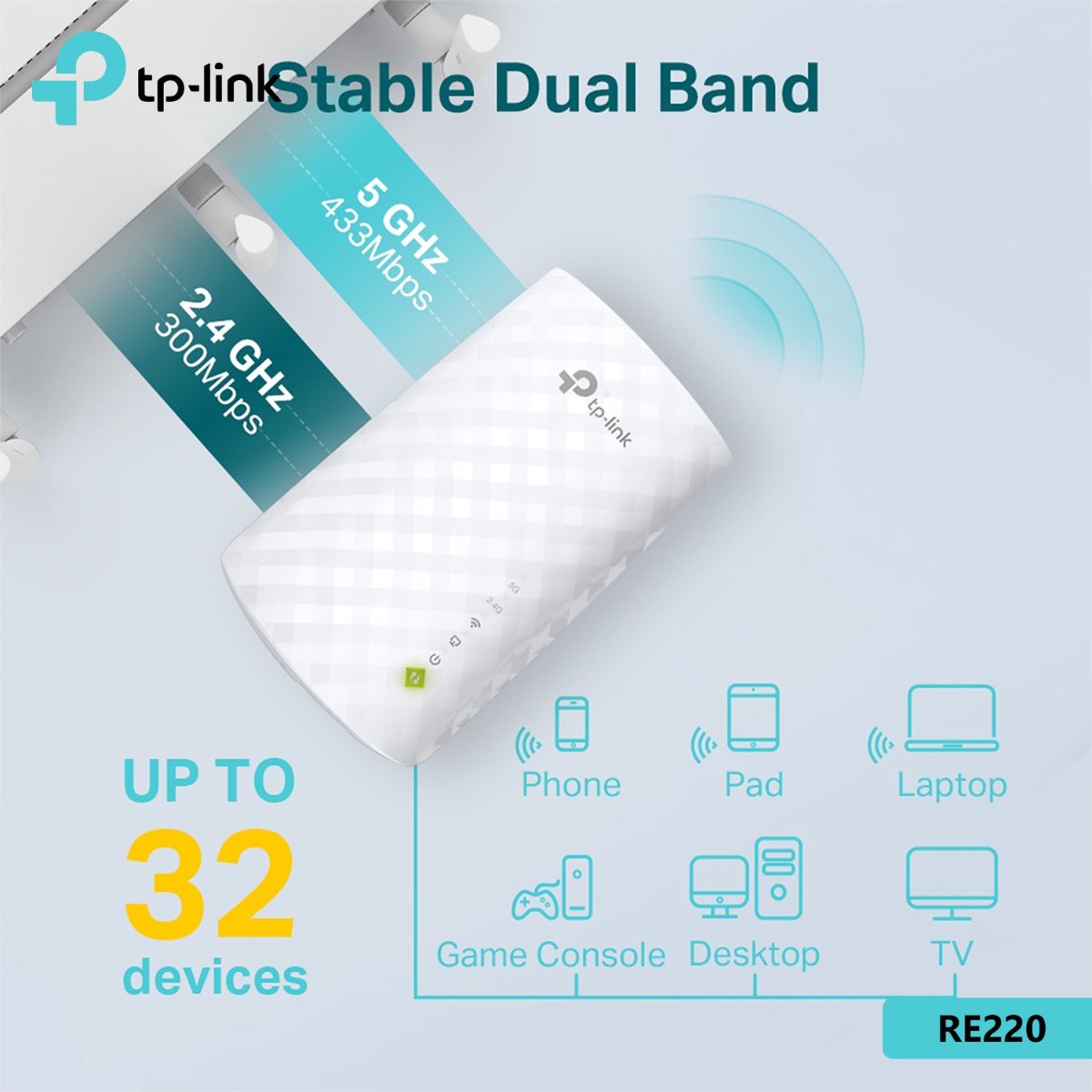

Dual band speeds up to 750Mbps
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz & 5GHz
----------------------------------------------------------------------------------------------------
Signal Rate
300Mbps at 2.4GHz
433Mbps at 5GHz
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5G
390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M：-90dBm@10% PER
2.4G
270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
----------------------------------------------------------------------------------------------------
Transmission Power
<20dBm (EIRP)
----------------------------------------------------------------------------------------------------
Working Modes
Range Extender/Access Point
----------------------------------------------------------------------------------------------------
Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
----------------------------------------------------------------------------------------------------
Wireless Functions
WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function
Standards and Protocols
IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
----------------------------------------------------------------------------------------------------
Plug Type
EU
----------------------------------------------------------------------------------------------------
Interface
1 × 10/100Mbps Ethernet Port (RJ45)
----------------------------------------------------------------------------------------------------

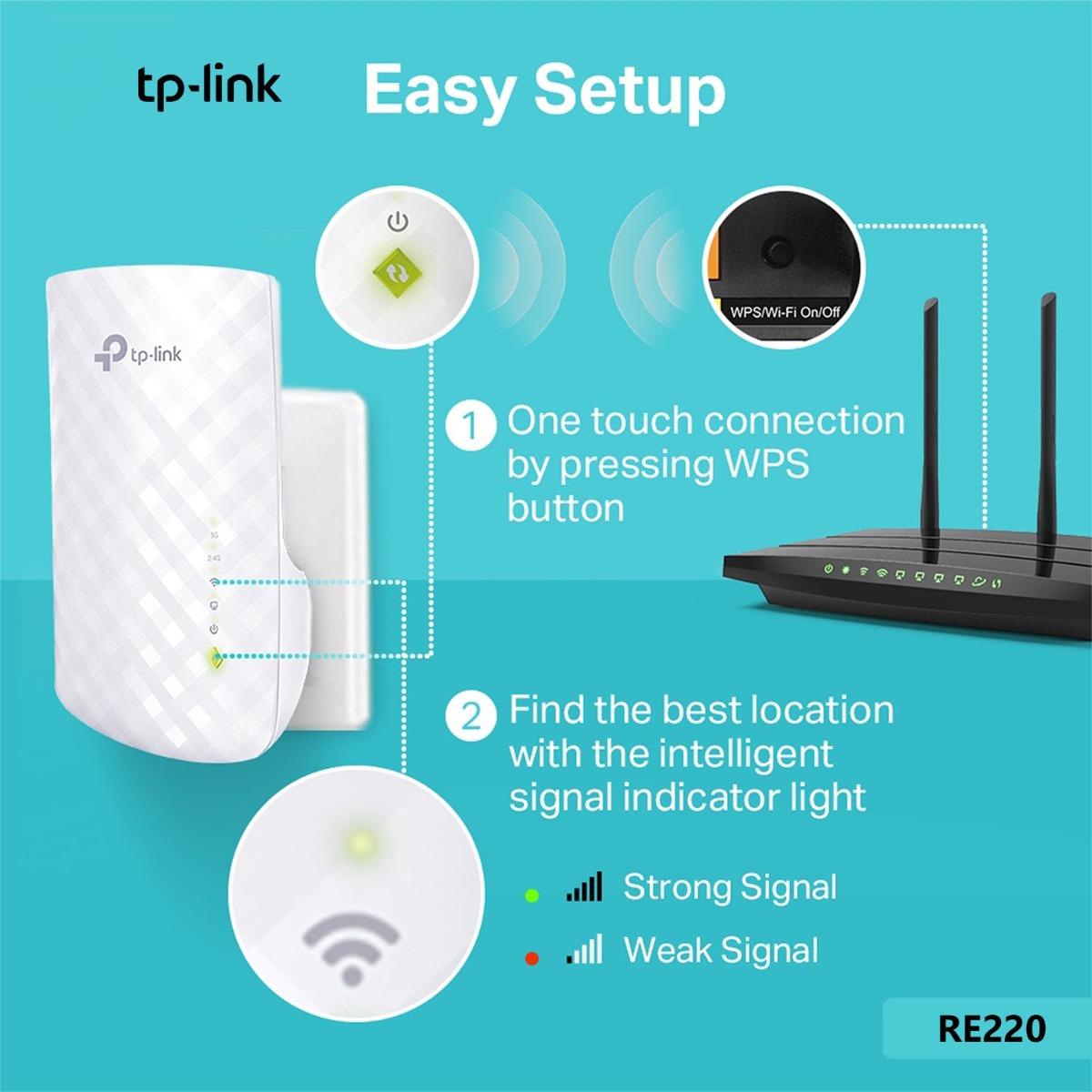

Button
RE (Range Extender) Button, Reset Button
----------------------------------------------------------------------------------------------------
Input Power
100-240V~50/60Hz
----------------------------------------------------------------------------------------------------
Max. Power Consumption
About 6.5W
----------------------------------------------------------------------------------------------------

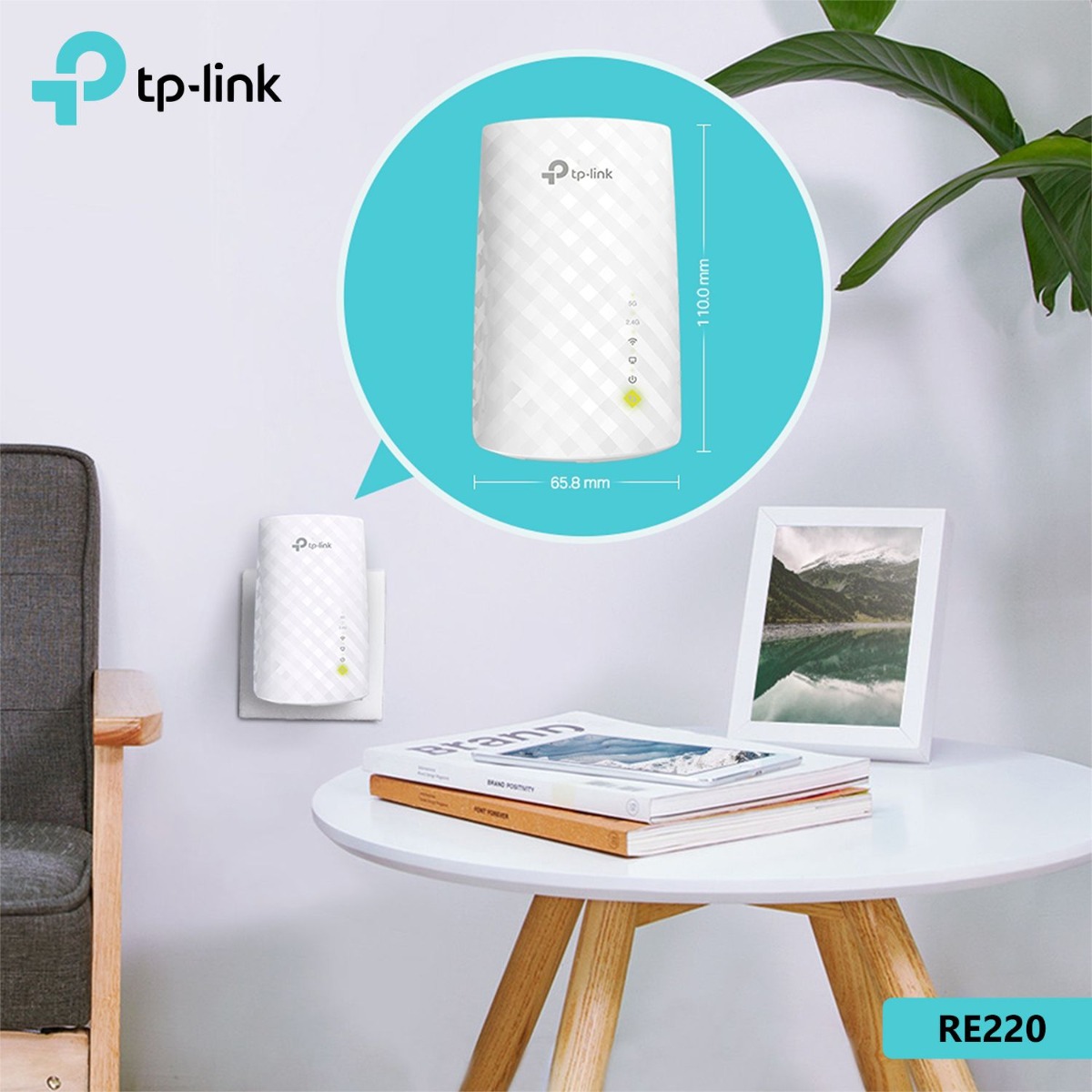

Dimensions (W×D×H)
4.3×2.6×3.0in. (110.0×65.8×75.2mm)
----------------------------------------------------------------------------------------------------
Antenna
3 Internal Antennas
Certification
FCC, RoHS
----------------------------------------------------------------------------------------------------

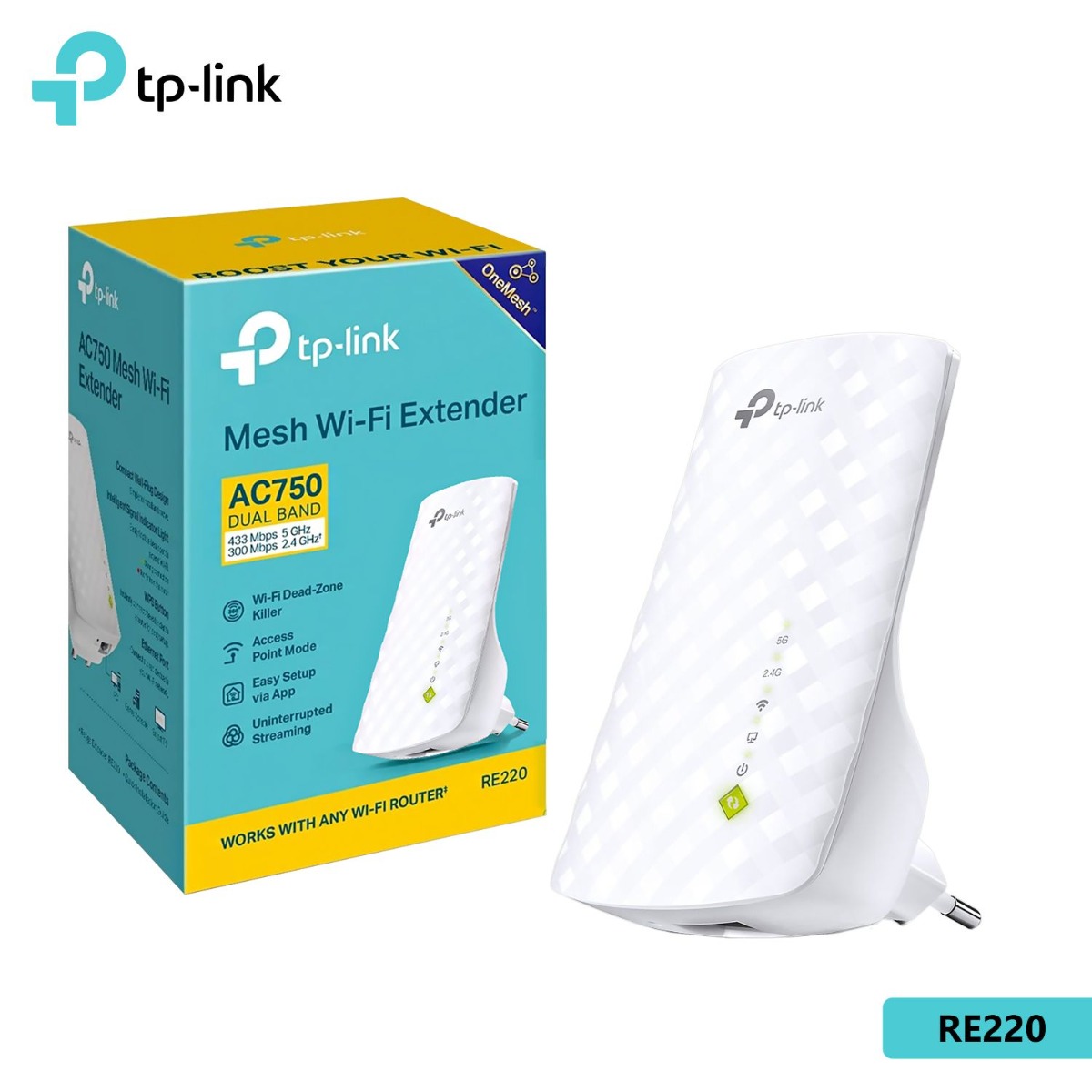

Package Content
AC750 Wi-Fi Range Extender RE220
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
