Brand: TP-Link.
Model: TX20U.
Product Type: Wireless USB Flash Adapter.
Fast WiFi 6: Break the gigabit barrier with speeds up to 1201Mbps (5GHz) + 574Mbps (2.4GHz).
Dual Band Wireless: 2.4GHz and 5GHz bands for flexible connectivity.

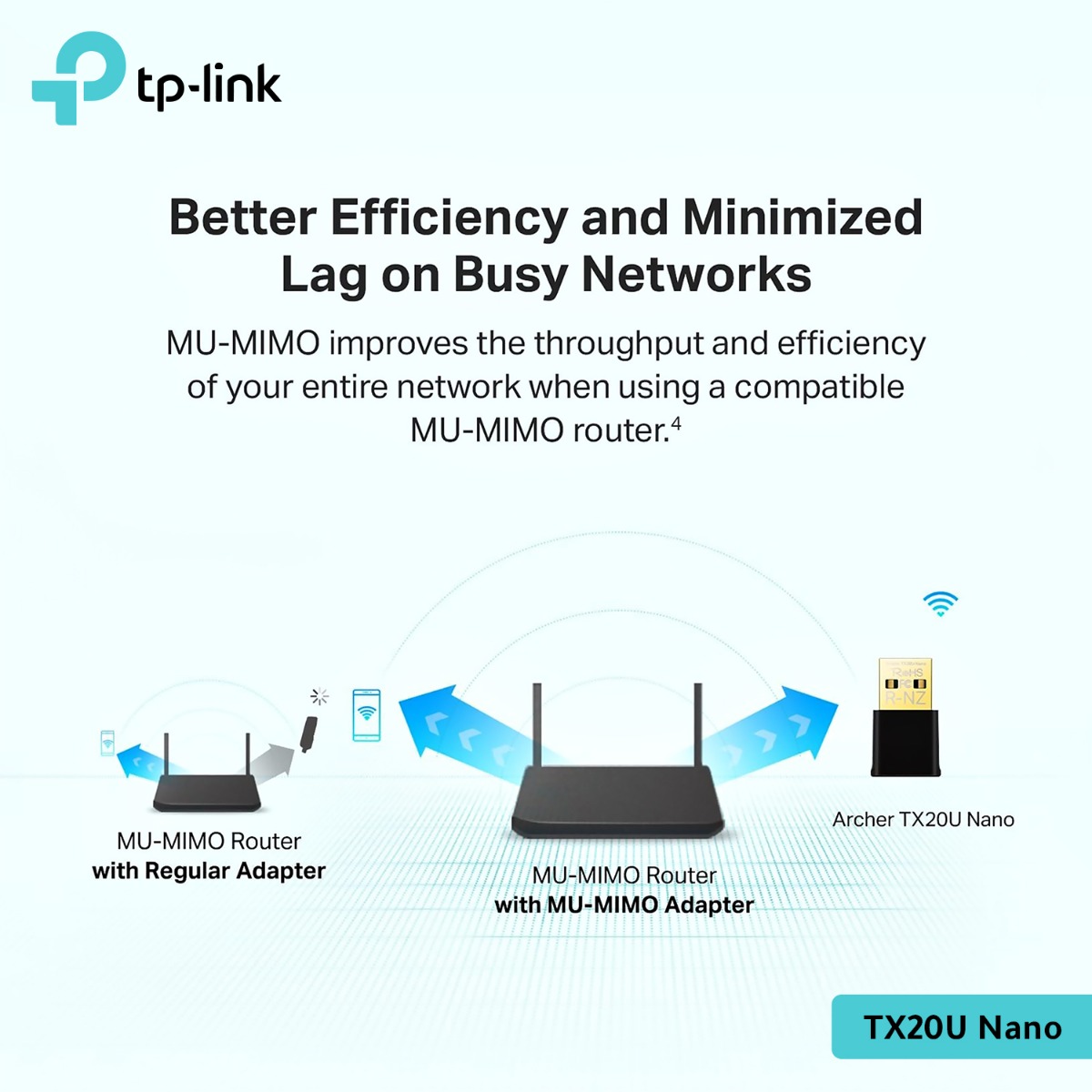

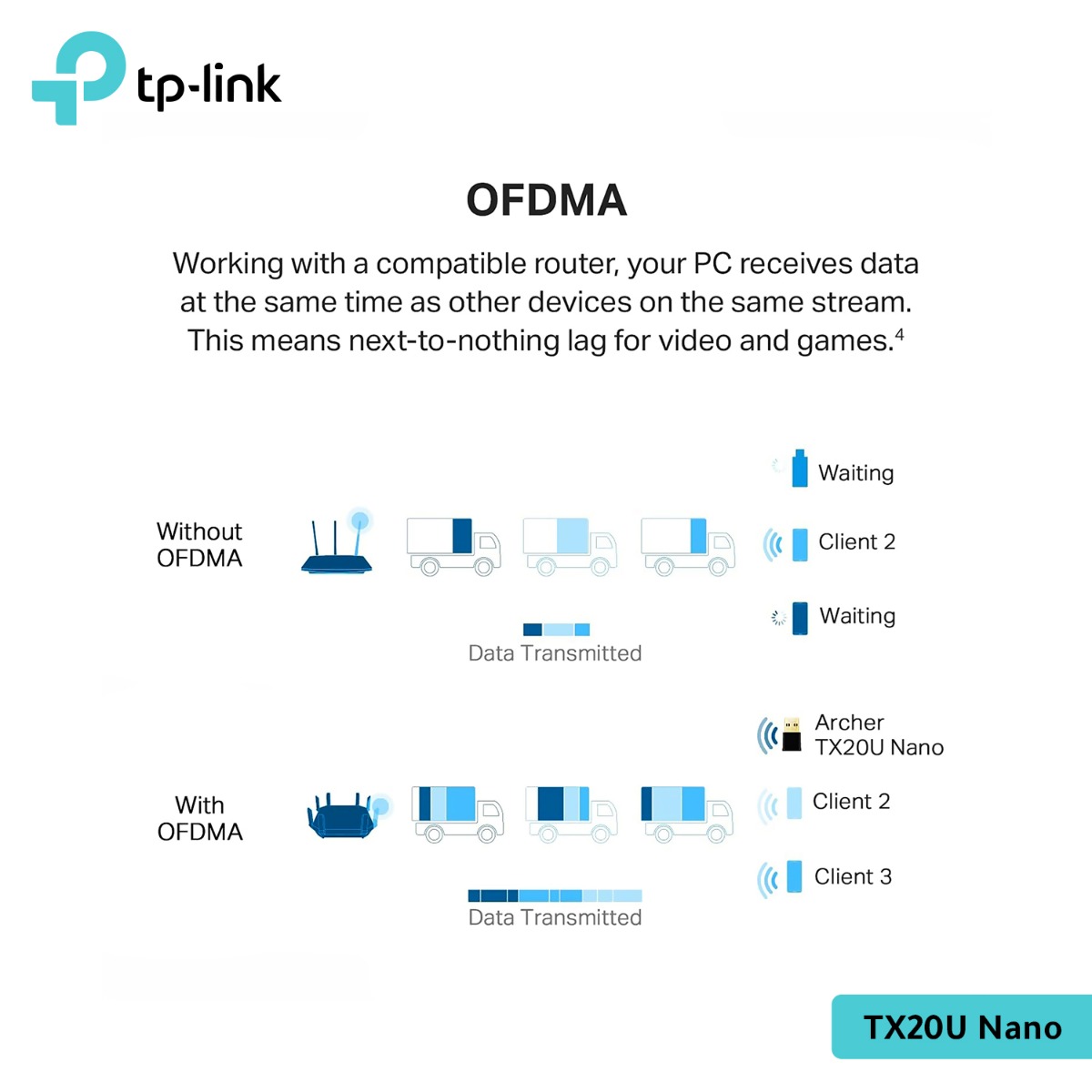

Lower Latency Gameplay: OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.
Improved Security: WPA3 provides the latest security enhancements for personal password protection.

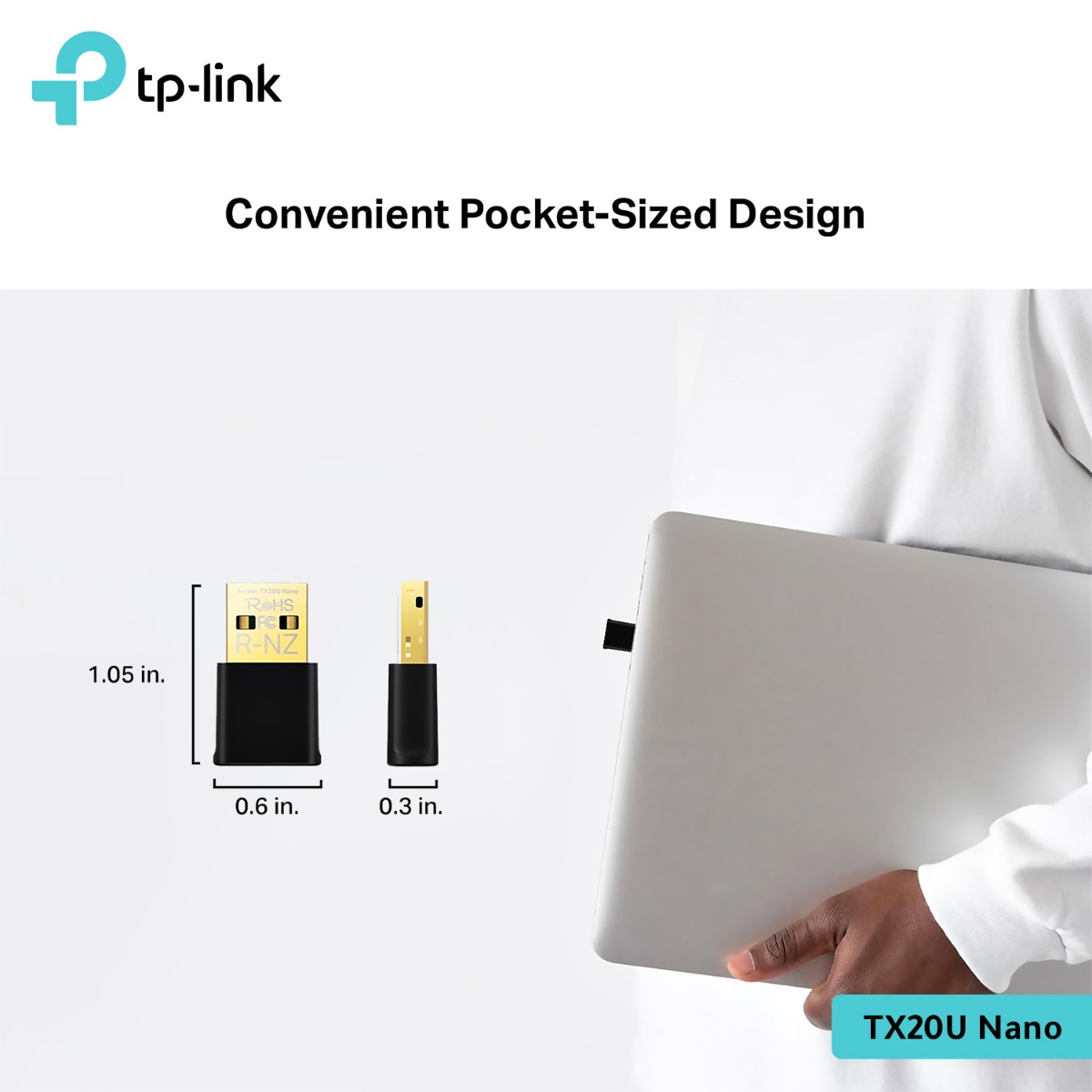

Nano design: Small, unobtrusive design allows you to plug it in and forget it is even there
Setup Made Easy: TX20U Nano comes with its driver pre-loaded. Just plug and install.
Color: Black.
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz and 5GHz
----------------------------------------------------------------------------------------------------
Signal Rate (WiFi Speeds)
300Mbps at 2.4GHz, 867Mbps at 5GHz
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHz
11a 54M: -77 dBm
11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm
11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm
11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm
2.4GHz
11g 54M: -74.5 dBm
11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm
11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
----------------------------------------------------------------------------------------------------
Transmission Power
2.4GHz < 20dBm
5GHz < 23dBm
----------------------------------------------------------------------------------------------------
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
----------------------------------------------------------------------------------------------------
WAN Failover
Yes
----------------------------------------------------------------------------------------------------
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
----------------------------------------------------------------------------------------------------
Network Type
4G:
FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500MHz)
3G:
DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
Protocols
Supports IPv4 and IPv6
----------------------------------------------------------------------------------------------------
Quality of Service
Prioritizes network traffic by device or application
----------------------------------------------------------------------------------------------------
Operation Modes
3G/4G Router, Wireless Router
----------------------------------------------------------------------------------------------------
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
----------------------------------------------------------------------------------------------------
Management
Access Control (Parental Control, Local Management Control), Local Management, Remote Management, reboot schedule
----------------------------------------------------------------------------------------------------
DHCP
Server, DHCP Client List, Address Reservation
----------------------------------------------------------------------------------------------------
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
----------------------------------------------------------------------------------------------------
Dynamic DNS
DynDns, NO-IP
----------------------------------------------------------------------------------------------------
Firewall Security
DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
----------------------------------------------------------------------------------------------------
Guest Network
2.4GHz guest network × 1, 5GHz guest network × 1
----------------------------------------------------------------------------------------------------
VPN Server
PPTP VPN, OpenVPN
Dimensions (WxDxH)
6.85×4.9×1.32in (174×124.5×33.5mm)
----------------------------------------------------------------------------------------------------
Interfaces
3×10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot
----------------------------------------------------------------------------------------------------
Button
WPS/RESET Button, Wi-Fi ON/OFF Button
----------------------------------------------------------------------------------------------------
External Power Supply
12V/1A
----------------------------------------------------------------------------------------------------
Antenna
2 × Detachable External 4G LTE Antennas
Package Contents
AC1200 Wireless Dual Band 4G LTE Router, Archer MR400
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0,
Safari 4.0 browsers or higher, or other Java-enabled browsers
Nano SIM Card
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
