Brand: MERCUSYS
Model: MS108GS

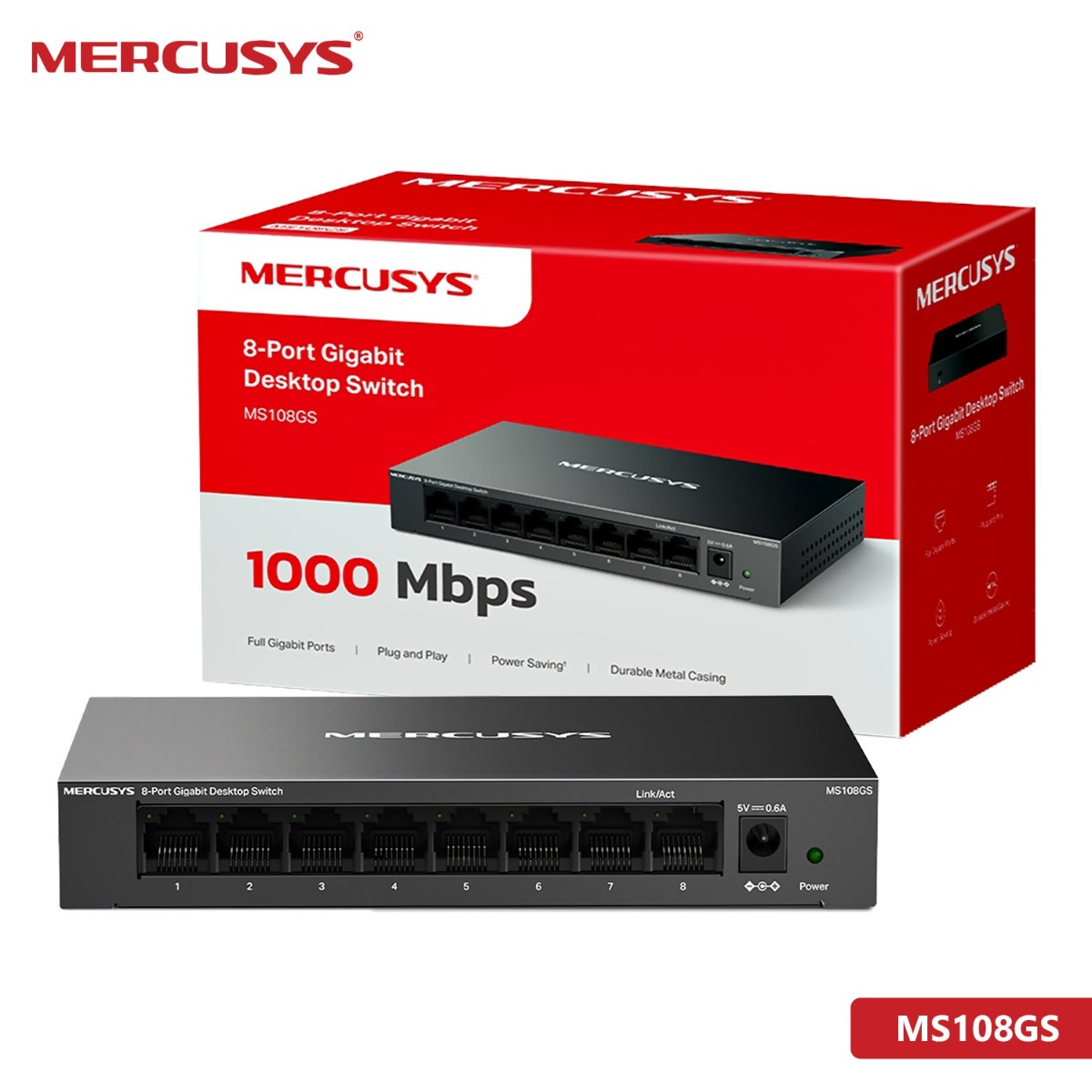

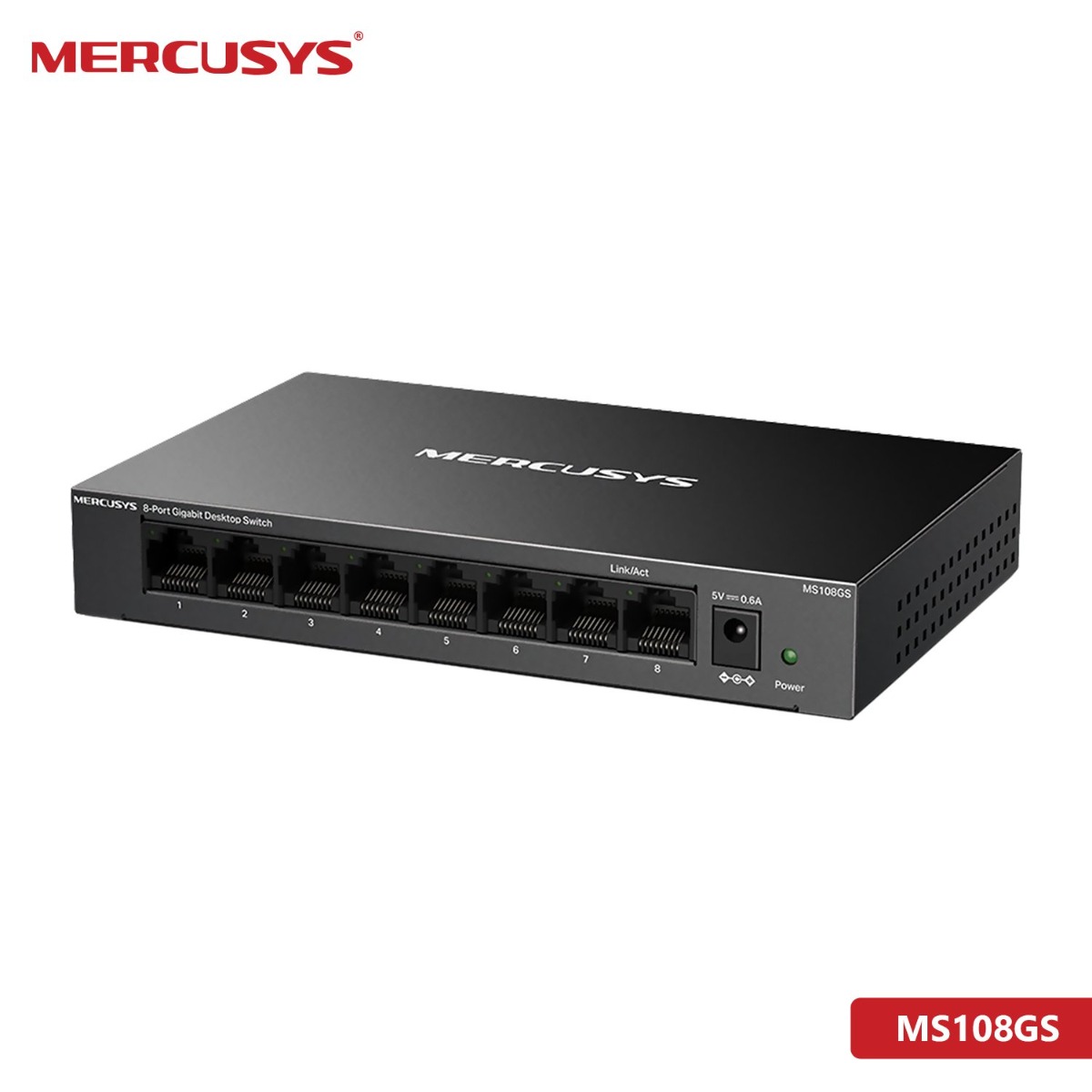

8-Port Gigabit Desktop Switch
Full Gigabit Ports: 8× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
Multiple Installation Operation: Steel housing, desktop or wall-mounting design

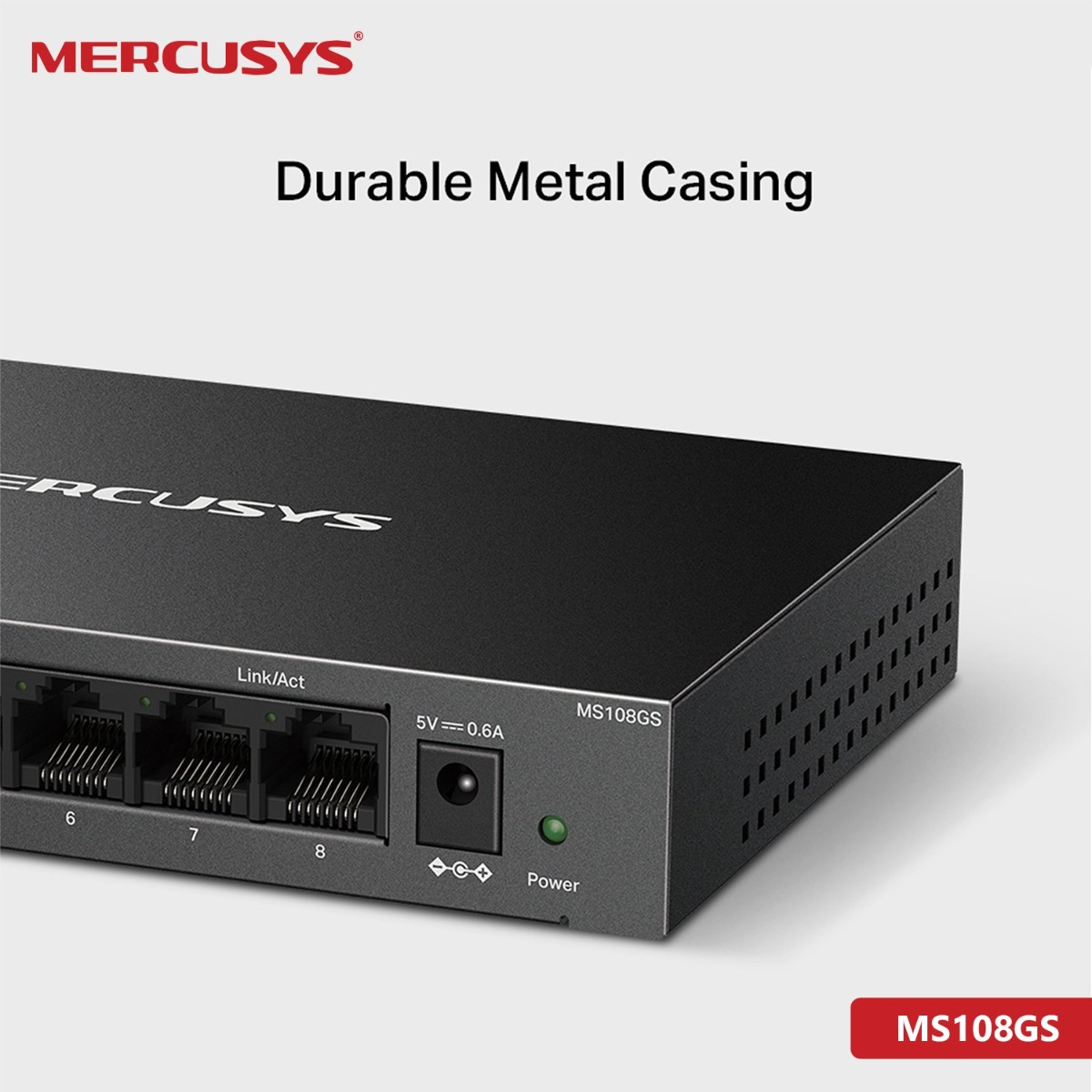

Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
Transfer Method
Store and Forward
Dimensions
157.48×99.06×25.4mm (6.2×3.9×1.0in)
----------------------------------------------------------------------------------------------------
Interfaces
8-Port 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX
----------------------------------------------------------------------------------------------------
External Power Supply
5V/0.6A
----------------------------------------------------------------------------------------------------
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3xCSMA/CD
----------------------------------------------------------------------------------------------------
Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex
----------------------------------------------------------------------------------------------------
Buffer Capacity
4Mbit
----------------------------------------------------------------------------------------------------
Jumbo Frame
15KB
----------------------------------------------------------------------------------------------------
LED
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

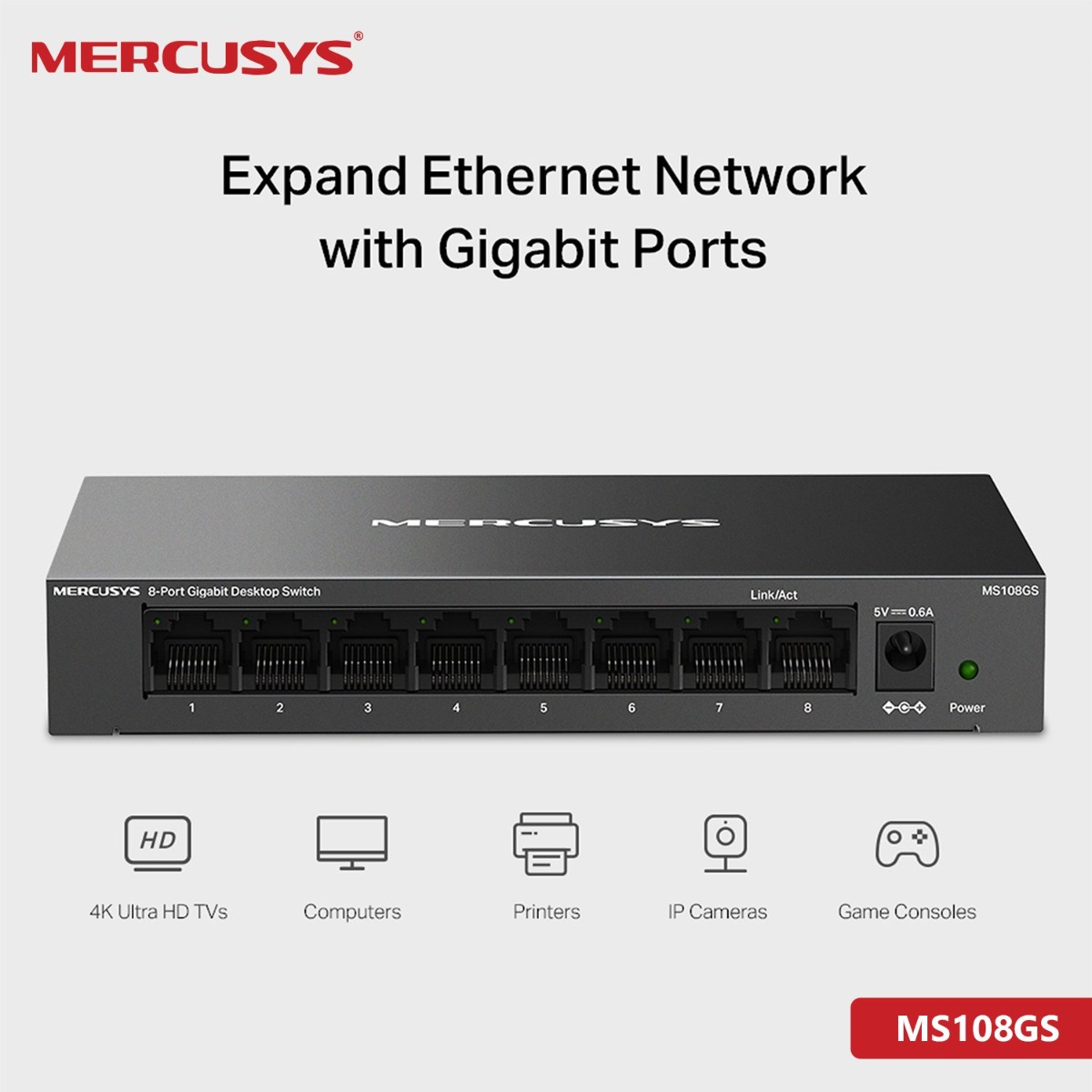

The MS108GS expands your network with 8 high-speed Gigabit ports, delivering speeds up to 10×faster than 10/100 Ethernet. It supports a wide range of devices-4K displays, PCs, printers, security cameras, and gaming consoles-making it suitable for homes, offices, and dorms
Its durable metal casing ensures strong heat dissipation, interference resistance, stable performance, and long service life. The switch also runs silently and supports both desktop placement and wall mounting
With plug-and-play functionality, you can instantly expand your wired network by simply connecting the Ethernet cable-no configuration needed
The device provides reliable, stable performance using Half/Full Duplex, MAC Learning, and thorough factory testing
It also features energy-saving technology that adjusts power use based on connection status and cable length, reducing overall power consumption and environmental impact
Package Contents
8-Port 10/100/1000Mbps Desktop Switch (MS108G)
Power Adapter
Quick Installation Guide
