Brand: MERCUSYS
Model: MS108G
Version: 2

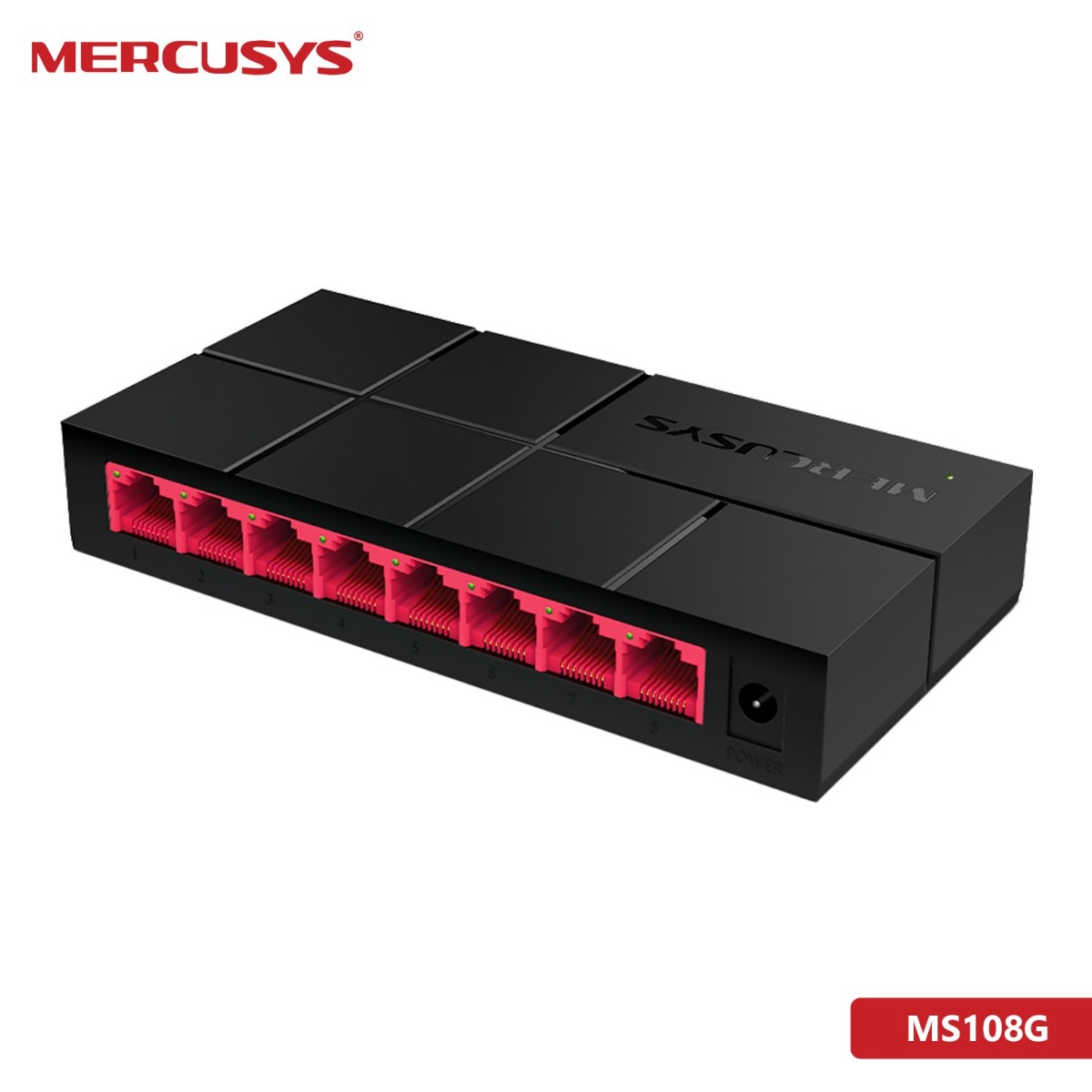

8-Port 10/100/1,000Mbps Desktop Switch – auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required
Green Ethernet technology saves power by up to 82%
Transfer Method
Store and Forward
Dimensions
127×60.3×22mm
----------------------------------------------------------------------------------------------------
Interfaces
8-Port 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX
----------------------------------------------------------------------------------------------------
External Power Supply
9V/0.6A
----------------------------------------------------------------------------------------------------
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3xCSMA/CD
----------------------------------------------------------------------------------------------------
Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex
----------------------------------------------------------------------------------------------------
Buffer Capacity
64KB
----------------------------------------------------------------------------------------------------
Jumbo Frame
16KB
----------------------------------------------------------------------------------------------------
LED
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

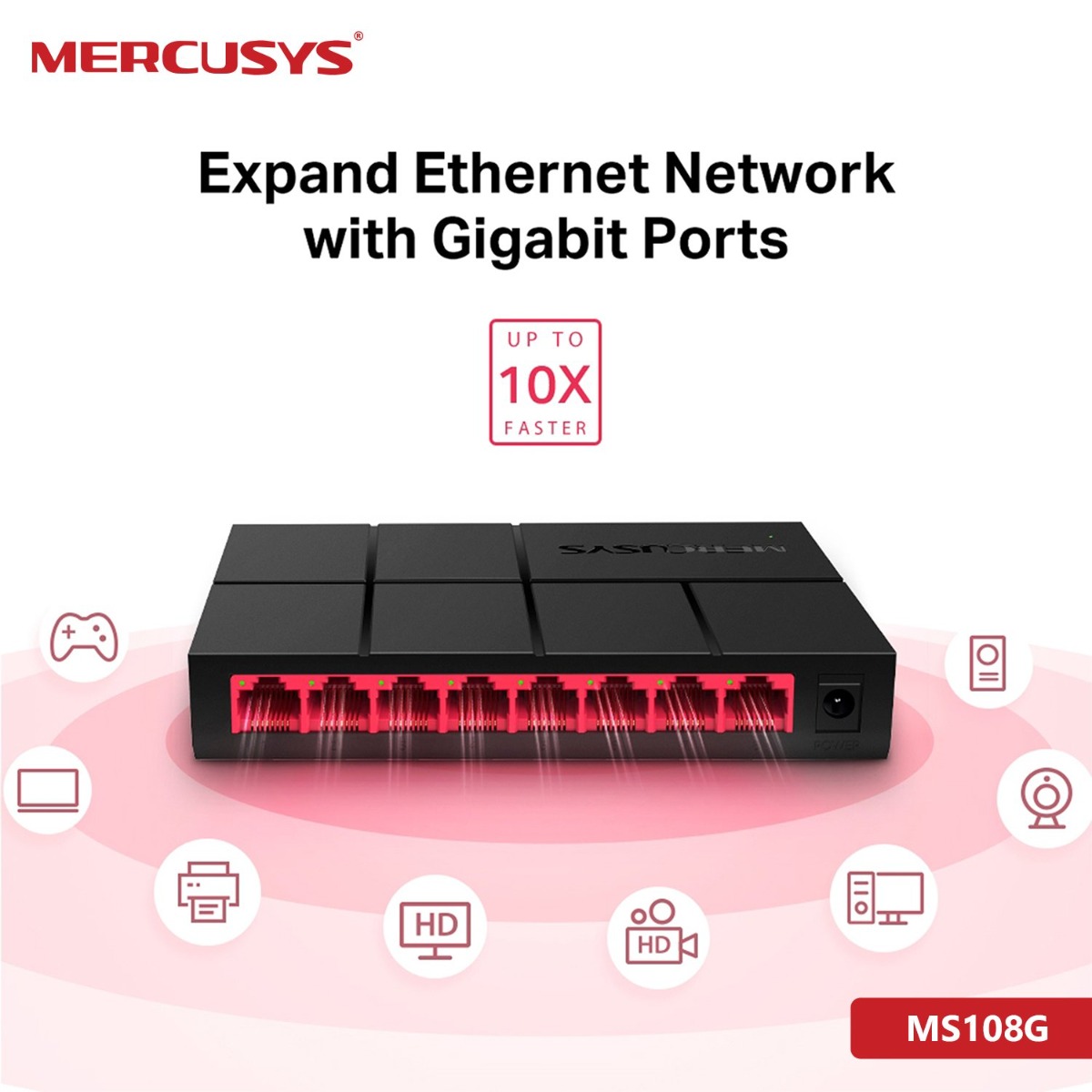

More Efficient Transmission: Equipped with 8× 10/100/1000 Mbps ports, delivering speeds up to 10× faster than standard 10/100 ports. Fully compatible with 4K TVs, computers, printers, IP cameras, and game consoles-ideal for home, small offices, and dorms

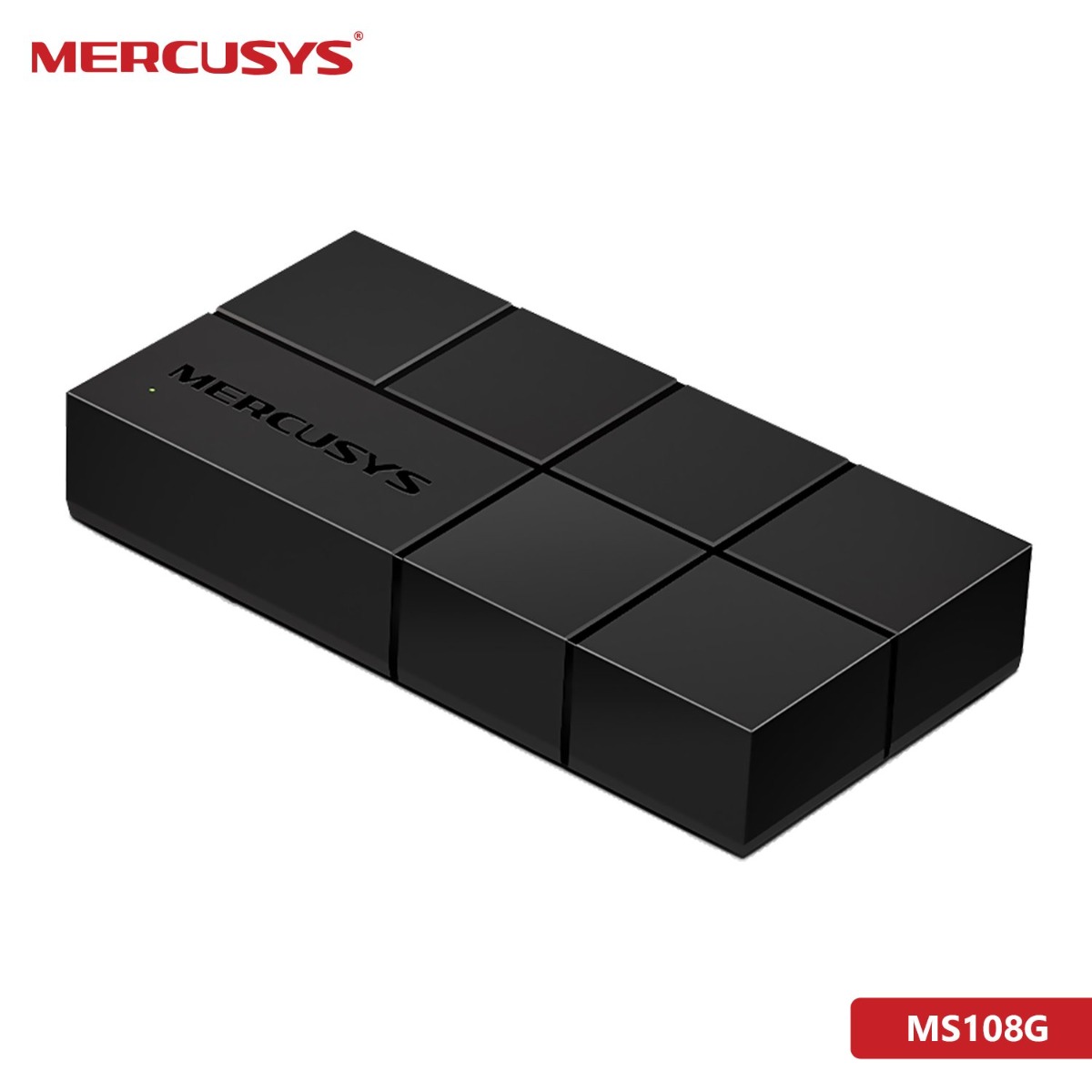

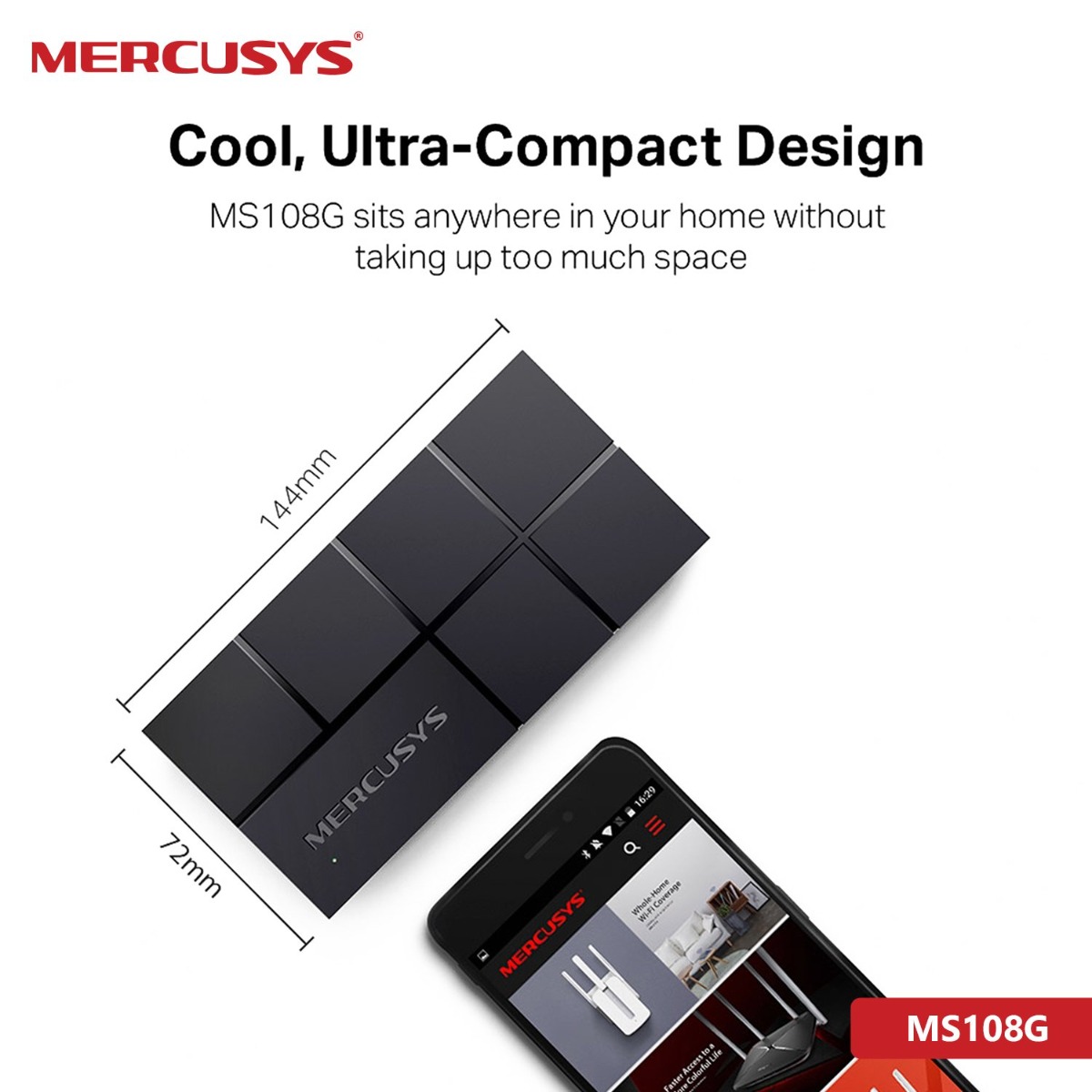

Ultra-Compact, Stylish Design: A sleek red-and-black square body, about the size of a smartphone, fits easily anywhere without taking up space

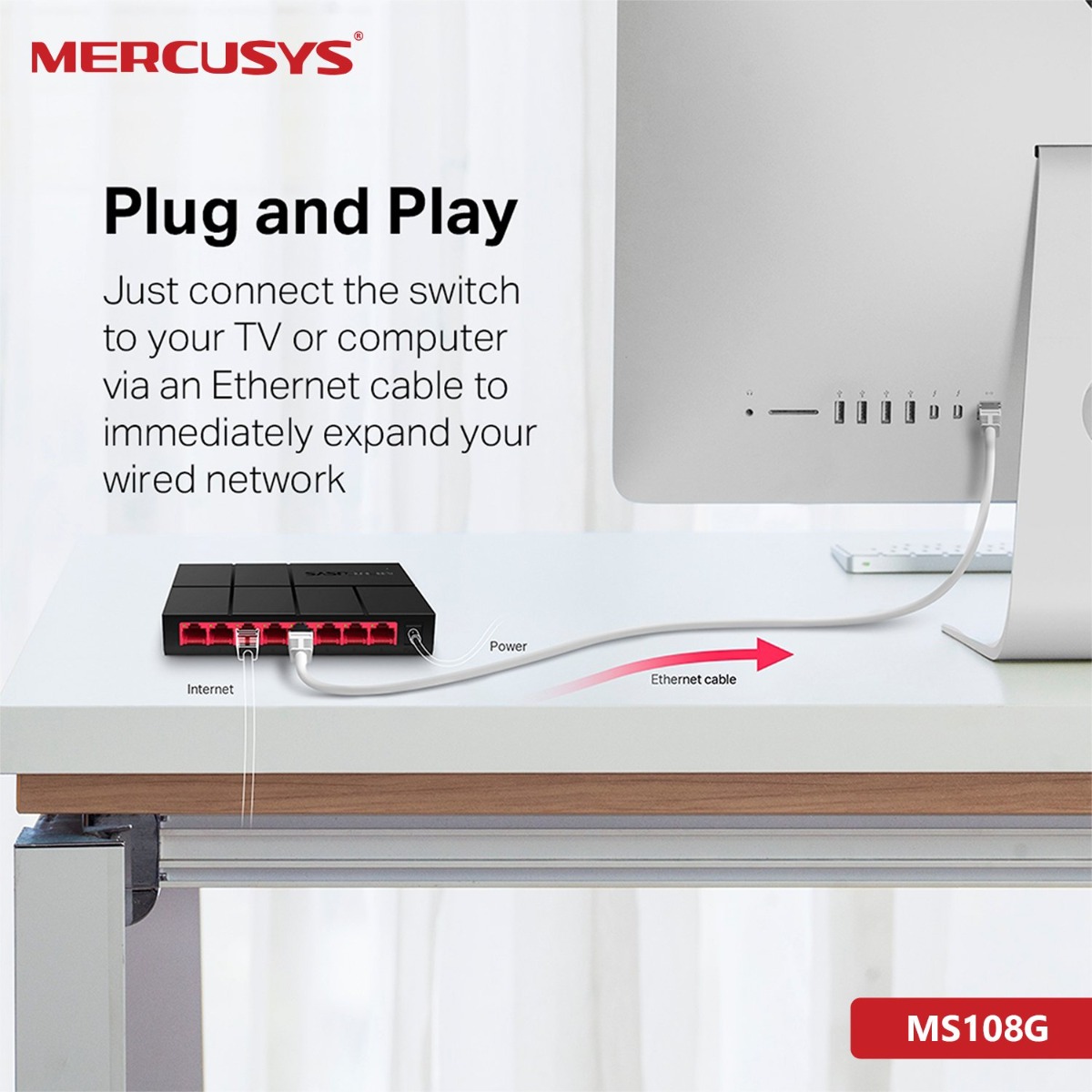

Plug and Play: No configuration needed. Simply connect via an Ethernet cable to instantly expand your wired network
Reliable Performance: Built with Half/Full Duplex and MAC Address Learning Technology and tested rigorously to ensure stable, long-term performance
Energy-Efficient: Uses Green Ethernet technology to reduce power consumption by automatically adjusting based on link status and cable length, helping lower your network’s carbon footprint

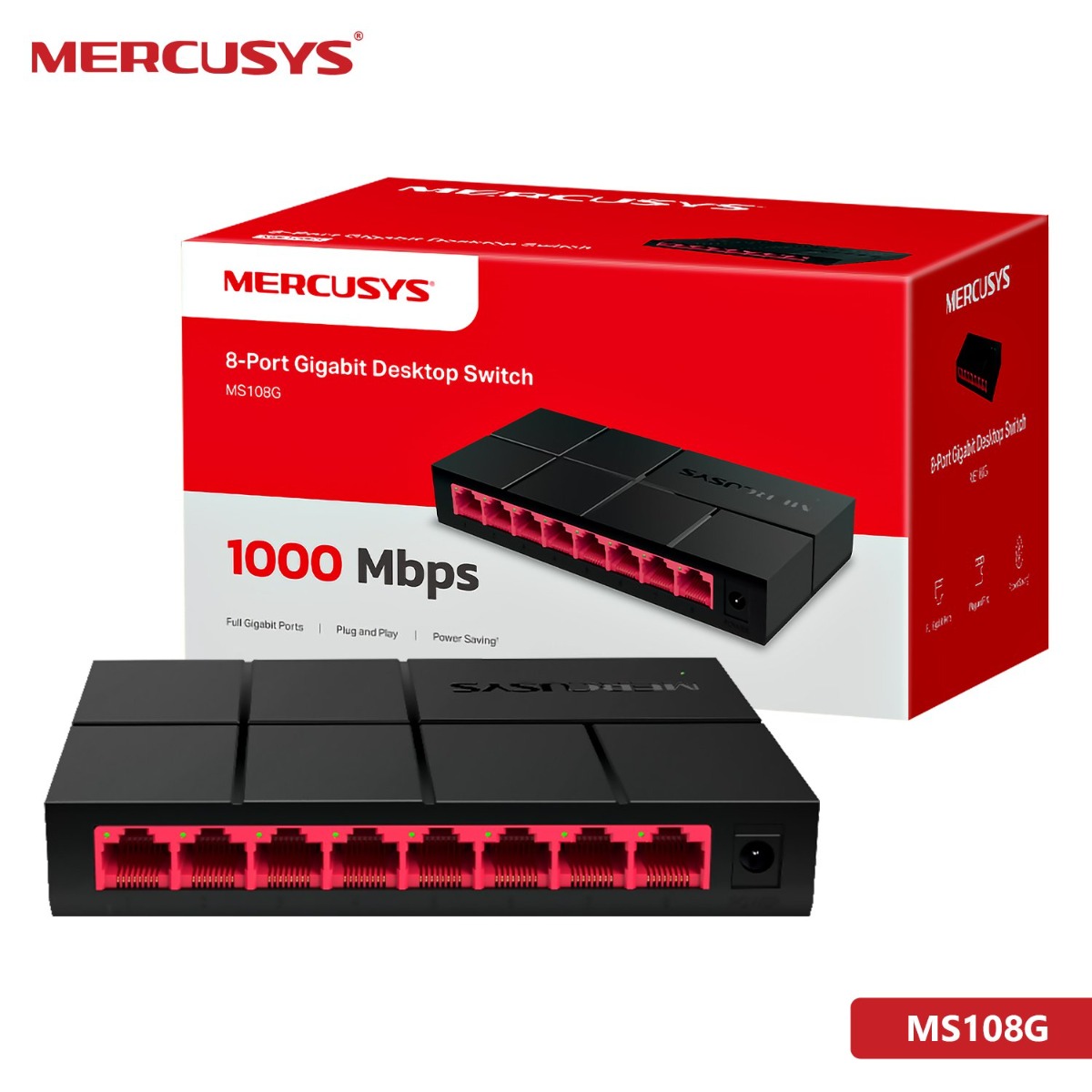

Package Contents
8-Port 10/100/1000Mbps Desktop Switch (MS108G)
Power Adapter
Quick Installation Guide
