Brand: TP-Link
Model: Archer MR600
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

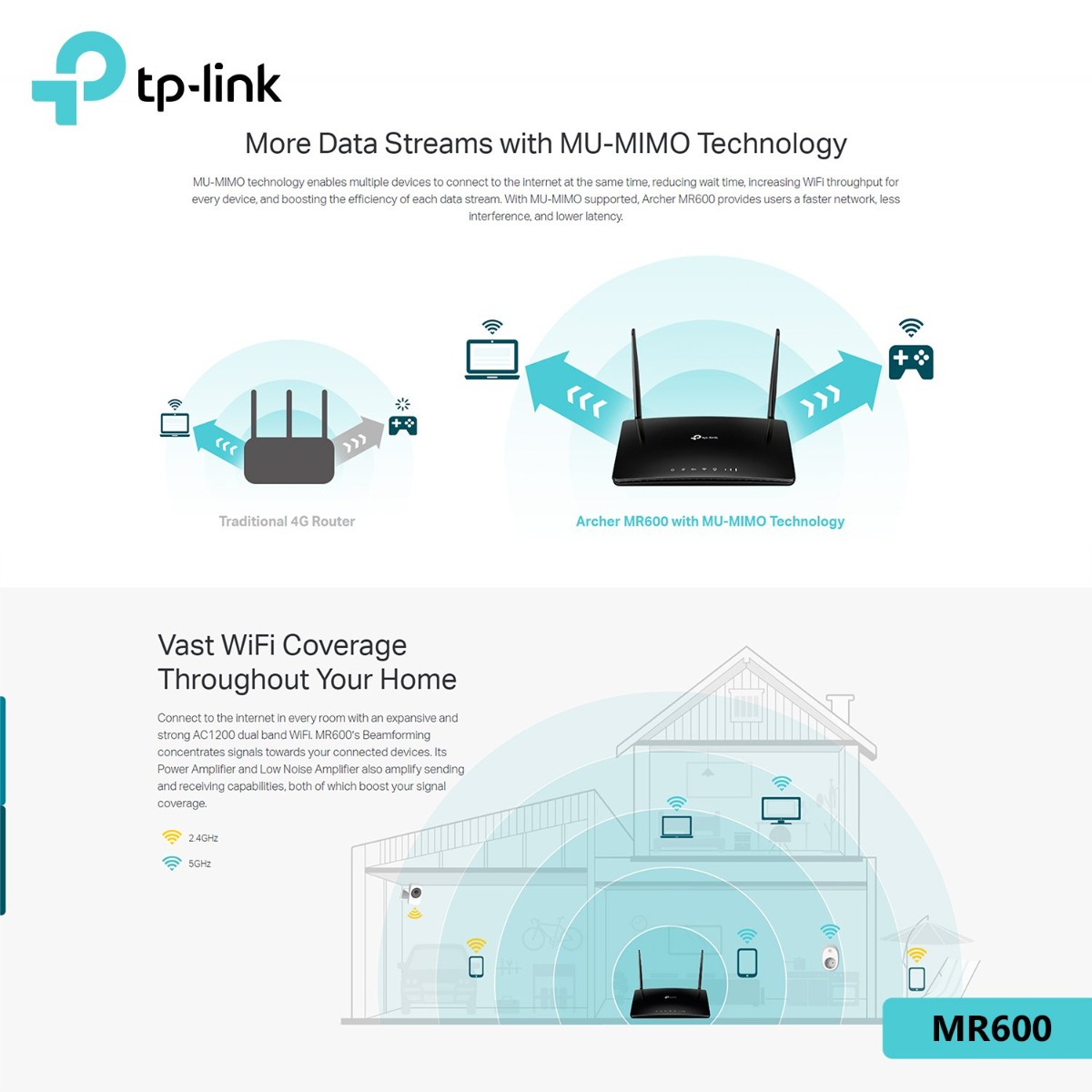

MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency
Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas

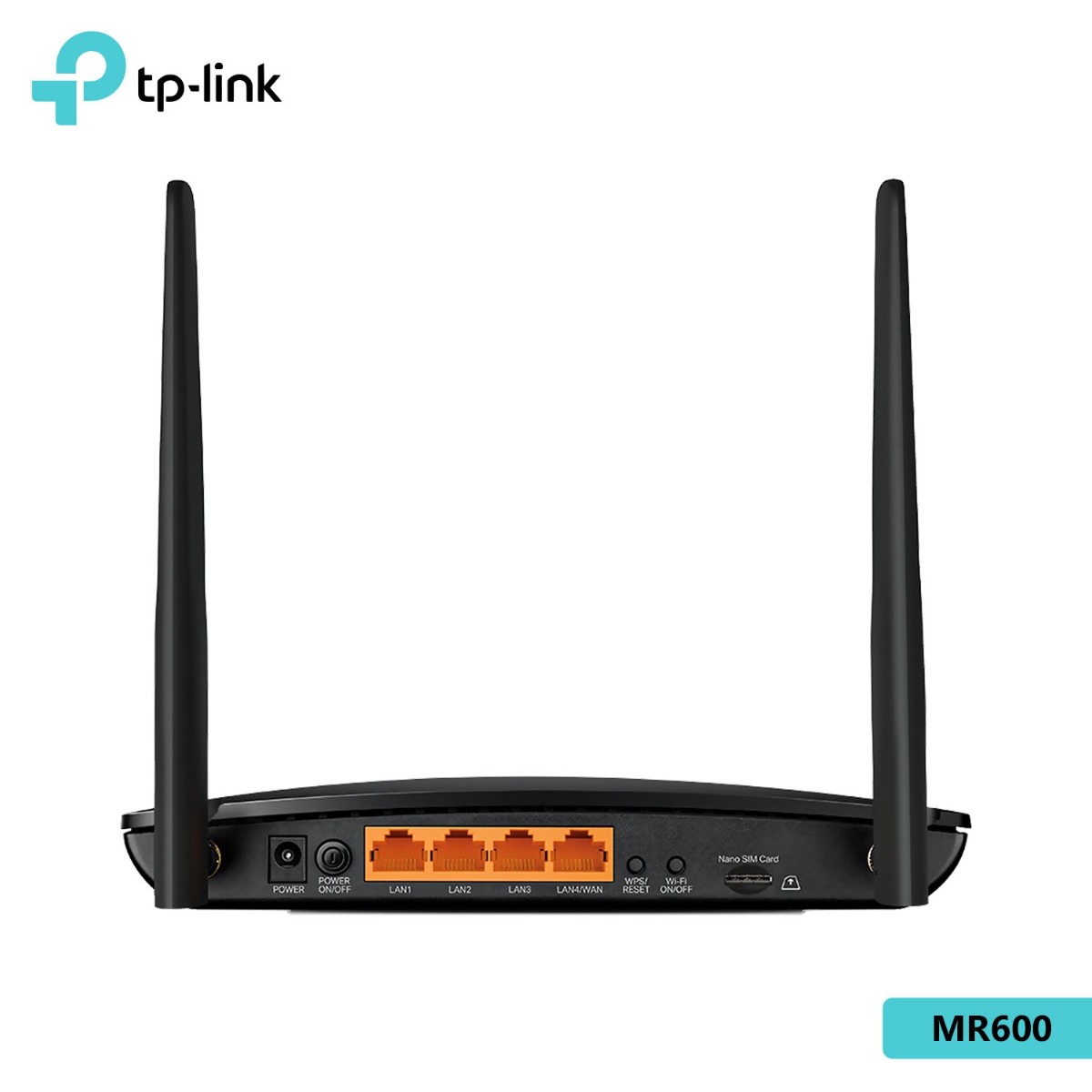

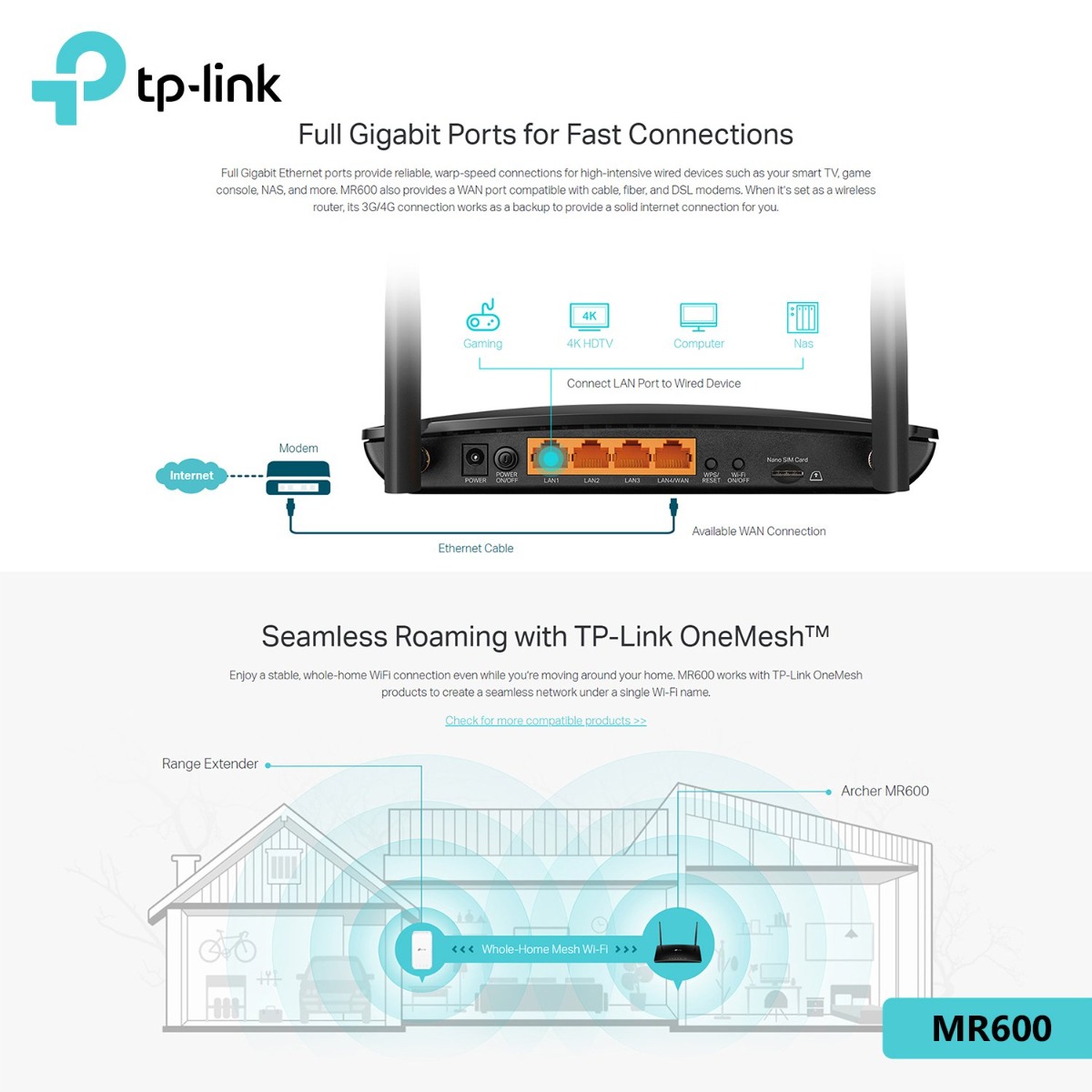

Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Easy setup and management all by Tether app
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz and 5GHz
----------------------------------------------------------------------------------------------------
Signal Rate (WiFi Speeds)
300Mbps at 2.4GHz, 867Mbps at 5GHz
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHz
11a 54M: -77 dBm
11ac HT20: -73 dBm
11ac HT40: -68 dBm
11ac HT80 : -64 dBm
11n HT20: -77 dBm
11n HT40: -73 dBm
2.4GHz
11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm
----------------------------------------------------------------------------------------------------
Transmission Power
2.4GHz < 20dBm
5GHz < 23dBm
----------------------------------------------------------------------------------------------------
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
----------------------------------------------------------------------------------------------------
WAN Failover
Yes
----------------------------------------------------------------------------------------------------
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
----------------------------------------------------------------------------------------------------
Network Type
:4G
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
:3G
DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Carrier Aggregation:
B1+B3/B5/B7/B8/B20
B3+B1/B3/B5/B7/B8/B20/B28/B38/B40
B5+B1/B3/B5/B7/B40
B7+B1/B3/B5/B7/B8/B20/B28
B8+B1/B3/B7
B20+B1/B3/B7
B28+B3/B7/B40
B38+B38
B40+B40
B41+B41
Protocols
Supports IPv4 and IPv6
----------------------------------------------------------------------------------------------------
Quality of Service
Bandwidth Control
----------------------------------------------------------------------------------------------------
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
----------------------------------------------------------------------------------------------------
Management
TP-Link Cloud, Local Management, Remote Management
----------------------------------------------------------------------------------------------------
DHCP
Server, DHCP Client List, Address Reservation
----------------------------------------------------------------------------------------------------
Port Forwarding
ALG, Virtual Server, Port Triggering, UPnP, DMZ
----------------------------------------------------------------------------------------------------
Dynamic DNS
TP-Link, DynDns, NO-IP
----------------------------------------------------------------------------------------------------
Firewall Security
DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
----------------------------------------------------------------------------------------------------
Guest Network
2.4GHz guest network × 1, 5GHz guest network × 1
----------------------------------------------------------------------------------------------------
VPN Server
PPTP VPN, OpenVPN
----------------------------------------------------------------------------------------------------
Access Control
Parental Control, Local Management Control
Dimensions (WxDxH)
202×141×33.6mm (7.95×5.55×1.32in)
----------------------------------------------------------------------------------------------------
Interfaces
1×10/100/1000 Mbps LAN/WAN Port, 3×10/100/1000 Mbps LAN Ports, 1×Nano SIM Card Slot
----------------------------------------------------------------------------------------------------
Button
WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
----------------------------------------------------------------------------------------------------
External Power Supply
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter: 12V DC 1.5A
----------------------------------------------------------------------------------------------------
Antenna
2 × Detachable 4G LTE Antennas
Certification
CE, RoHS
----------------------------------------------------------------------------------------------------
Package Content
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
