نظرة عامة على المنتج
Brand: TP-Link
Model: RE330
AC1200 Mesh Wi-Fi Extender
Eliminate weak signal areas with whole home Wi-Fi coverage
2.4GHz (300Mbps) and 5GHz (867Mbps) dual-band Wi-Fi connection ensures more stable wireless experience
Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage
Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI
Works with any Wi-Fi router or wireless access point
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz & 5GHz(11ac)
----------------------------------------------------------------------------------------------------
Signal Rate
300Mbps at 2.4GHz
867Mbps at 5GHz
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHz
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4GHz
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBm
----------------------------------------------------------------------------------------------------
Transmission Power
2.4GHz ≤20dBm, 5GHz ≤30dBm
----------------------------------------------------------------------------------------------------
Working Modes
Range Extender/Access Point
----------------------------------------------------------------------------------------------------
Wireless Security
64/128-bit WEP
WPA-PSK/WPA2-PSK encryptions
----------------------------------------------------------------------------------------------------
Wireless Functions
Enable/Disable Wireless Radio
Wireless Statistics
Standards and Protocols
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Plug Type
EU
----------------------------------------------------------------------------------------------------
Interface
1×10/100Mbps Ethernet Port (RJ45)
----------------------------------------------------------------------------------------------------
Button
WPS Button, Reset Button
----------------------------------------------------------------------------------------------------
Input Power
100-240V~50/60Hz
----------------------------------------------------------------------------------------------------
Max. Power Consumption
9.5W
----------------------------------------------------------------------------------------------------
Dimensions (W×D×H)
2.7×1.4×4.9in(69.5×35.0×124.1mm)
----------------------------------------------------------------------------------------------------
Antenna
2×Internal Antennas

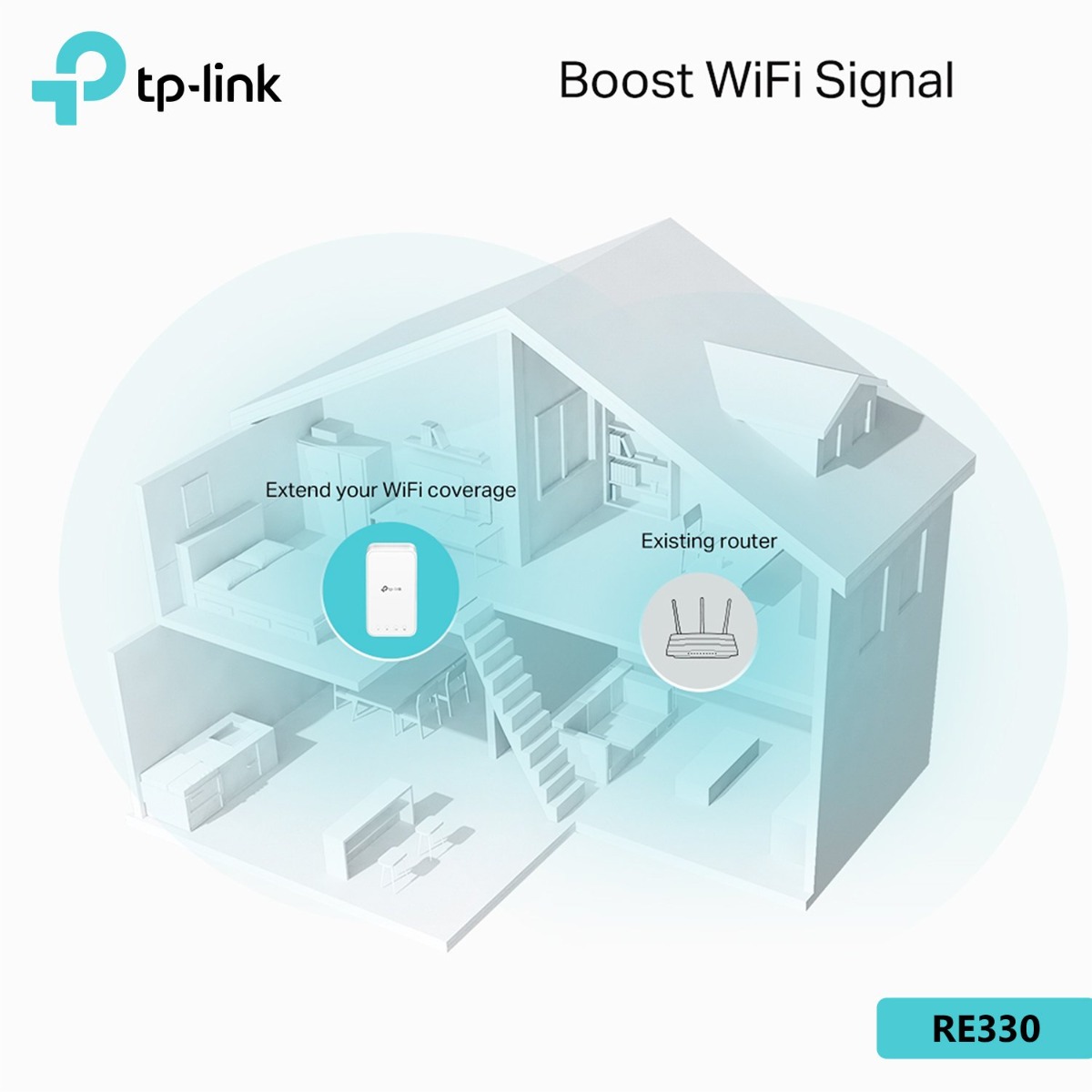

Expand WiFi to Every Room: RE330 boosts your existing router’s signal to eliminate dead zones and deliver stable AC1200 WiFi coverage throughout your home.
:Fast Dual-Band WiFi
867Mbps (5GHz) for HD streaming and gaming.
300Mbps (2.4GHz) for browsing and general use.
Supports more devices at the same time with improved performance.

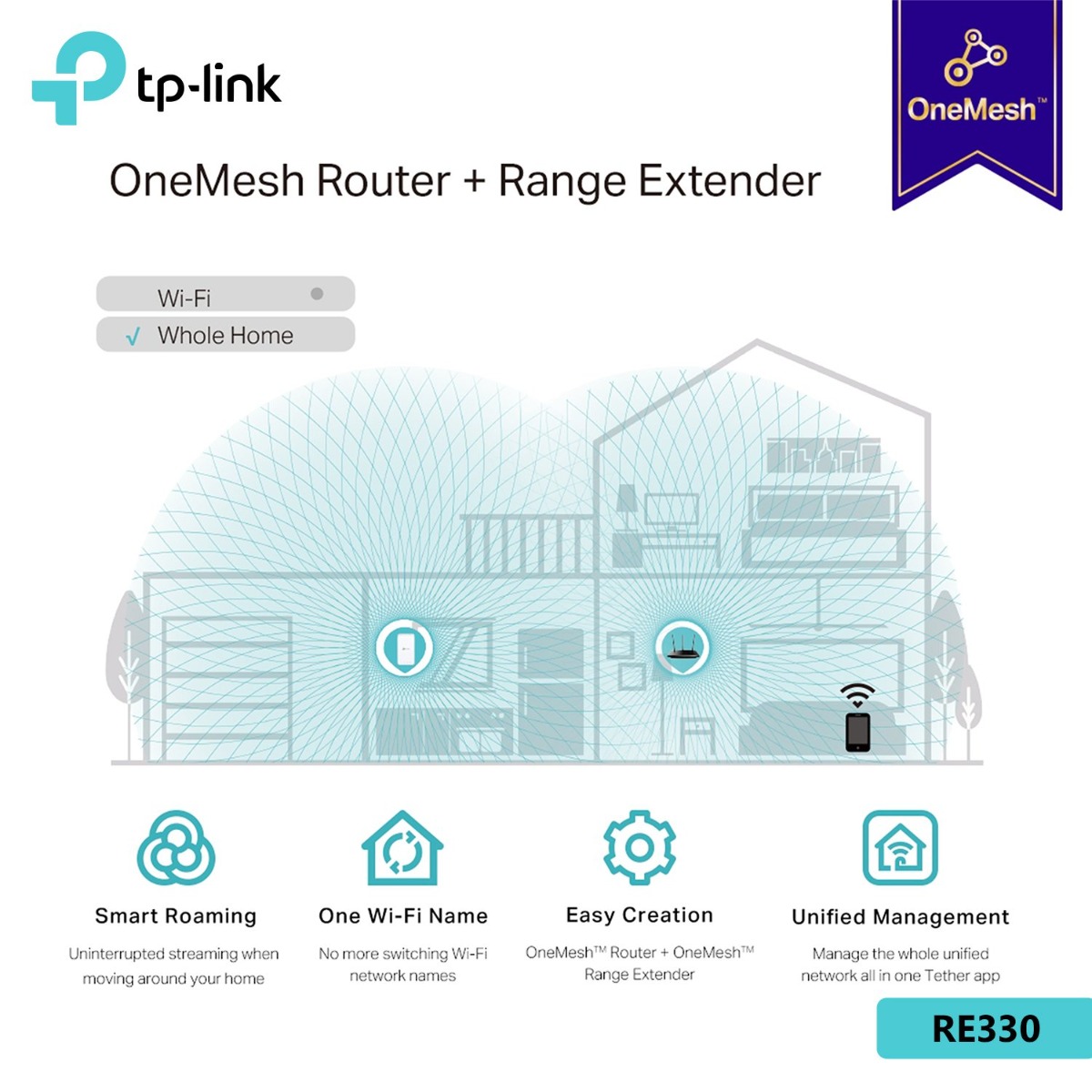

:OneMesh™ Technology
Creates a seamless Mesh network with a single Wi-Fi name.
Smart Roaming: uninterrupted connection when moving around your home.
Unified Management: control the entire network via the Tether app
No need to replace your router—just update it to a OneMesh-supported firmware and connect RE330.
Adaptive Path Selection: Automatically chooses the fastest connection path to your router for maximum speed and stability, especially in busy network environments
Built-in Access Point Mode: Turn any wired internet connection into a dual-band 2×2 MIMO WiFi access point using the Ethernet port
Easy Setup & Control: Quick setup and full management through the TP-Link Tether app (Android & iOS)
Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP
App management
Manage and configure device through app
Port: 20001 Protocol: TCP
Port: 20002 Protocol: UDP
----------------------------------------------------------------------------------------------------
Certification
FCC, RoHS
----------------------------------------------------------------------------------------------------
Package Content
AC1200 Wi-Fi Range Extender RE330
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
