نظرة عامة على المنتج
Brand: TP-Link

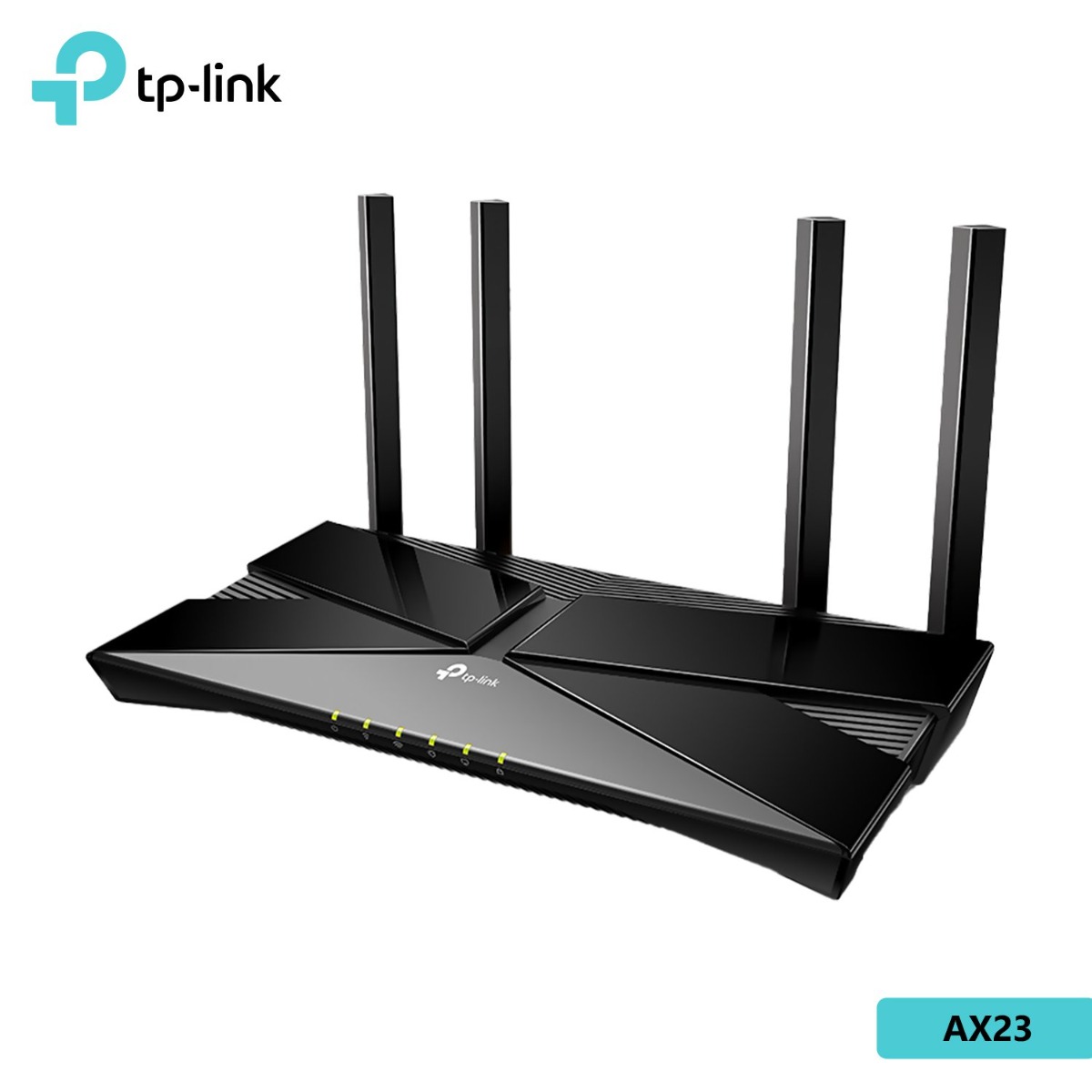

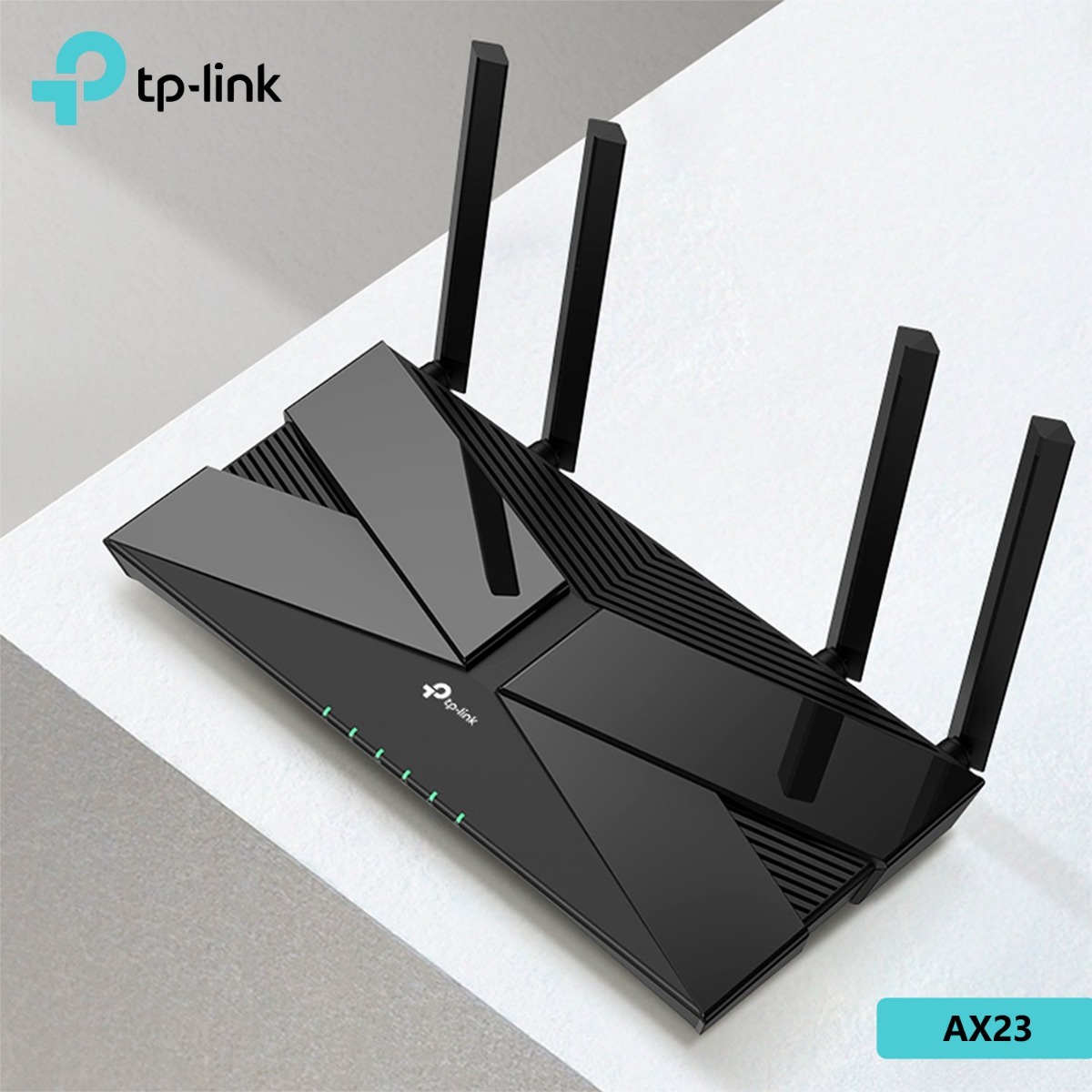

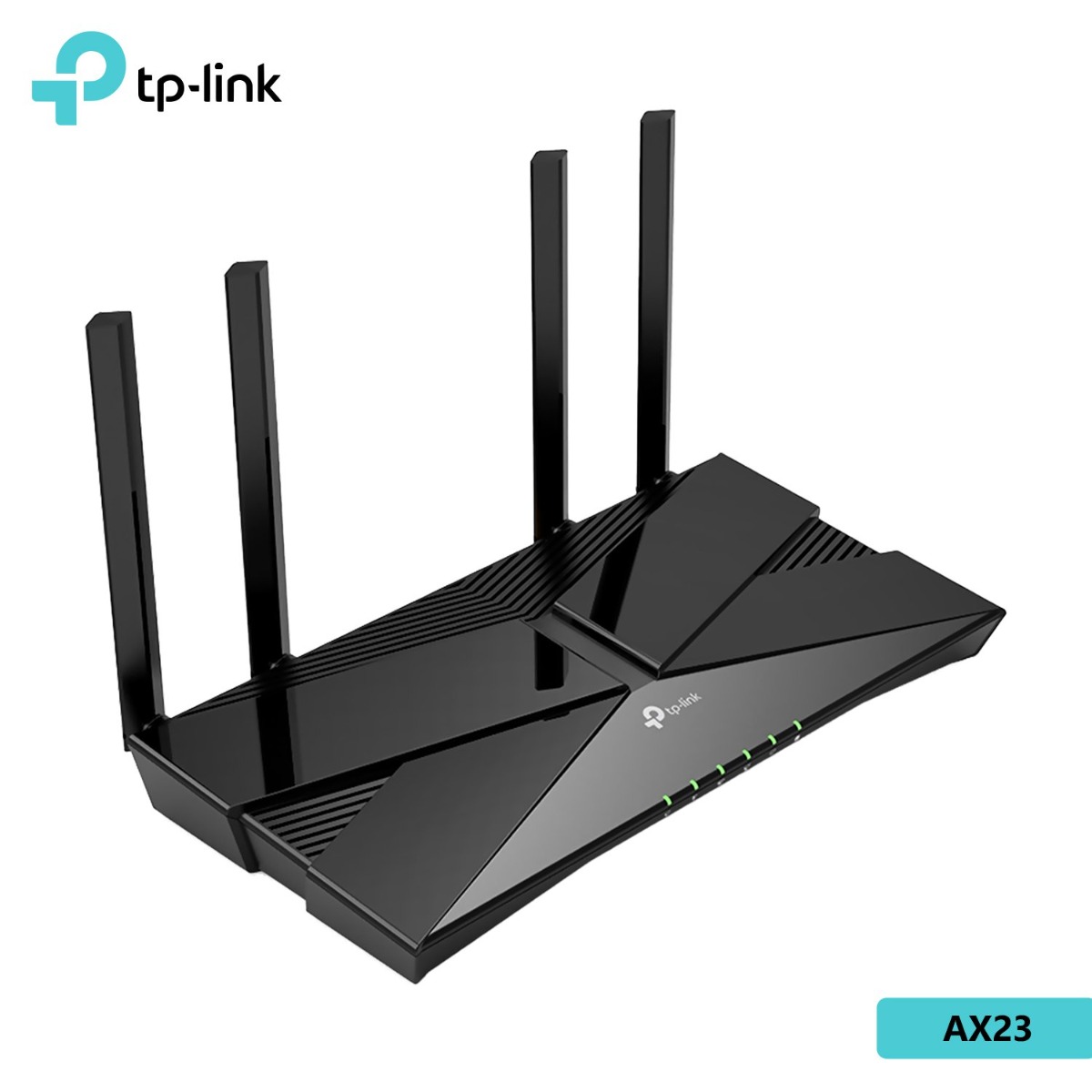

Model: AX23
AX1800 Dual-Band Wi-Fi 6 Router
Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8Gbps
Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag
Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance
Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption
Parental Controls – Enjoy the most versatile yet free parental controls feature among all routers, including URL blocking, profile management, pausing, and more
Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract
EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App
Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices
Standards and Protocols: Wi-Fi 6
IEEE 802.11ax/ac/n/a 5GHz
IEEE 802.11ax/n/b/g 2.4GHz
----------------------------------------------------------------------------------------------------
Wi-Fi Speeds: AX1800
5GHz: 1201Mbps (802.11ax)
2.4GHz: 574Mbps (802.11ax)
----------------------------------------------------------------------------------------------------
Wi-Fi Range: 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
----------------------------------------------------------------------------------------------------
Wi-Fi Capacity: High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth
----------------------------------------------------------------------------------------------------
Wi-Fi Reception Sensitivity
EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
----------------------------------------------------------------------------------------------------
Wi-Fi Transmission Power
CE
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.25GHz)
FCC
<30dBm(2.4GHz & 5.15GHz~5.825GHz)
----------------------------------------------------------------------------------------------------
Working Modes
Router Mode
Access Point Mode
Protocols
IPv4 , IPv6
----------------------------------------------------------------------------------------------------
OneMesh™
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products
----------------------------------------------------------------------------------------------------
EasyMesh
Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability
----------------------------------------------------------------------------------------------------
Parental Controls
URL Filtering
Time Controls
----------------------------------------------------------------------------------------------------
WAN Types
Dynamic IP , Static IP , PPPoE , PPTP , L2TP
----------------------------------------------------------------------------------------------------
Quality of Service
QoS by Device
----------------------------------------------------------------------------------------------------
Cloud Service
OTA Firmware Upgrade, TP-Link ID, DDNS
----------------------------------------------------------------------------------------------------
NAT Forwarding
Port Forwarding , Port Triggering , DMZ , UPnP
----------------------------------------------------------------------------------------------------
IPTV
IGMP Proxy , IGMP Snooping , Bridge , Tag VLAN
----------------------------------------------------------------------------------------------------
DHCP
Address Reservation , DHCP Client List , Server
----------------------------------------------------------------------------------------------------
DDNS
TP-Link , NO-IP , DynDNS
----------------------------------------------------------------------------------------------------
Management
Tether App , Webpage
Dimensions (W×D×H)
10.2×5.3×1.5in(260.2×135.0×38.6mm)
----------------------------------------------------------------------------------------------------
Package Contents
Wi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
----------------------------------------------------------------------------------------------------

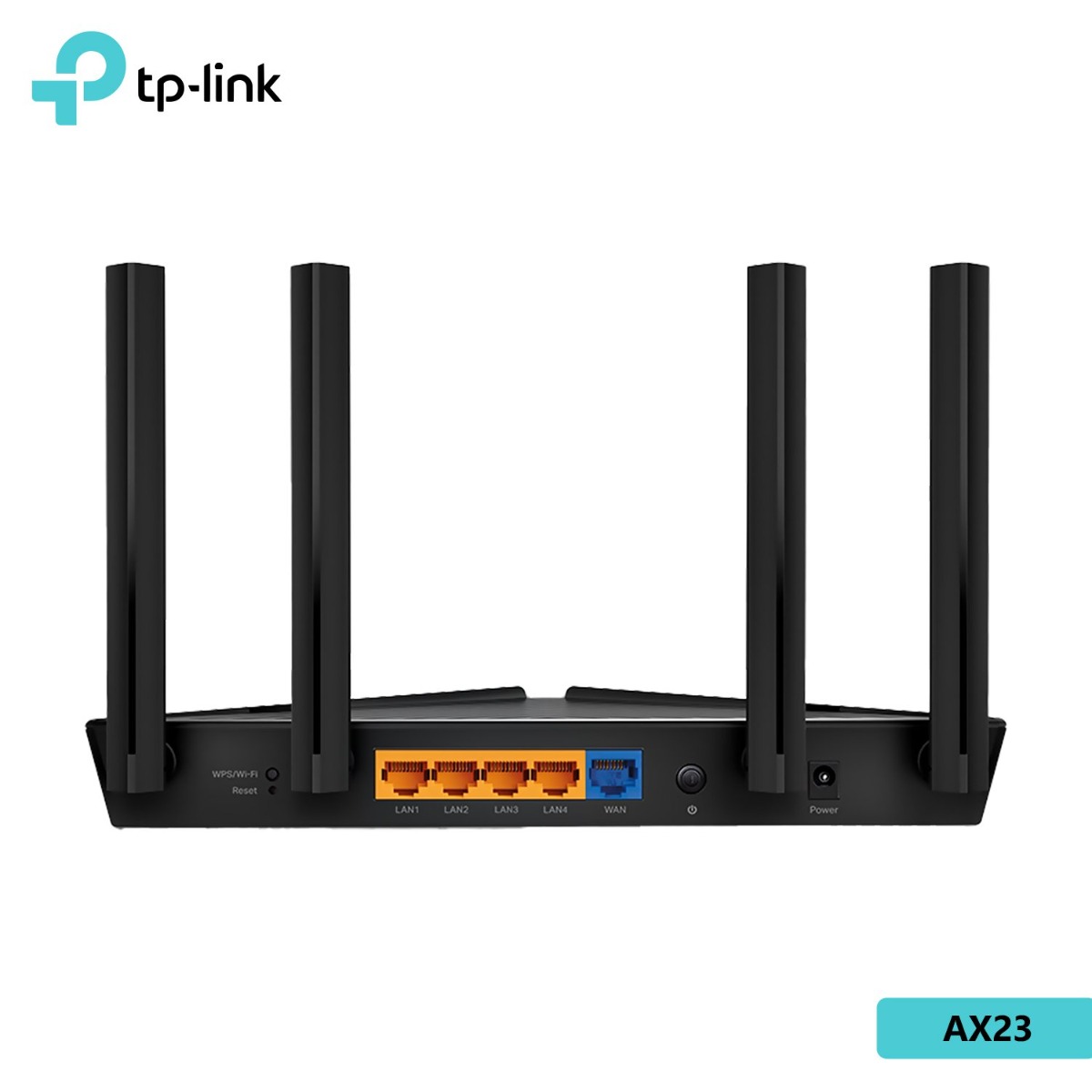

Ethernet Ports
1×Gigabit WAN Port
4×Gigabit LAN Ports
----------------------------------------------------------------------------------------------------
Buttons
WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
----------------------------------------------------------------------------------------------------
Power
EU Version: 12V⎓1A
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
----------------------------------------------------------------------------------------------------
Guest Network
1×5GHz Guest Network
1×2.4GHz Guest Network
----------------------------------------------------------------------------------------------------
VPN Server
OpenVPN
PPTP
----------------------------------------------------------------------------------------------------
VPN Client
OpenVPN Client
PPTP VPN Client
WireGuard VPN Client
----------------------------------------------------------------------------------------------------
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Services/Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
DNS
Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP
App management
Manage and configure device through app
Port: 20001 Protocol: TCP
Port: 30001 Protocol: TCP
Port: 20002 Protocol: UDP
----------------------------------------------------------------------------------------------------
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
----------------------------------------------------------------------------------------------------
Certifications
FCC, CE, RoHS
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
