نظرة عامة على المنتج
Brand: TP-Link
Model: Archer T600U Nano

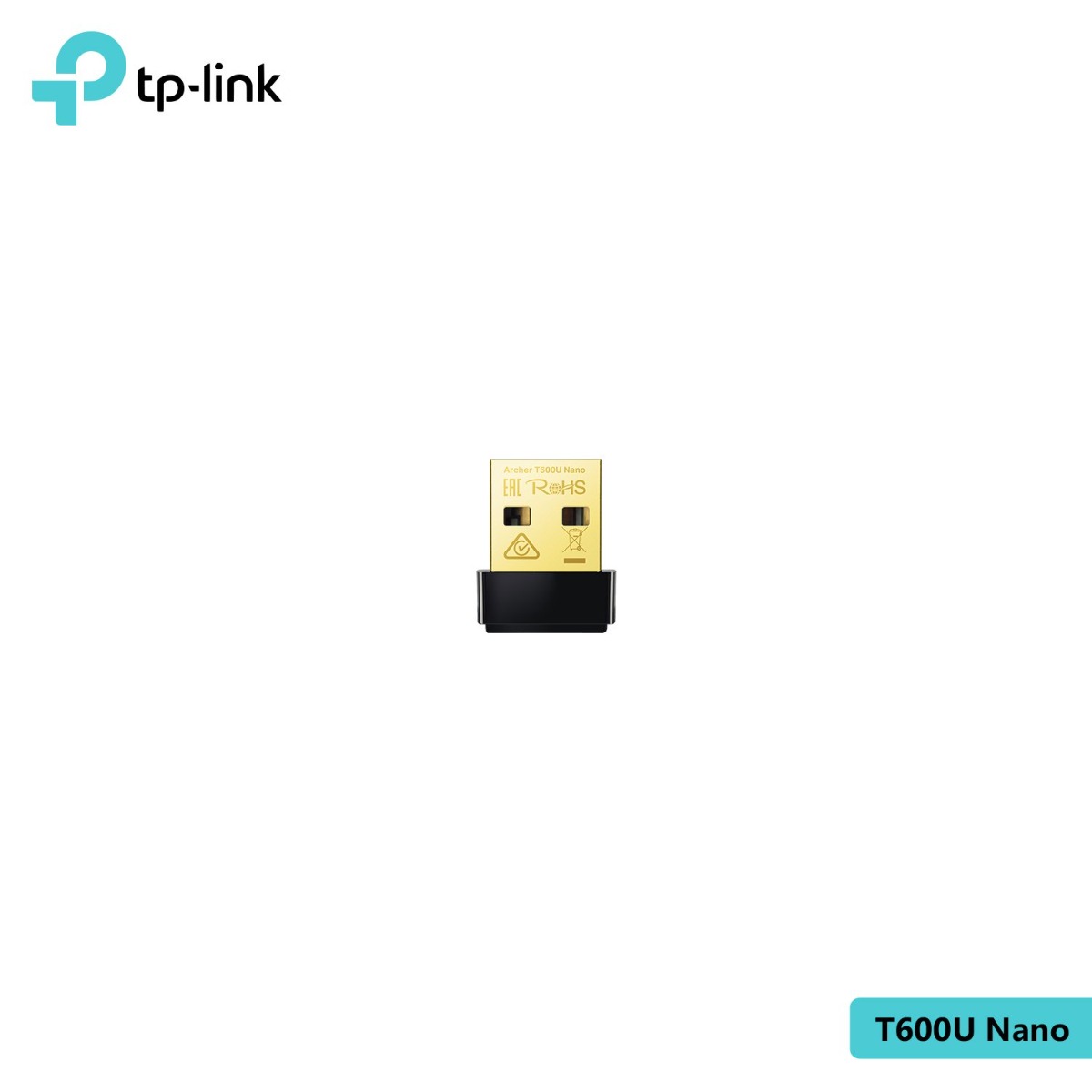

AC600 Nano Wireless USB Adapter
High Speed Wi-Fi – Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds
Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range
Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there
Operating System – Supports Windows 10/8.1/8/7/XP, Mac OS X
Advanced Security – Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
Wireless Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz, 5GHz
----------------------------------------------------------------------------------------------------
Signal Rate
5GHz
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 200Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHz
11a 6Mbps: -90dBm
11a 54Mbps: -73dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -70dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -67dBm
11ac VHT80 MCS0: -82dBm
11ac VHT80 MCS9: -56dBm
2.4GHz
11b 1Mbps: -96dBm
11b 11Mbps: -88dBm
11g 6Mbps: -89dBm
11g 54Mbps: -74dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -72dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -66dBm
----------------------------------------------------------------------------------------------------
Transmit Power
<20dBm (EIRP)
----------------------------------------------------------------------------------------------------
Wireless Modes
Ad-Hoc / Infrastructure mode
----------------------------------------------------------------------------------------------------
Wireless Security
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
----------------------------------------------------------------------------------------------------
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Interface
USB 2.0
----------------------------------------------------------------------------------------------------

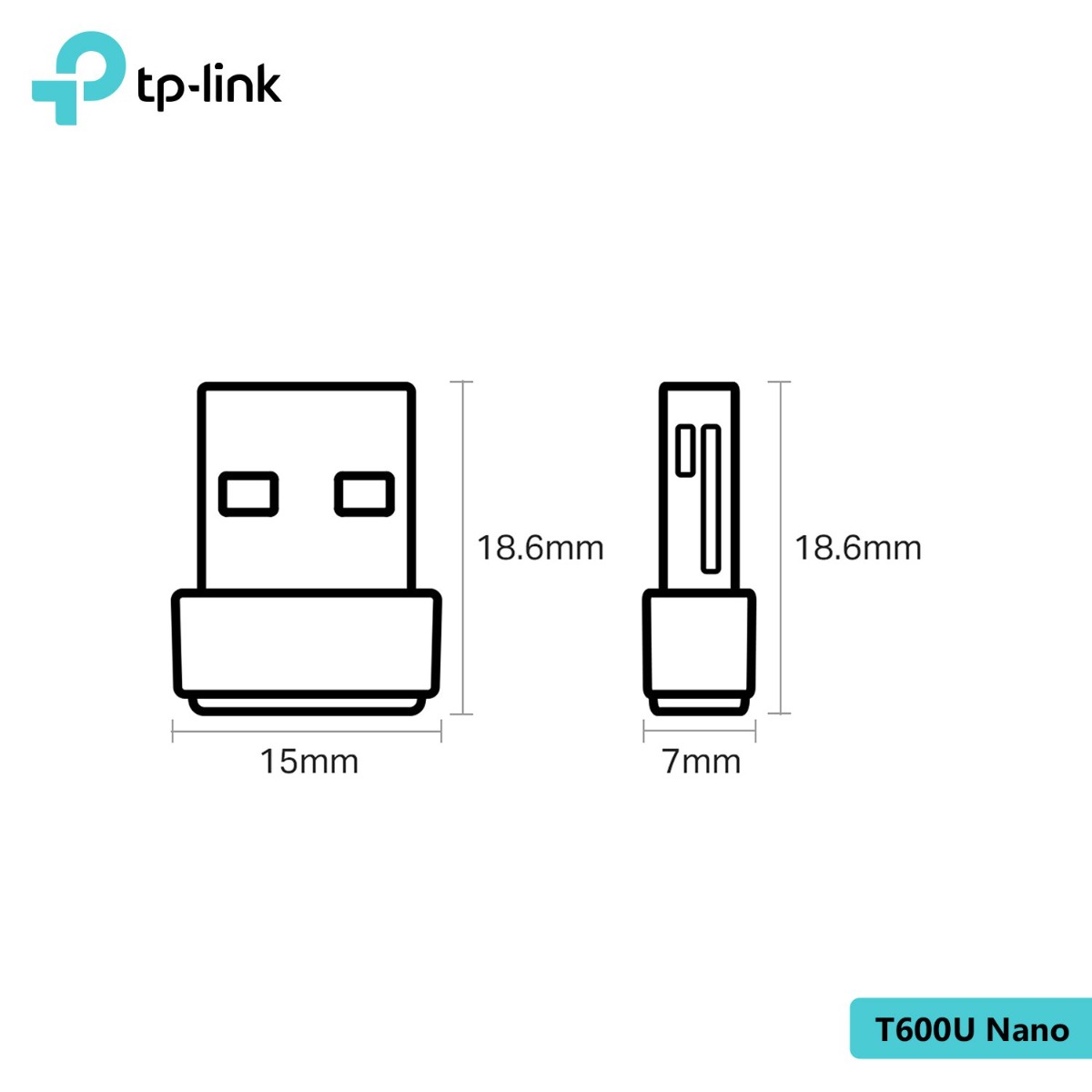

Dimensions (WxDxH)
(15×7.1×18.6)mm
----------------------------------------------------------------------------------------------------
Antenna
Omni Directional
Certification
CE, FCC, RoHS
----------------------------------------------------------------------------------------------------
Package Contents
AC600 Nano Wireless USB Adapter Archer T600U Nano
Resource CD
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Windows 10/8.1/8/7/XP (32/64bits), Mac OS X 10.9-10.13
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
