نظرة عامة على المنتج
Brand: MERCUSYS

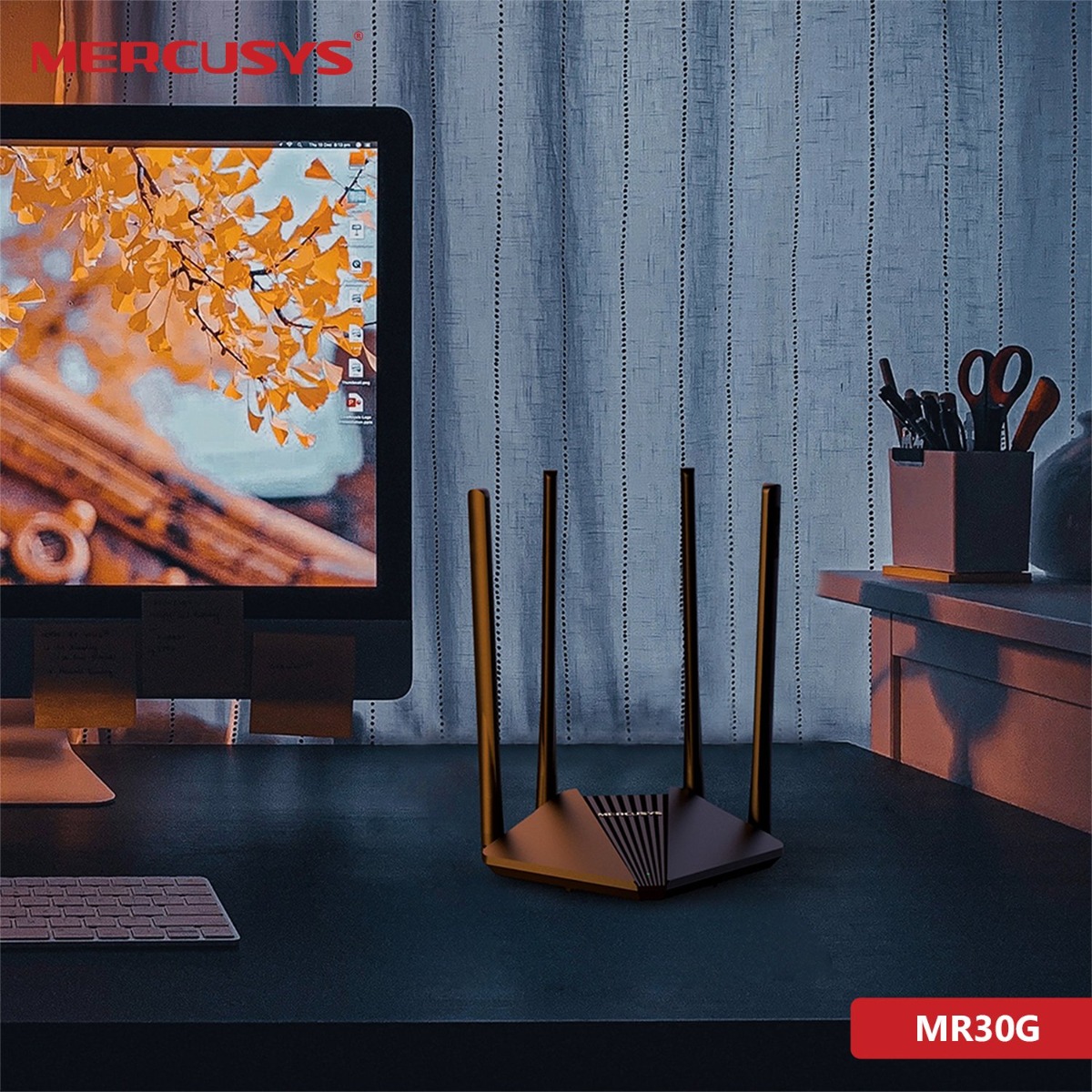

Model: MR30G

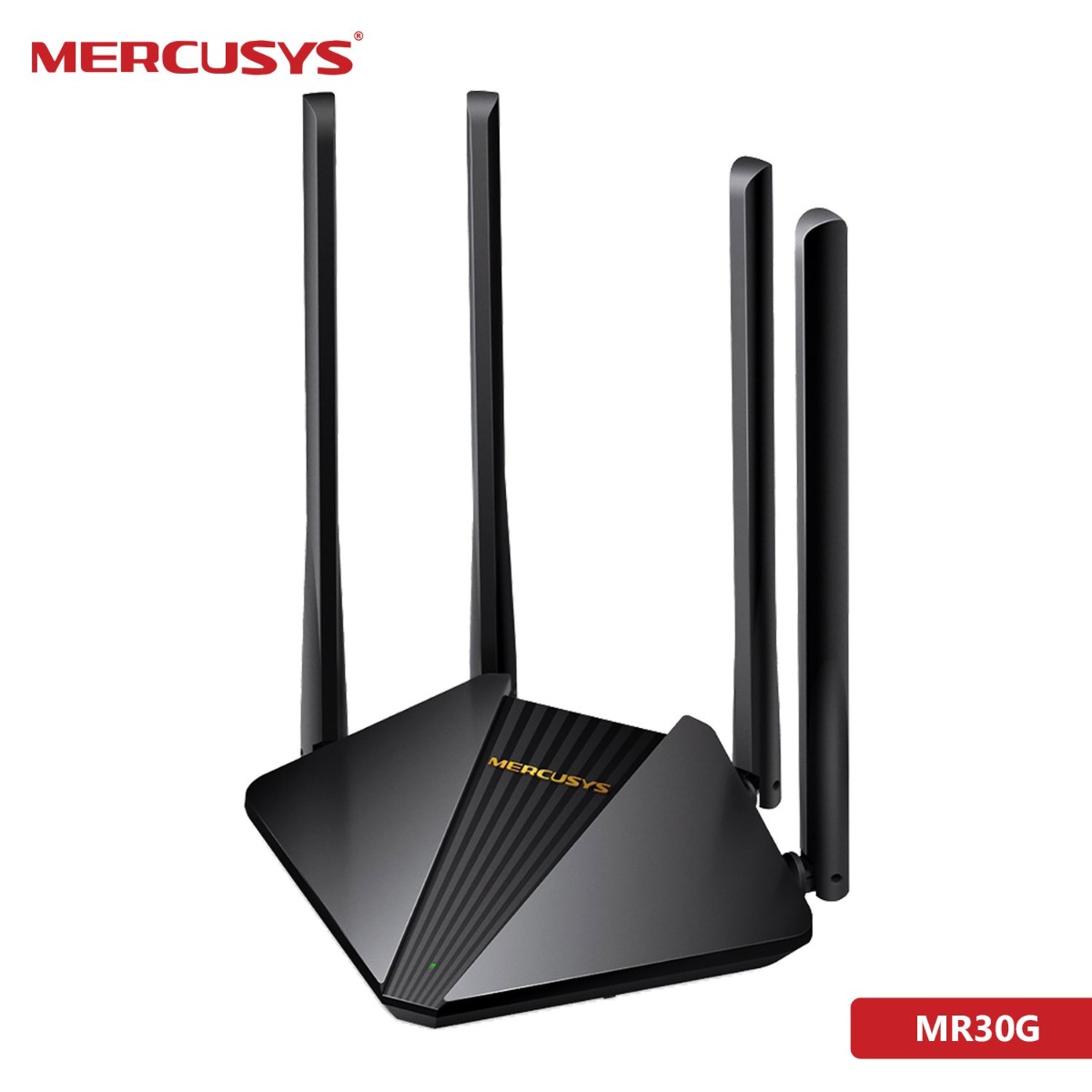

AC1200 Wireless Dual Band Gigabit Router
AC1200 Gigabit Wi-Fi – Enjoy home entertainment without any lag, reaching speeds up to 1.2Gbps (867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band)
Broader Coverage – 4× high-gain antennas with Beamforming boost stable connections throughout your home for strong Wi-Fi signals in every corner
Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing Wi-Fi throughput for each device
Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites
Hardware Version
EU / 1.30
----------------------------------------------------------------------------------------------------
Wireless Standards
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz and 5GHz
----------------------------------------------------------------------------------------------------
Signal Rate (Wi-Fi Speeds)
867Mbps (5GHz) + 300Mbps (2.4GHz), compatible with 11ac/a/b/g/n Wi-Fi standards
----------------------------------------------------------------------------------------------------
Reception Sensitivity
11g 6Mbps: -96dBm11g 54Mbps: -78dBm11n HT40 MCS7: -71dBm11n HT20 MCS7: -74dBm11a 6Mbps: -97dBm11a 54Mbps: -79dBm11ac VHT20 MCS8: -74dBm11ac VHT40 MCS9: -70dBm11ac VHT80 MCS9: -65dBm
----------------------------------------------------------------------------------------------------
Transmission Power
2.4GHz < 20dBm (EIRP)
5GHz < 23dBm (EIRP)
----------------------------------------------------------------------------------------------------
Wireless Security
WPA-PSK / WPA2-PSK
Operation Modes
Router Mode, Access Point Mode
----------------------------------------------------------------------------------------------------
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
----------------------------------------------------------------------------------------------------
Management
Access ControlLocal ManagementRemote Management
----------------------------------------------------------------------------------------------------
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
----------------------------------------------------------------------------------------------------
Firewall Security
SPI Firewall, IP and MAC Address Binding
----------------------------------------------------------------------------------------------------
Guest Network
2.4GHz Guest Network, 5GHz Guest Network
----------------------------------------------------------------------------------------------------
DHCP
Server, DHCP Client List
Dimensions (WxDxH)
6.3×5.0×1.5in(159.7×125.9×37.1 mm)
----------------------------------------------------------------------------------------------------

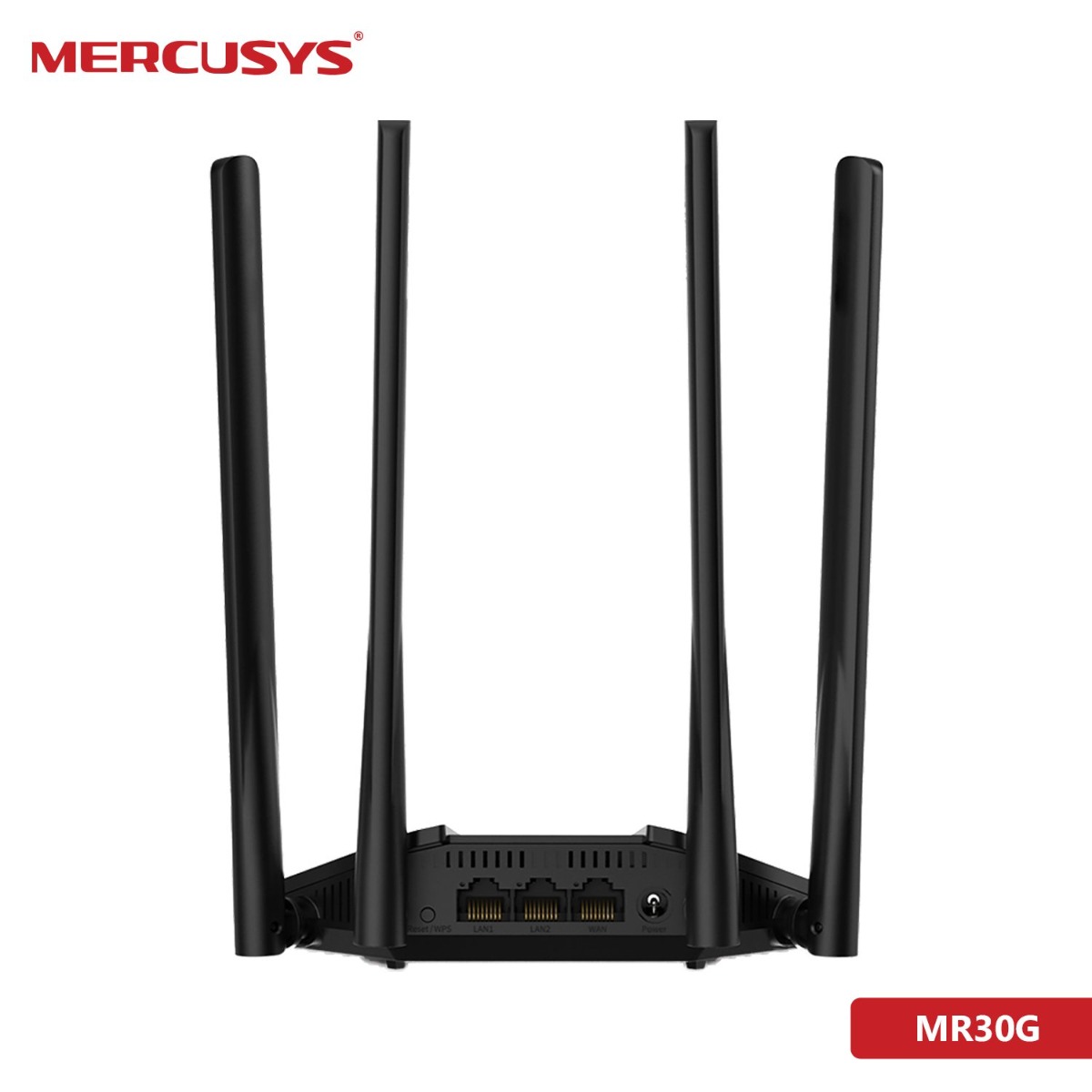

Interfaces
1×Gigabit WAN Port + 2×Gigabit LAN Ports
----------------------------------------------------------------------------------------------------
Button
WPS/Reset Button
----------------------------------------------------------------------------------------------------
Antenna Type
4×5dBi Fixed Omni-Directional Antennas
Package Contents
AC1200 Wireless Dual Band Gigabit Router (MR30G)Power AdapterQuick Installation GuideRJ45 Ethernet Cable
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)Operating Humidity: 10%~90% Non-CondensingStorage Humidity: 5%~90% Non-Condensing
