Brand: MERCUSYS
Model: MA30H
AC1300 High Gain Wireless Dual Band USB Adapter
Strong Dual Band Wi-Fi Speed — Speeds up to 867Mbps (5GHz) + 400Mbps (2.4GHz)
Wider Signal Coverage — A high-performance antenna
Plug and Play — With the built-in inbox driver by Windows operation systems, you just need to plug into your computer and play

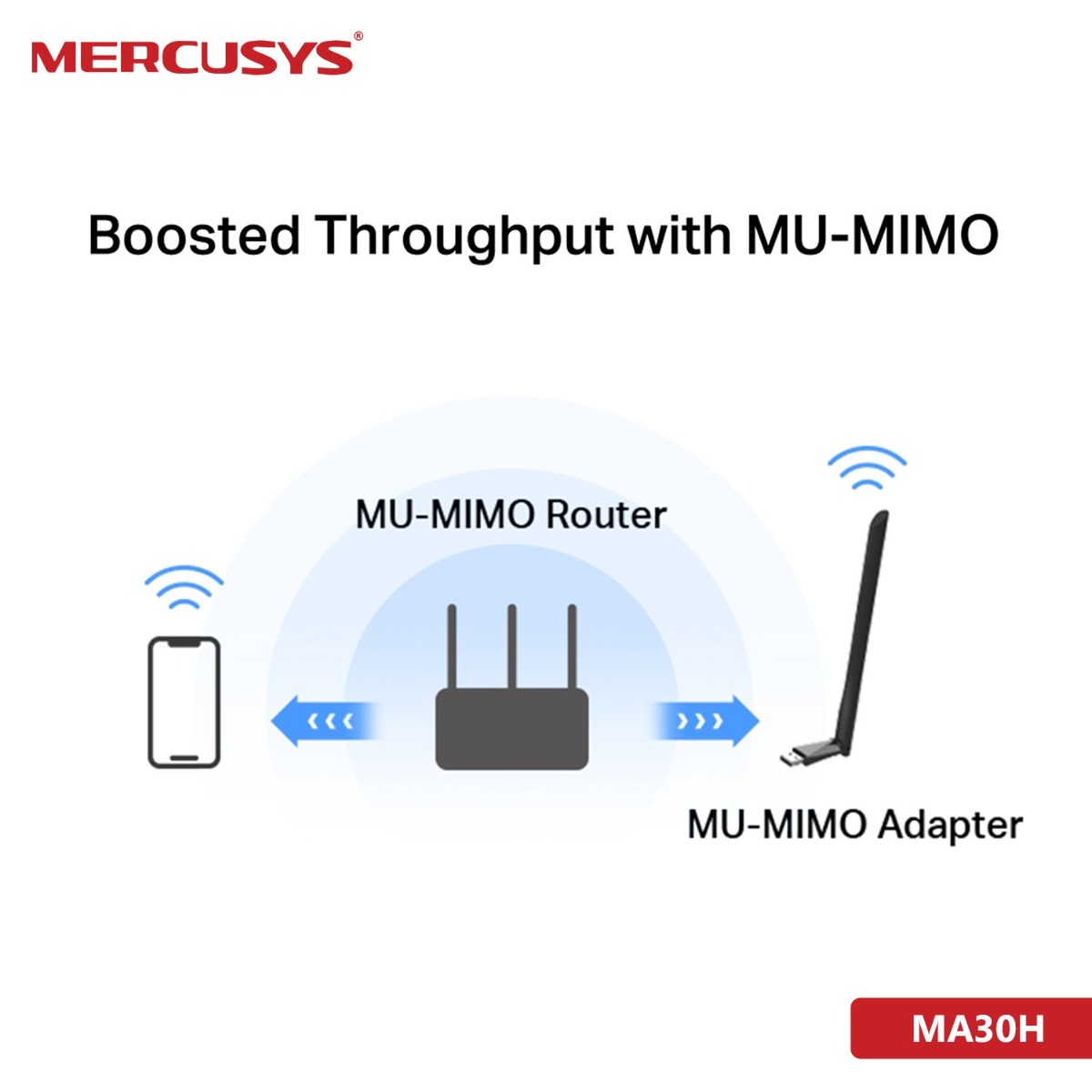

MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Backward Compatibility — Full support for 802.11ac/a/b/g/n standards
Windows Compatible — Supported operating system: Windows 10, 11
Wireless Standard
IEEE 802.11 a/n/ac 5GHz
IEEE 802.11 b/g/n 2.4GH
----------------------------------------------------------------------------------------------------
WiFi Speeds
867Mbps on 5GHz
400Mbps on 2.4GHz
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHZ
11a 54Mbps -76dbm
11ac VHT80 MCS0 -86dbm
11ac VHT80 MCS9 -63dbm
2.4GHz
11g 54Mbps -75dBm
11n HT40 MCS7 -70db
----------------------------------------------------------------------------------------------------
Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE
Dimensions
2.28×0.66×6.83 in (57.8×16.8×173.4 mm)
----------------------------------------------------------------------------------------------------
Interfaces
USB 2.0
----------------------------------------------------------------------------------------------------
Antenna Type
1 External High Gain
5dBi Antenna
----------------------------------------------------------------------------------------------------
LED
Status
The MA30H AC1300 Dual Band USB WiFi Adapter: Boosts your PC’s wireless performance with fast speeds, strong signal coverage, and advanced security
AC1300 Dual Band WiFi: Up to 867 Mbps (5 GHz) and 400 Mbps (2.4 GHz) for smooth HD streaming, gaming, and browsing
High Gain Multi-Directional Antenna: Extends wireless range, improves signal stability, and allows angle adjustment for best performance
MU-MIMO Support: Ensures faster, more efficient connections when paired with a MU-MIMO router.
Plug and Play: Works instantly on Windows systems without a driver CD
Windows Compatibility: Fully supports Windows 11/10 (32/64-bit)
WPA3 Security: Protects your network with stronger encryption, brute-force attack protection, and advanced forward secrecy
Package Contents
AC1300 High Gain Wireless Dual Band USB Adapter ( MA30H )
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Windows 11/10 (32/64 bit)
