Brand: TP-Link
Model: RE550
Product Type: Mesh Range Extender
Maximum Coverage - Extend Wi-Fi coverage by up to 1,115 m2 (12,000sq. ft)

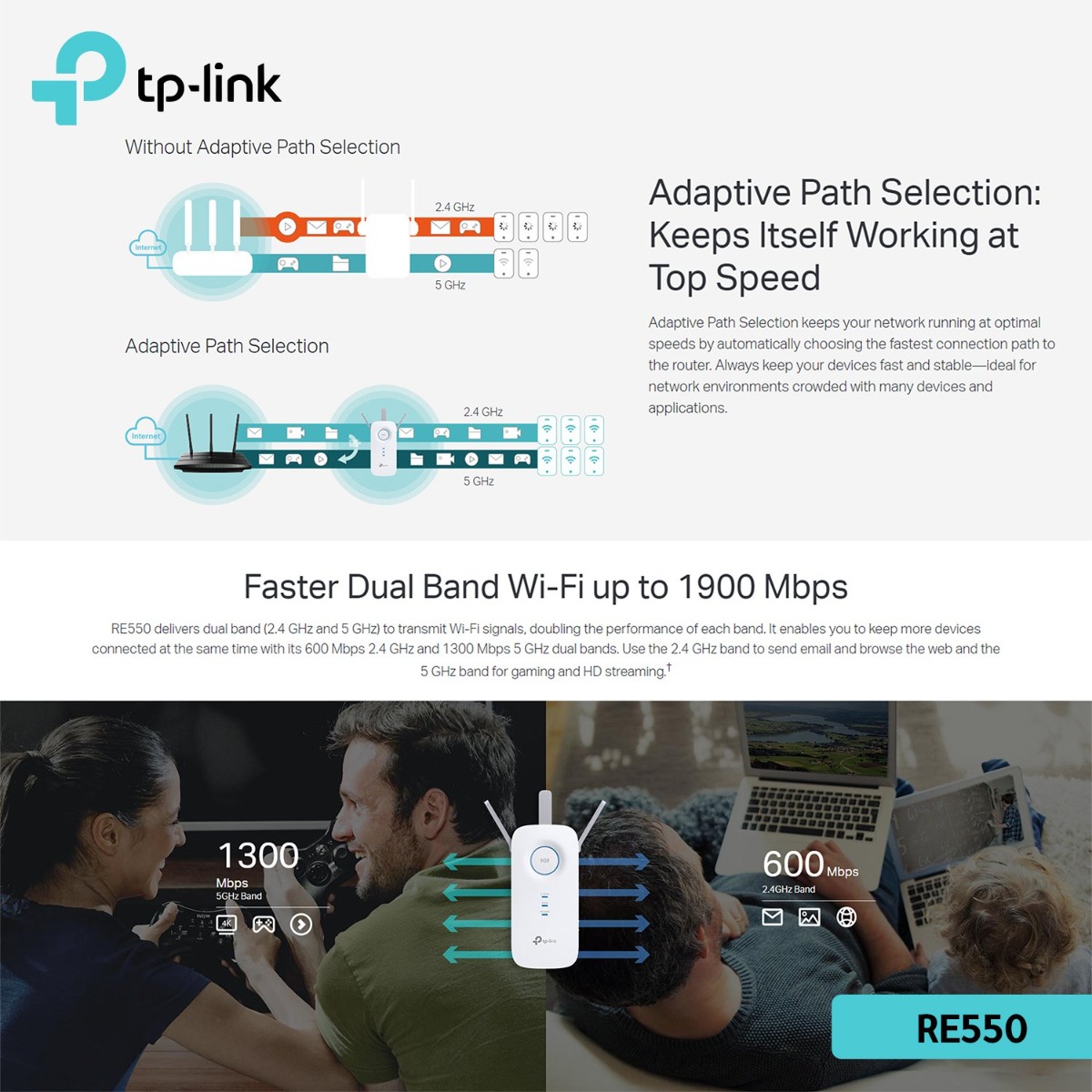

AC1900 Dual Band Wi-Fi - Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz
Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
Gigabit Ethernet port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed
Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

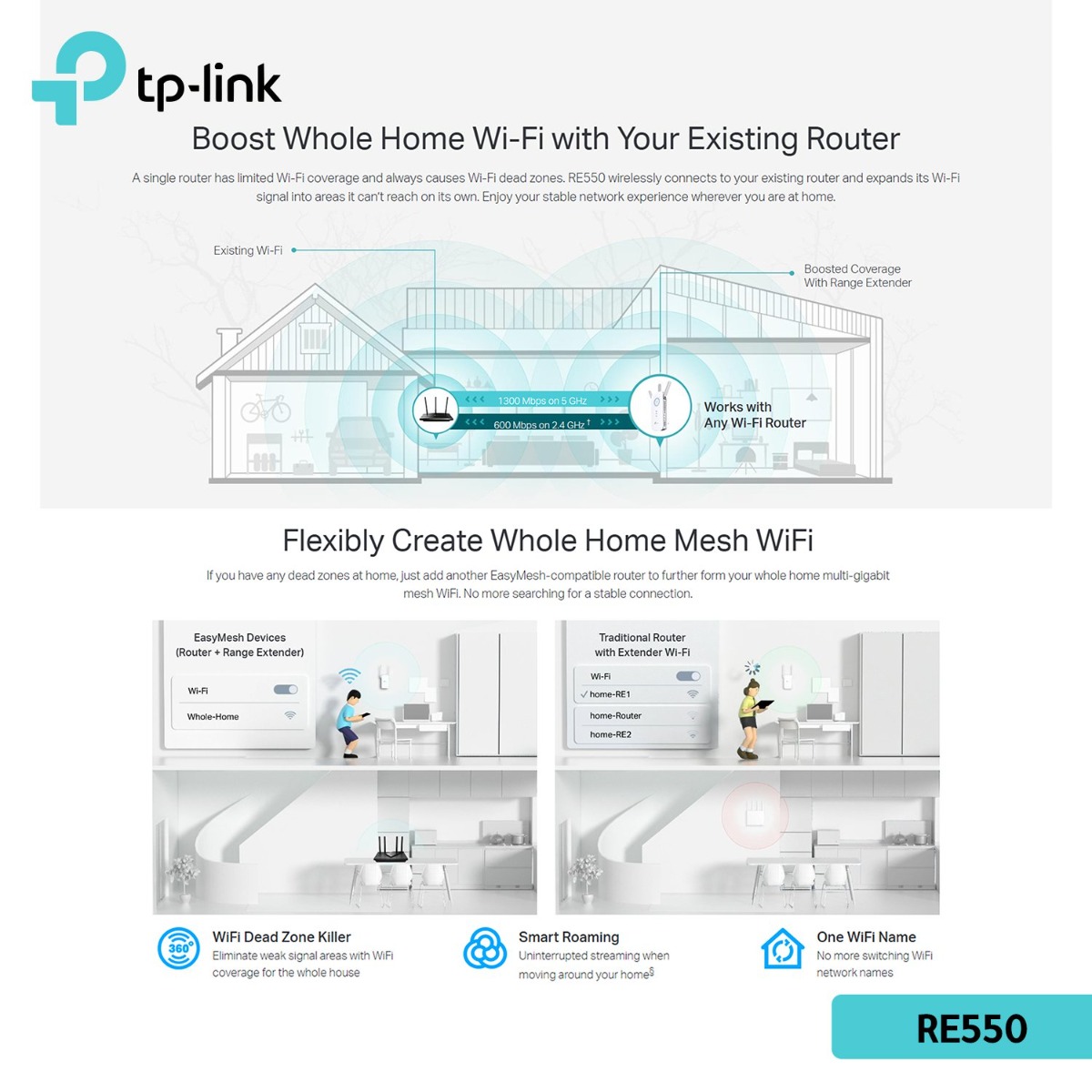

EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Color: White
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz and 5GHz
----------------------------------------------------------------------------------------------------
Signal Rate
600Mpbs at 2.4GHz, 1300Mbps at 5GHz
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHz
11a 6Mbps:-93dBm
11a 54Mbps: -76dBm
11ac HT20 mcs8: -68dBm
11ac HT40 mcs9: -64dBm
11ac HT80 mcs9: -61dBm
2.4GHz
11g 54Mbps: -77dBm
11n HT20 mcs7: -73dBm
11n HT40 mcs7: -70dBm
----------------------------------------------------------------------------------------------------
Transmission Power
2.4G<20dBm, 5G<23dBm
----------------------------------------------------------------------------------------------------
Working Mode
Range Extender/Access Point
----------------------------------------------------------------------------------------------------
Wireless Security
64/128-bit WEP, WPA-PSK / WPA2-PSK
----------------------------------------------------------------------------------------------------
Wireless Functions
Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage
Plug Type
EU, UK, US, AU, KR, JP
----------------------------------------------------------------------------------------------------
Ports
1×Gigabit Ethernet Port
----------------------------------------------------------------------------------------------------
Button
WPS Button, Reset Button, LED Button, Power Button
----------------------------------------------------------------------------------------------------
Input Power
100-240V~50/60Hz
----------------------------------------------------------------------------------------------------
Max. Power Consumption
10W (max power consumption)
----------------------------------------------------------------------------------------------------
Dimensions (W×D×H)
6.4×3.0×2.6 in.(163 ×76.4×66.5mm)
----------------------------------------------------------------------------------------------------
Antenna
3 External Antennas
Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP
App management
Manage and configure device through app
Port: 20001 Protocol: TCP
Port: 20002 Protocol: UDP
----------------------------------------------------------------------------------------------------
Certification
CE, FCC
----------------------------------------------------------------------------------------------------
Package Content
AC1900 Wi-Fi Range Extender RE550
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
