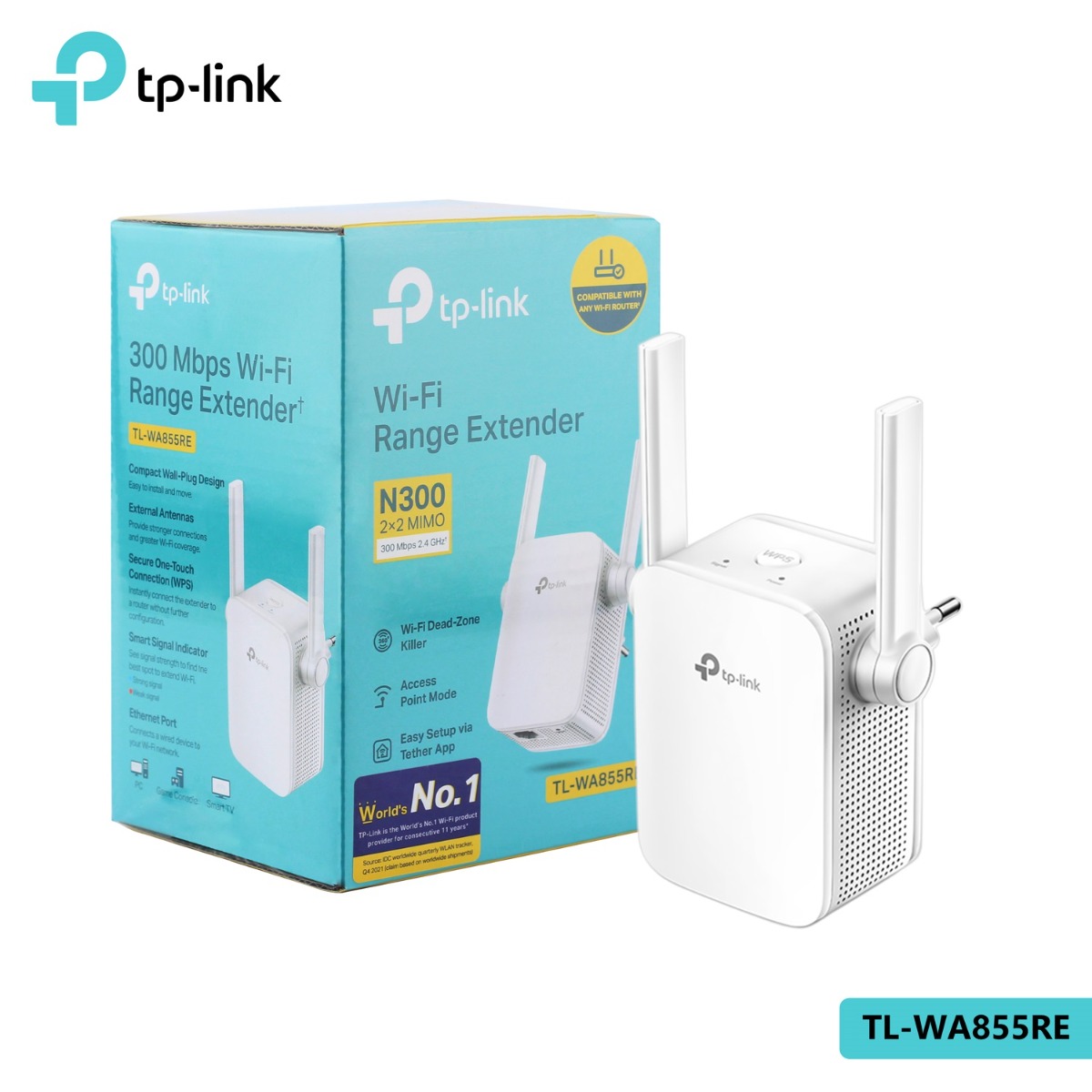

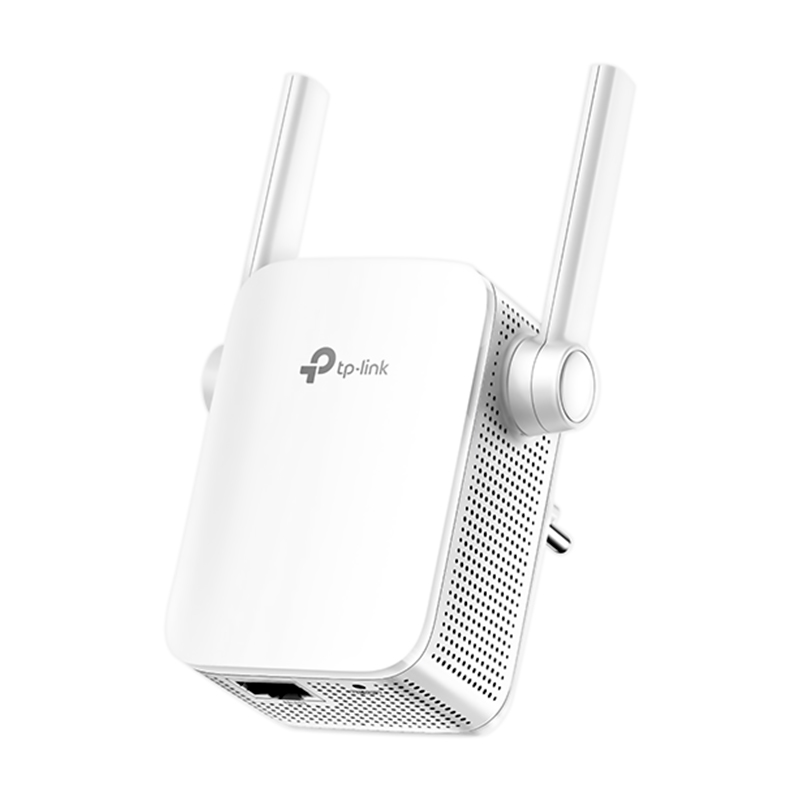

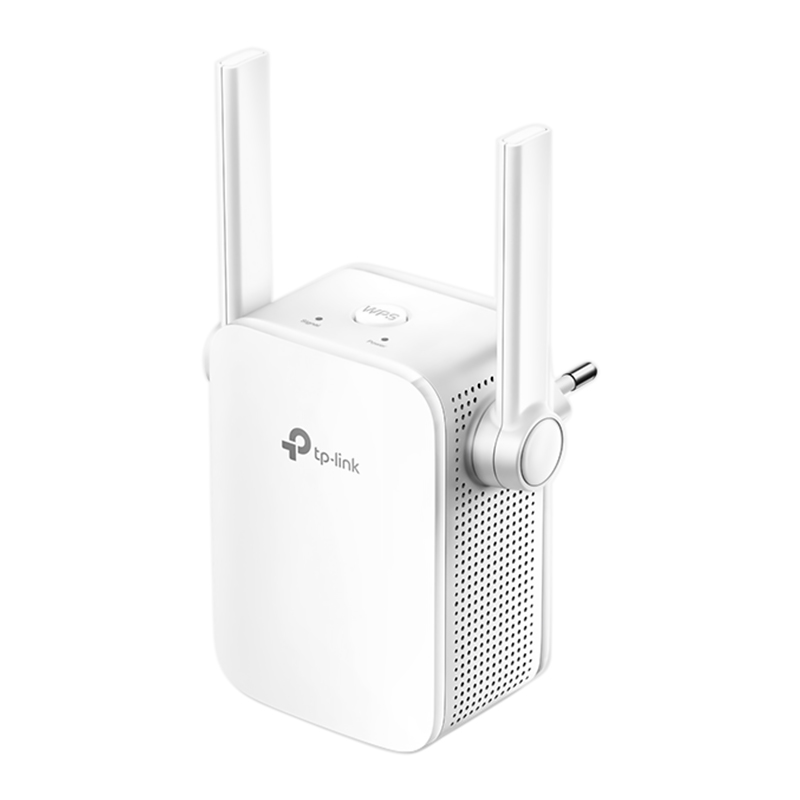

Brand: TP-Link
Model: TL-WA855RE
300Mbps Wi-Fi Range Extender
Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity
External antennas for faster and more reliable Wi-Fi
Supports AP mode which creates a new Wi-Fi Access point
Easily expand wireless coverage at a push of the Range Extender button
Set the Power Schedule for the range extender for power-saving
Works with Any Wi-Fi Router
Wireless Standards
IEEE 802.11n , IEEE 802.11g , IEEE 802.11b
----------------------------------------------------------------------------------------------------
Frequency
2.4~2.4835GHz
----------------------------------------------------------------------------------------------------
Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
----------------------------------------------------------------------------------------------------
Reception Sensitivity
270M: <-68dBm@10% PER
130M: <-68dBm@10% PER
108M: <-68dBm@10% PER
54M: <-68dBm@10% PER
11M: <-68dBm@8% PER
6M: <-68dBm@10% PER
1M: <-68dBm@8% PER
----------------------------------------------------------------------------------------------------
Transmit / Transmission Power
<20dBm (EIRP)
----------------------------------------------------------------------------------------------------
Wireless Modes
Range Extender/Access Point
----------------------------------------------------------------------------------------------------
Wireless Functions
Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control
----------------------------------------------------------------------------------------------------
Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Dimensions (WxDxH)
3.15x3.06x3.04 in (80x77.8x77.3mm)
----------------------------------------------------------------------------------------------------
Interface
1x10/100M Ethernet Port (RJ45)
----------------------------------------------------------------------------------------------------
Ports
1x10/100Mbps Ethernet Port (RJ45)
----------------------------------------------------------------------------------------------------
Button
WPS Button, Reset Button
----------------------------------------------------------------------------------------------------
Input Power
100-240V~50/60Hz
----------------------------------------------------------------------------------------------------
Power Consumption
3.6W
----------------------------------------------------------------------------------------------------
Plug Type
US
----------------------------------------------------------------------------------------------------
Antenna
2xExternal
Certification
FCC, RoHS
----------------------------------------------------------------------------------------------------
Package Contents
300Mbps Wi-Fi Range Extender TL-WA855RE
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux.
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
