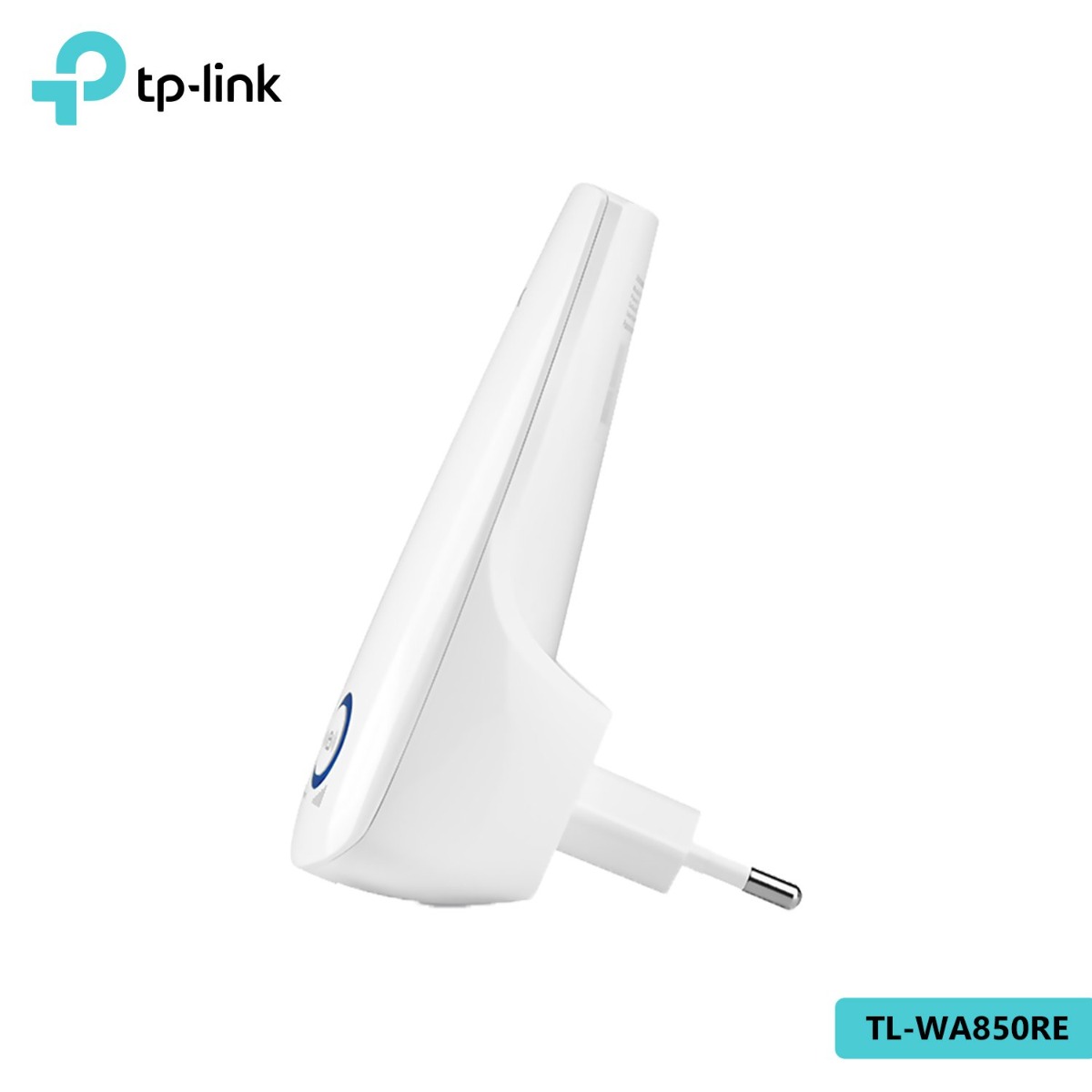

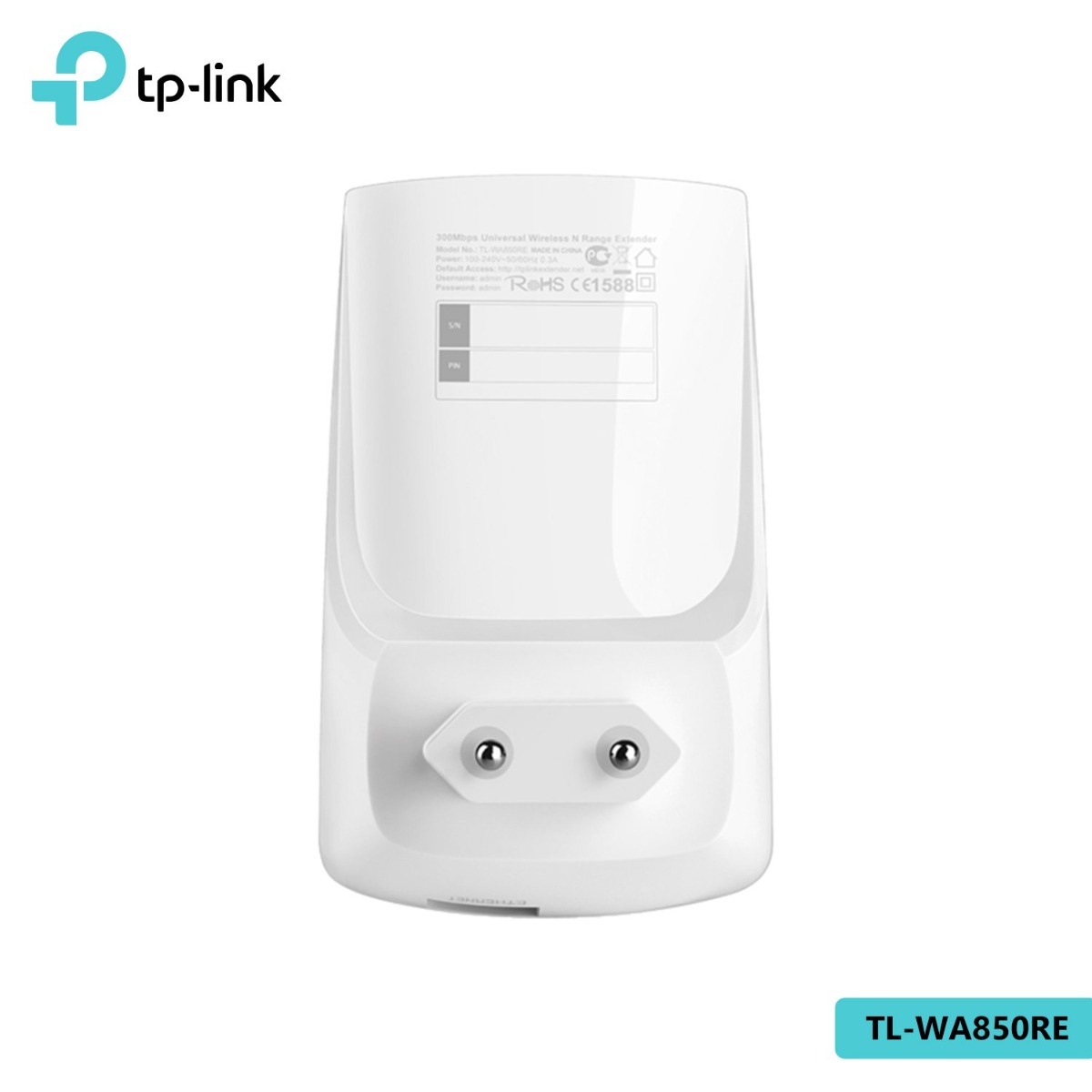

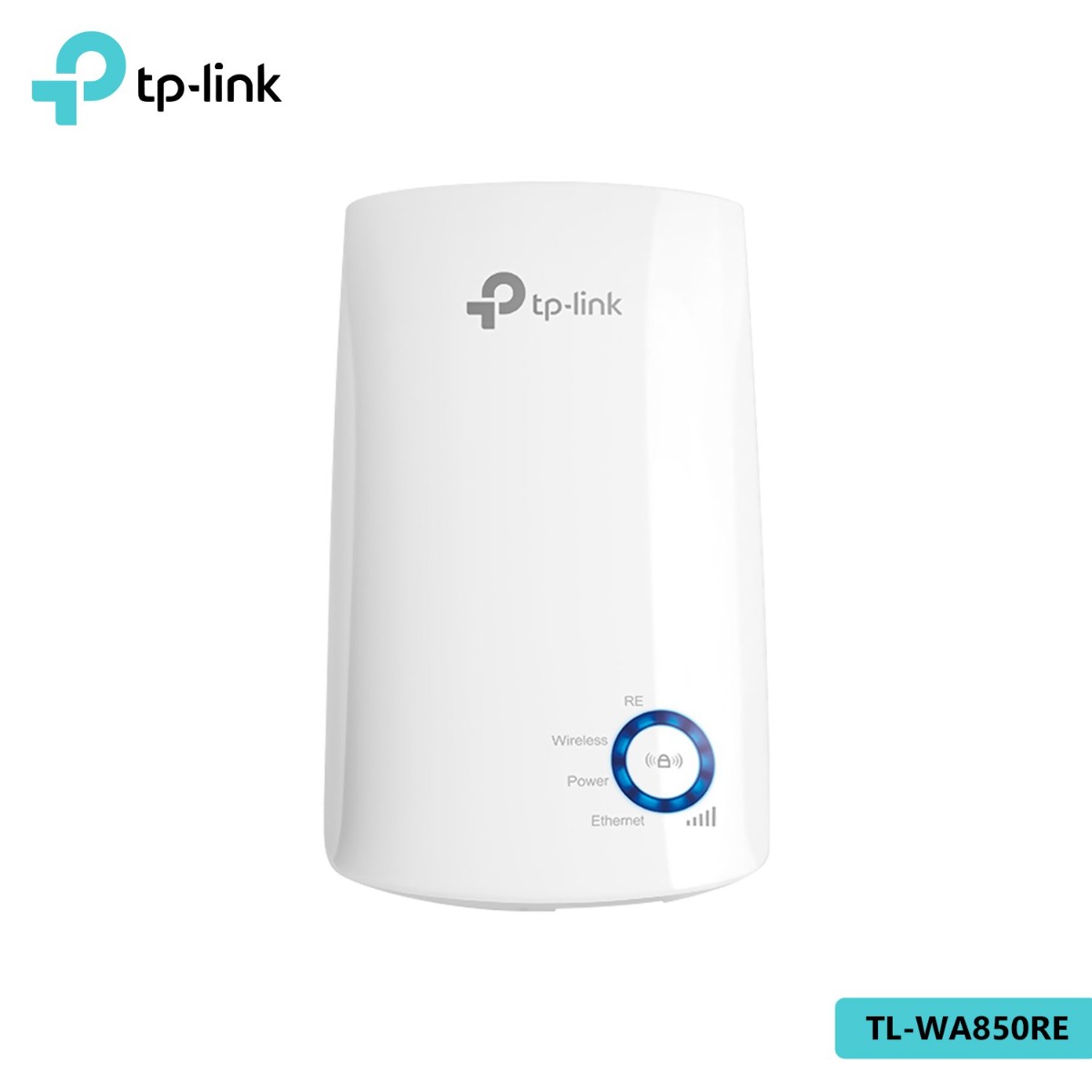

Product Overview
Brand: TP-Link
Model: TL-WA850RE
300Mbps Universal Wi-Fi Range Extender
Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Easily expand wireless coverage at a push of Range Extender button

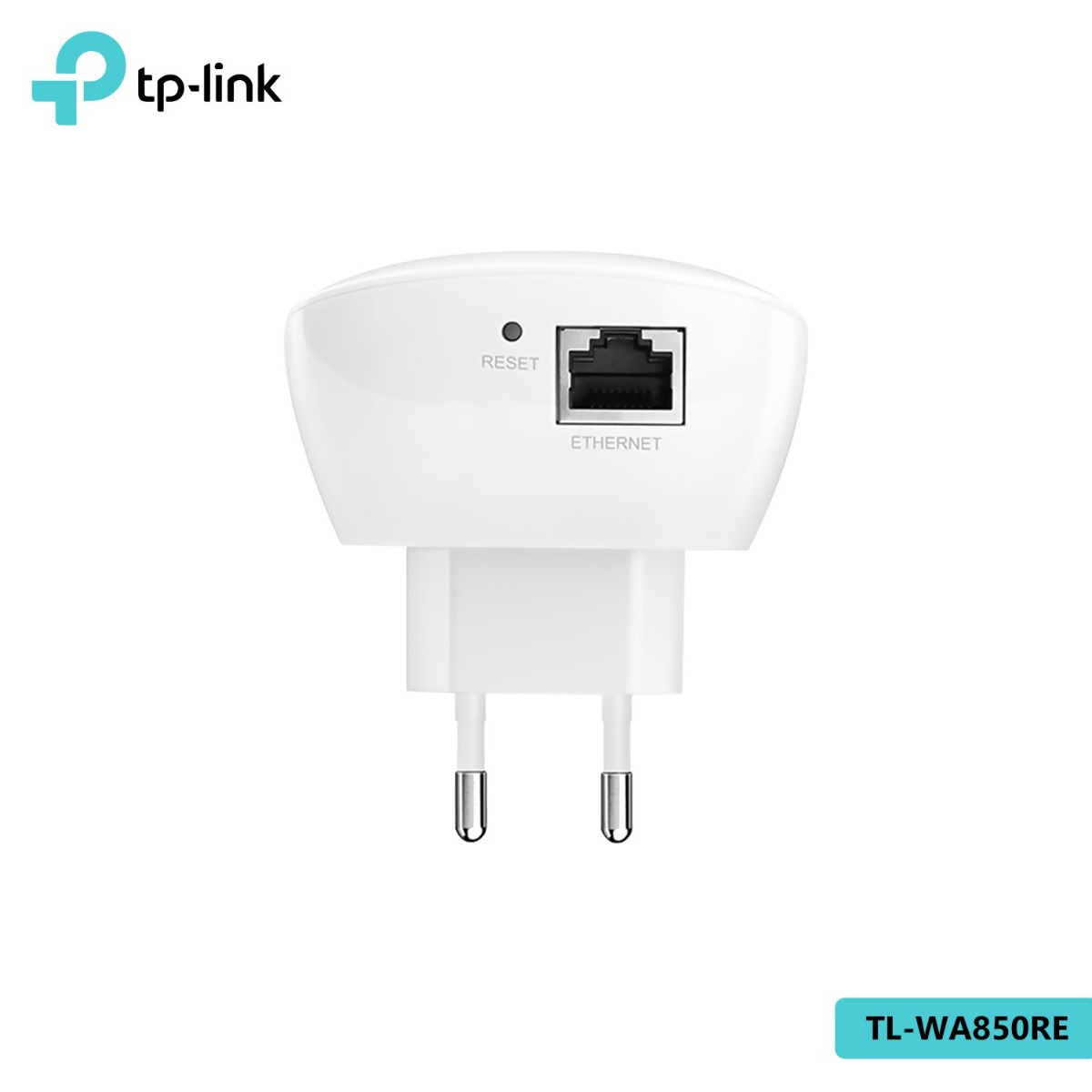

Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
Tether App allows easy access and management using any mobile device
LED Control function includes a Night Mode for peaceful sleep
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
----------------------------------------------------------------------------------------------------
Frequency
2.4~2.4835GHz
----------------------------------------------------------------------------------------------------
Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
----------------------------------------------------------------------------------------------------
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
----------------------------------------------------------------------------------------------------
Transmit Power
<20dBm (EIRP)
----------------------------------------------------------------------------------------------------
Wireless Modes
Range Extender/Access Point
----------------------------------------------------------------------------------------------------
Wireless Functions
WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
----------------------------------------------------------------------------------------------------
Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Dimensions (WxDxH)
4.3x2.6x3.0 in (110.0x65.8x75.2mm)
----------------------------------------------------------------------------------------------------
Interface
1*10/100M Ethernet Port (RJ45)
----------------------------------------------------------------------------------------------------
Ports
1x10/100Mbps Ethernet Port (RJ45)
----------------------------------------------------------------------------------------------------
Button
RE (Range Extender) Button, Reset Button
----------------------------------------------------------------------------------------------------
Input Power
100-240V~50/60Hz
----------------------------------------------------------------------------------------------------
Power Consumption
About 3W
----------------------------------------------------------------------------------------------------
Plug Type
EU, UK, US
----------------------------------------------------------------------------------------------------
Antenna
2*internal
Certification
RoHS
----------------------------------------------------------------------------------------------------

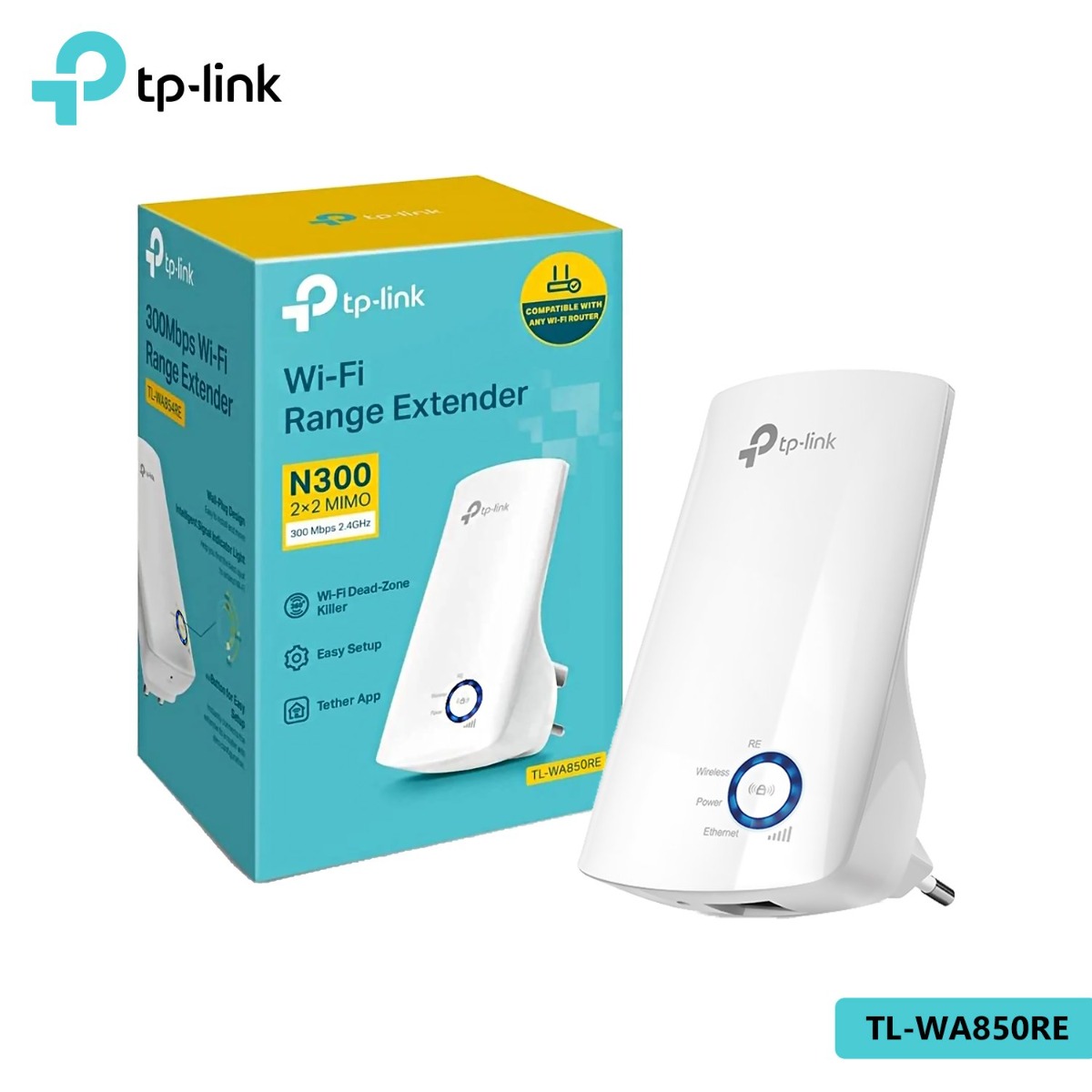

Package Contents
300Mbps Universal Wi-Fi Range Extender TL-WA850RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
----------------------------------------------------------------------------------------------------
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
