Product Overview
Brand: MERCUSYS
Model: ME50G

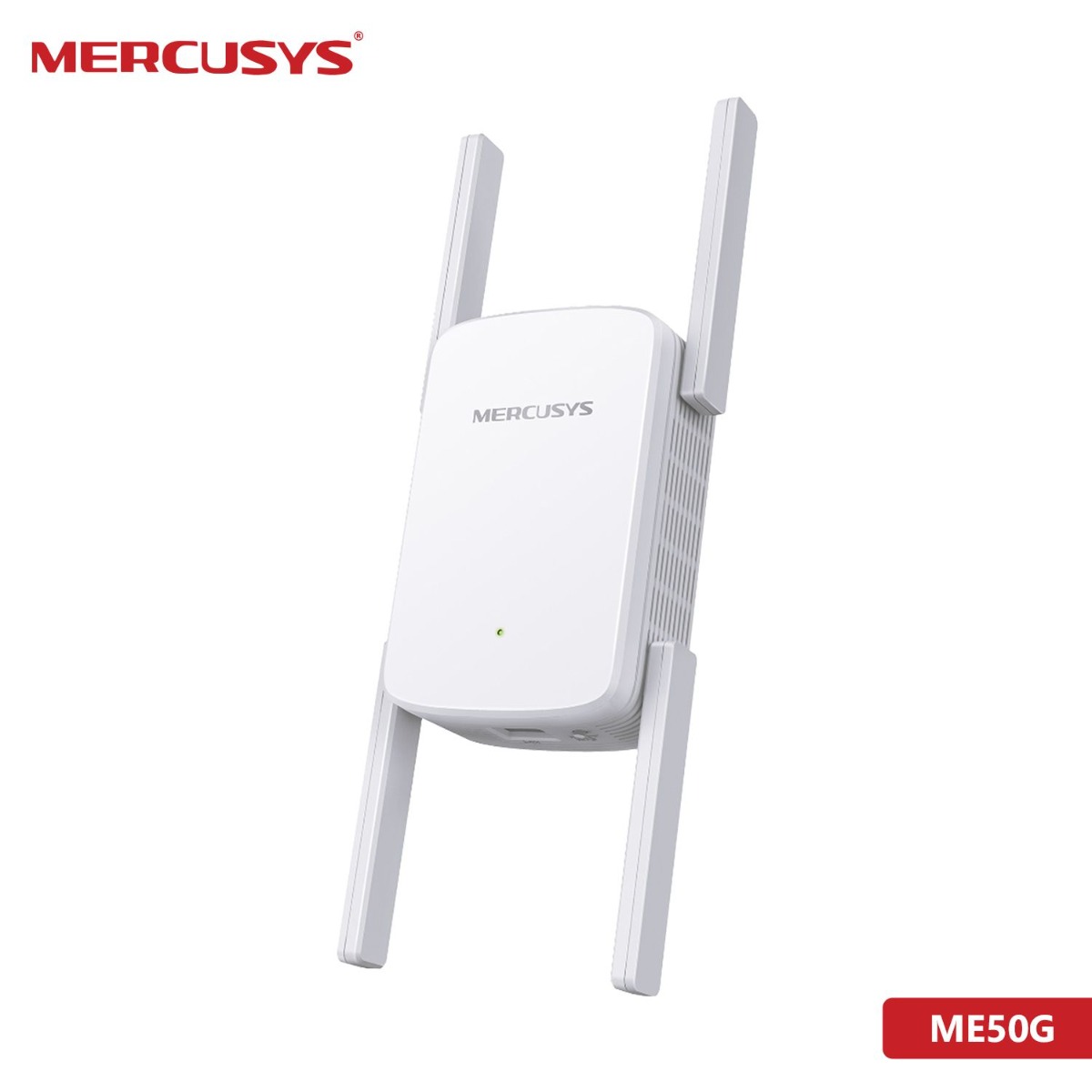

AC1900 Wi-Fi Range Extender

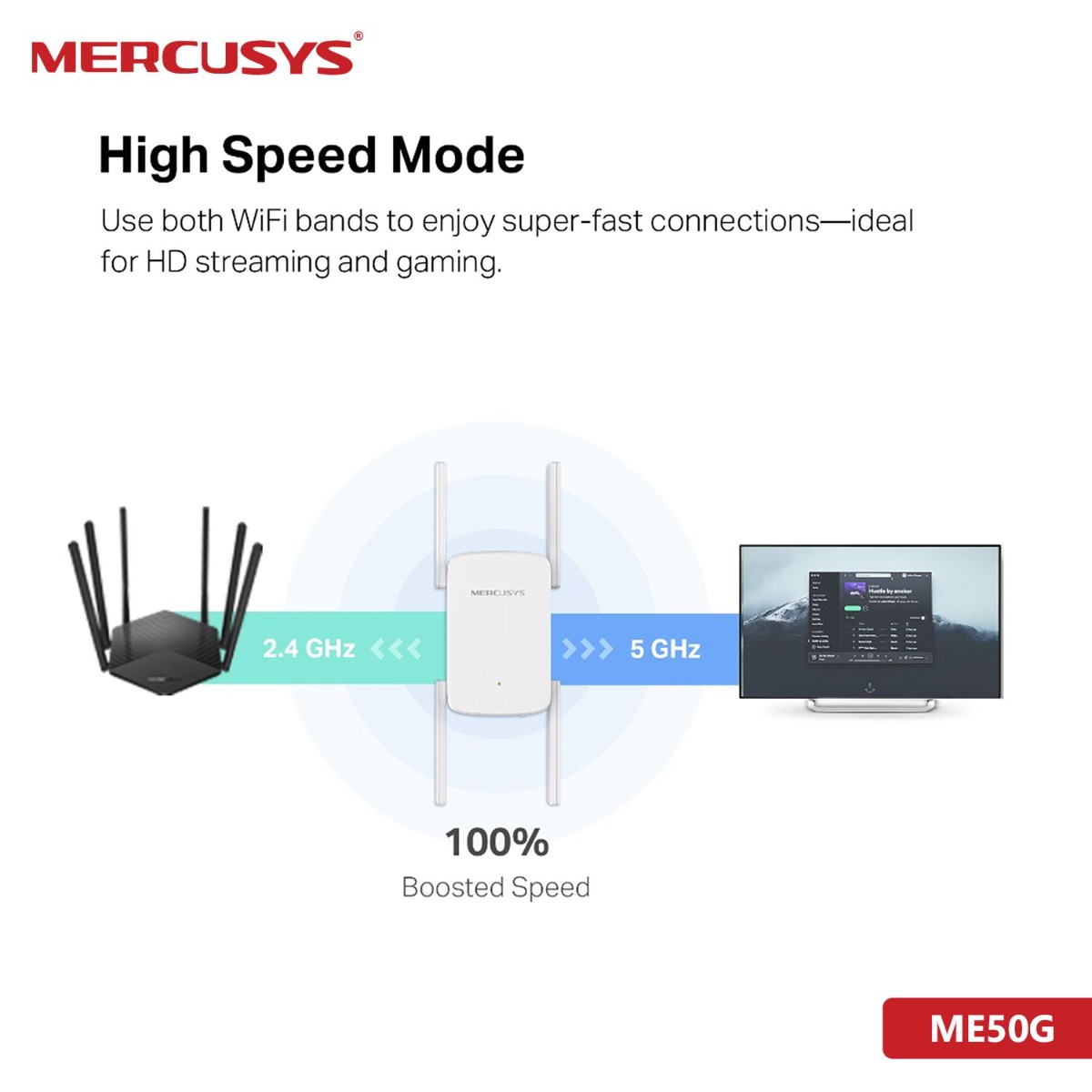

Dual Band Speeds up to 1900Mbps – 1300Mbps on 5 GHz and 600Mbps on 2.4GHz
Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles
3×3 MU-MIMO – Connect more devices simultaneously

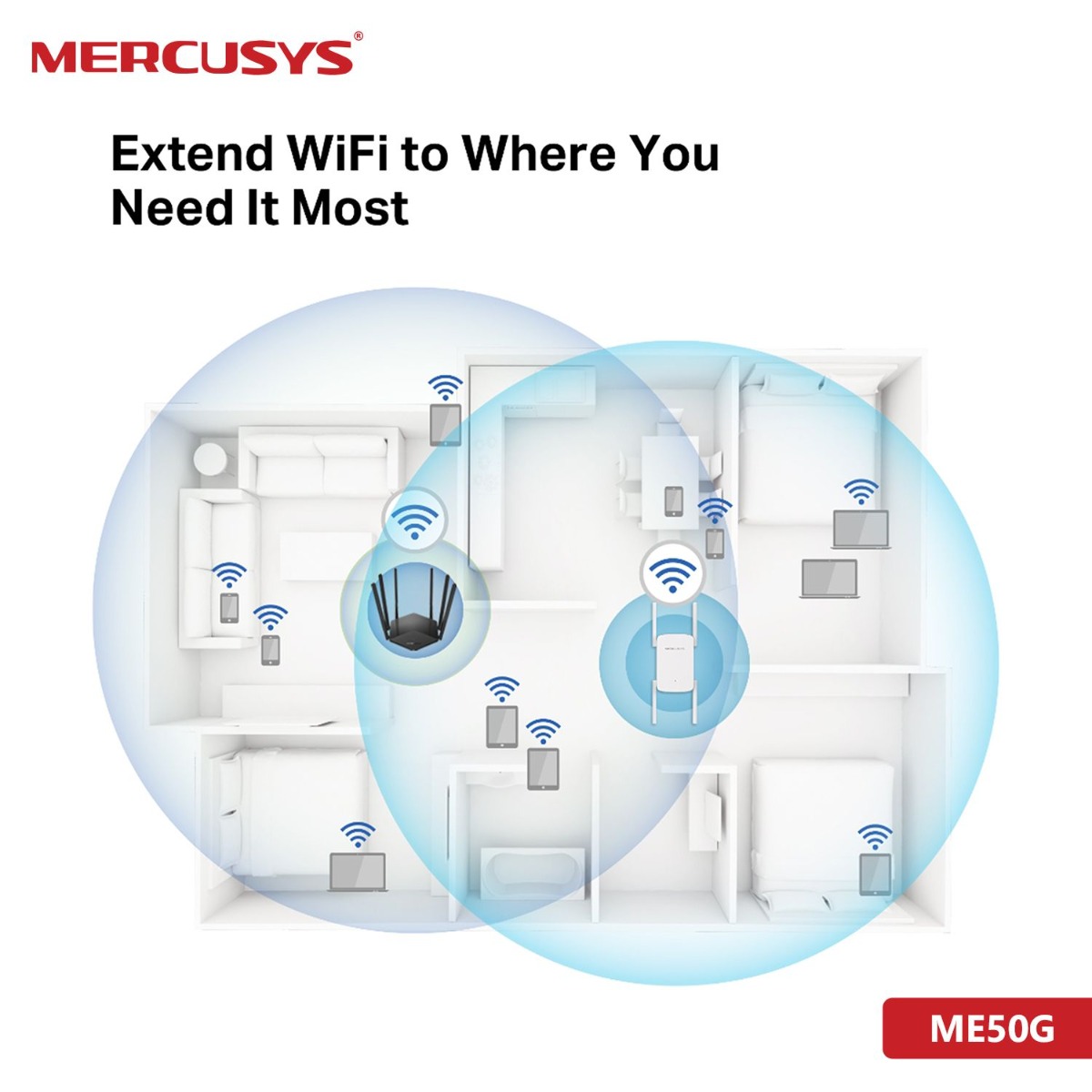

Works with Any Routers – To Extend Wi-Fi to Where You Need It Most
Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds

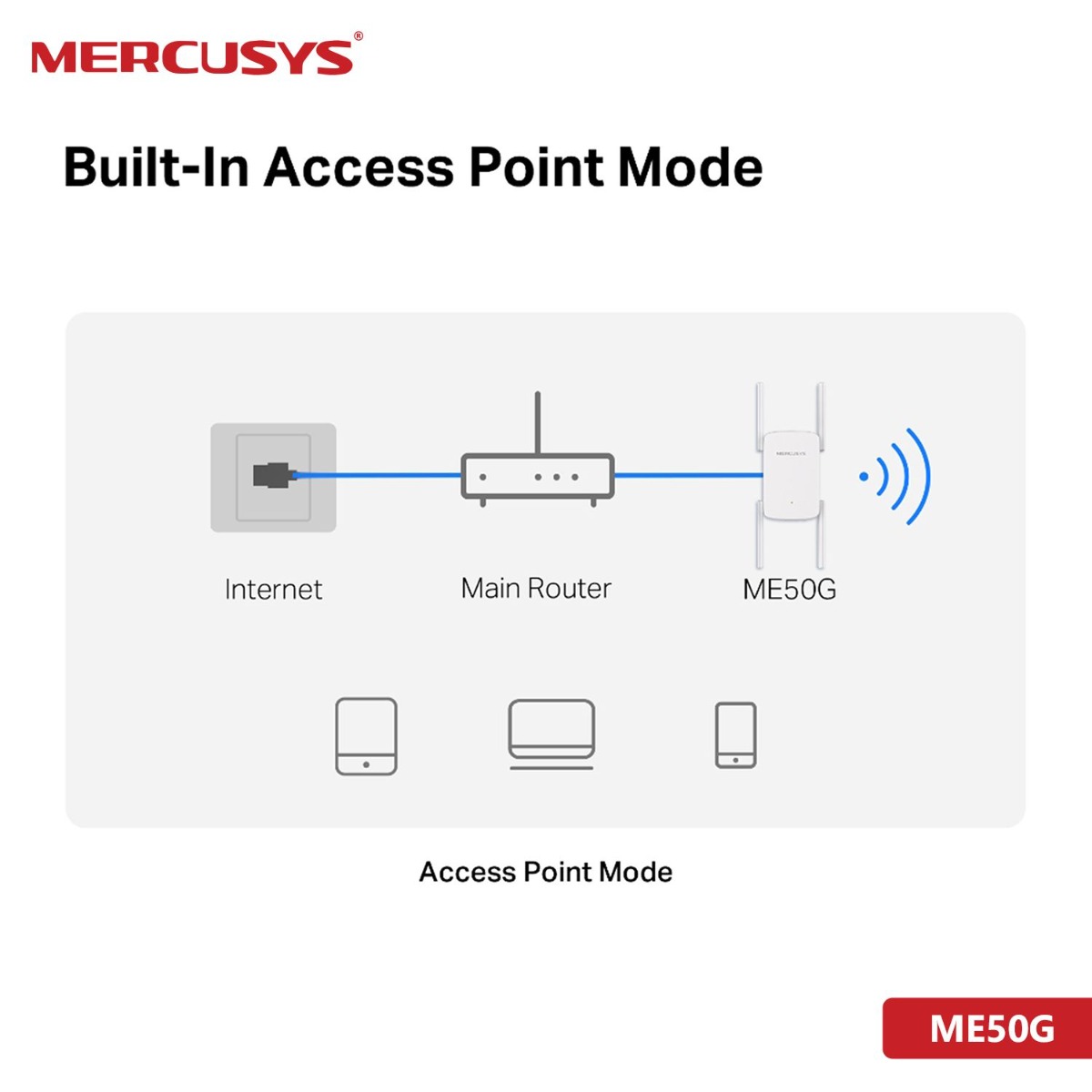

Built-In Access Point Mode – Works as RE mode and AP mode
Manage Your Network with App – Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4GHz, 5GHz
----------------------------------------------------------------------------------------------------
Wi-Fi Speeds
600Mbps at 2.4GHz, 1300Mbps at 5GHz
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHz
11g 6Mbps:-95.5dBm
11g 54Mbps:-77.5dBm
11n VHT20 MCS8:-71.5dBm
11n VHT40 MCS9:-67dBm
11n VHT80 MCS9:-63dBm
2.4GHz
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n VHT20 MCS8:-72dBm
11n VHT40 MCS9:-67.5dBm
----------------------------------------------------------------------------------------------------
Transmission Power
<20dBm
----------------------------------------------------------------------------------------------------
Wireless Security
WPA, WPA2, WPA3-PSK
Dimensions
with plug: 84.7×76.3×112mm
without plug: 84.7×39×112mm
----------------------------------------------------------------------------------------------------
Interfaces
1Gigabit Ethernet Port
----------------------------------------------------------------------------------------------------
Button
WPS / Reset Button
----------------------------------------------------------------------------------------------------
Antenna Type
4×External Antennas
----------------------------------------------------------------------------------------------------
Power Consumption
12W
Certifications
RoHS
----------------------------------------------------------------------------------------------------

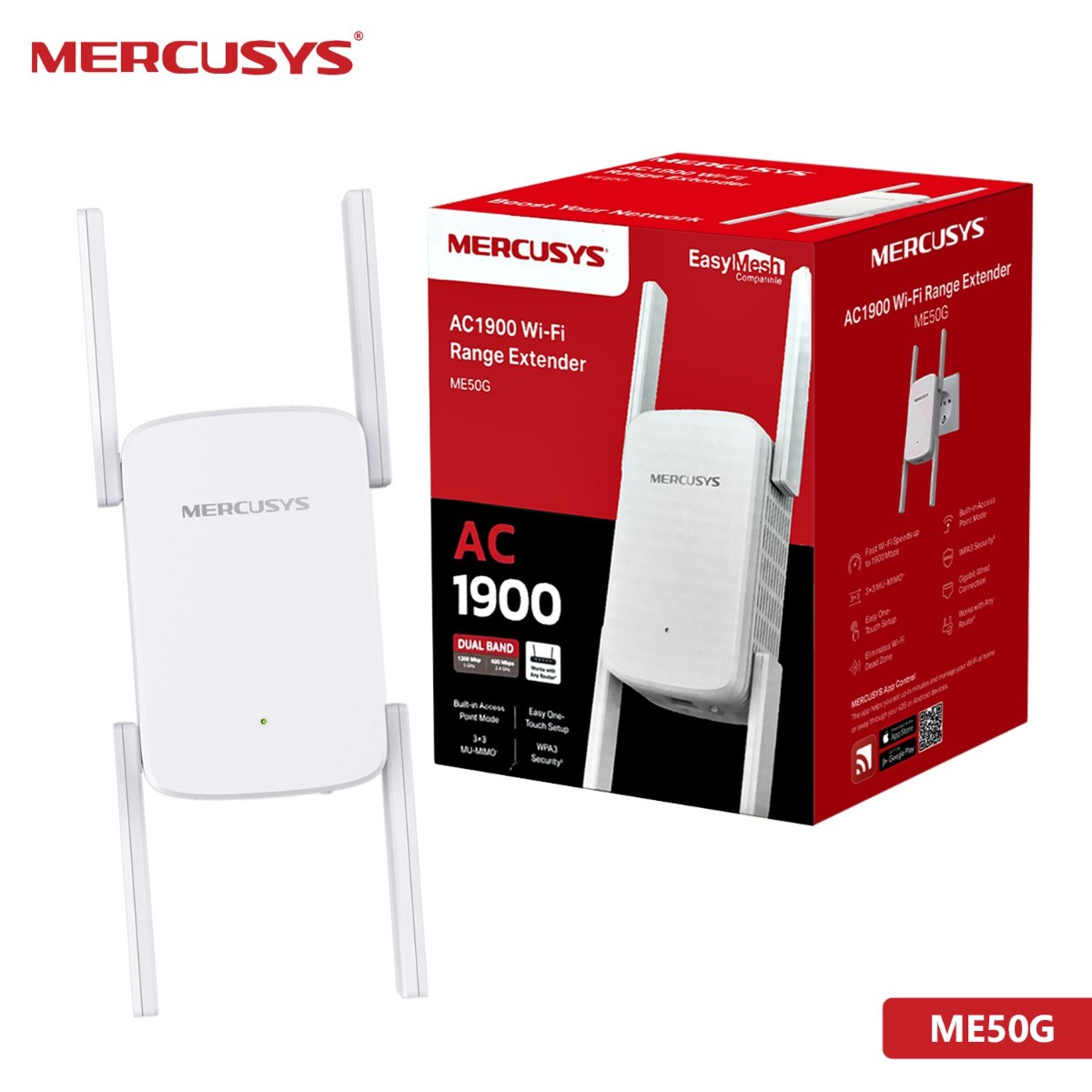

Package Contents
Wi-Fi Range Extender (ME50G)
Quick Installation Guide
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
