Product Overview
Brand: MERCUSYS
Model: ME30

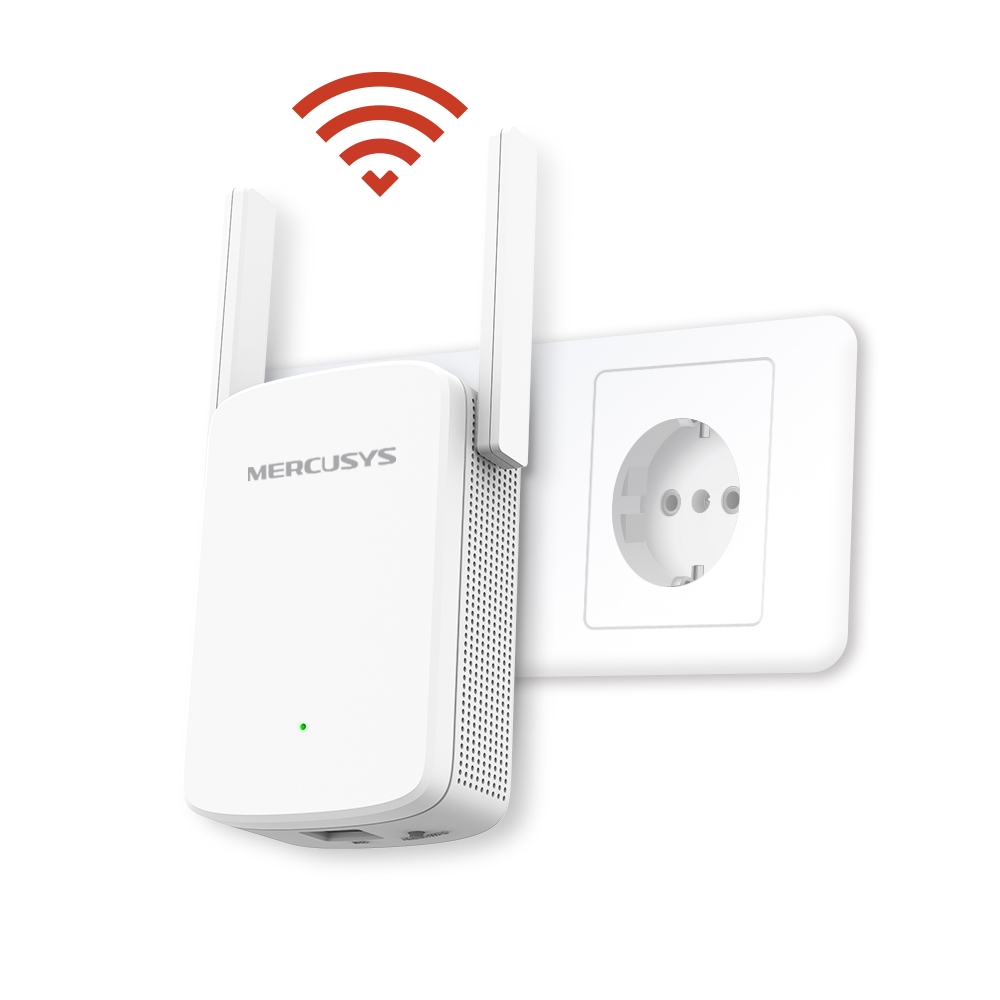

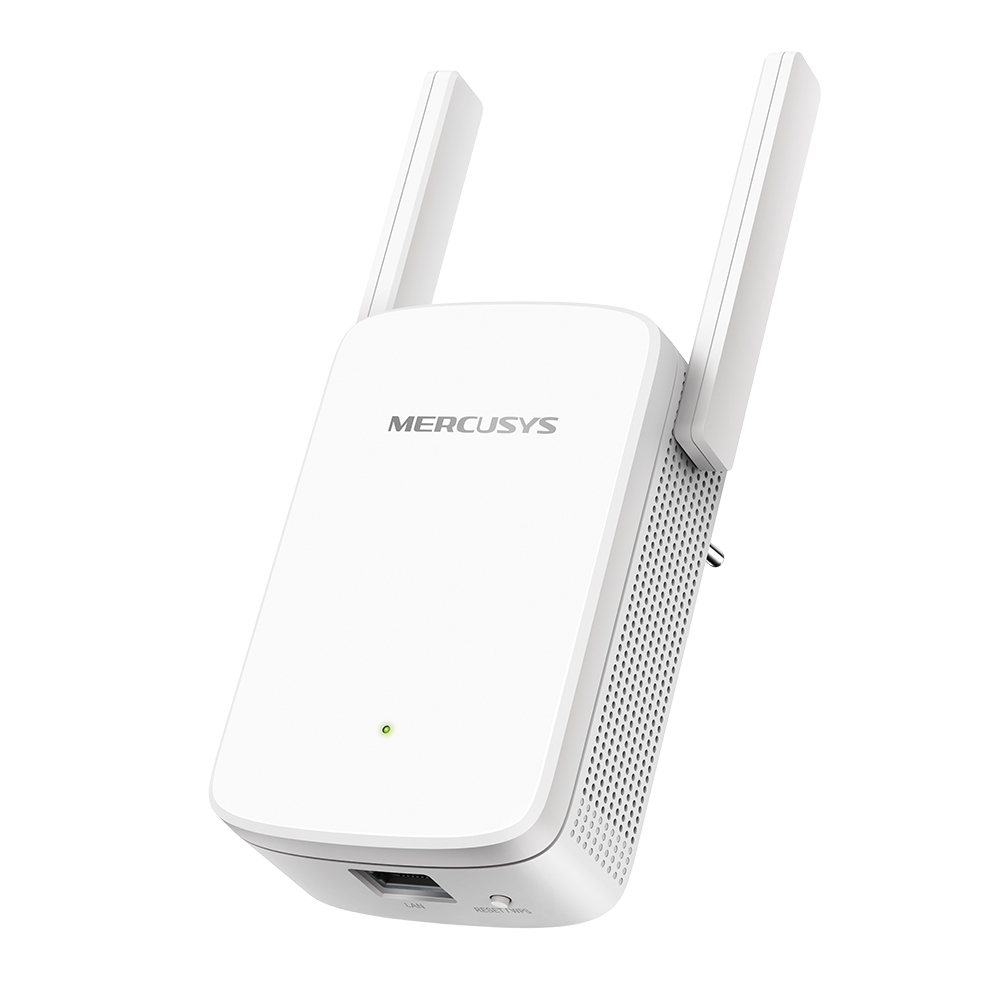

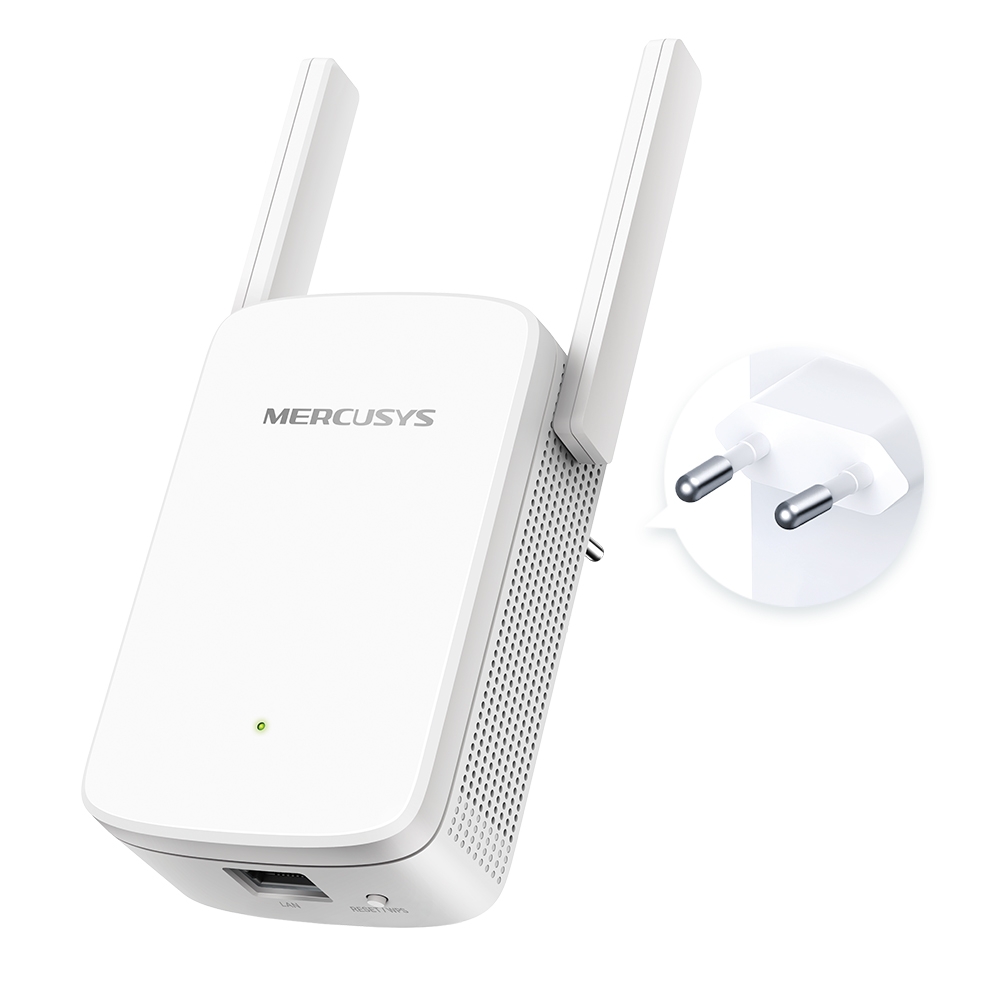

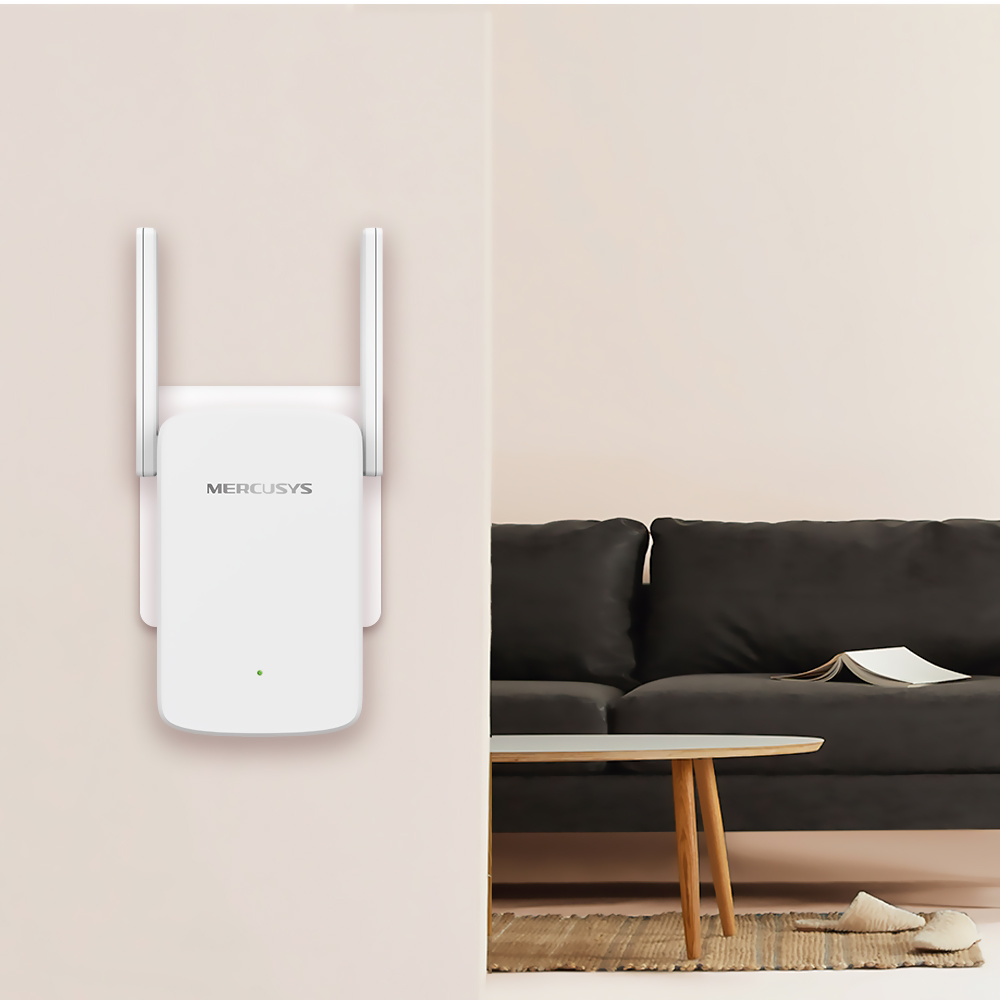

AC1200 Wi-Fi Range Extender
Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2Gbps
Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
Works with Any Router or Wireless Access Point
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
----------------------------------------------------------------------------------------------------
Frequency
2.4-2.5GHz, 5GHz
----------------------------------------------------------------------------------------------------
WiFi Speeds
Up to 1200Mbps (867Mbps on 5GHz, 300Mbps on 2.4GHz)
----------------------------------------------------------------------------------------------------
Reception Sensitivity
5GHz
11ac HT80 MCS9<-63 dBm
2.4GHz
11n HT40 MCS7<-70 dBm
----------------------------------------------------------------------------------------------------
Transmission Power
<20dBm
----------------------------------------------------------------------------------------------------
Wireless Security
WPA-PSK/WPA2-PSK
Dimensions
112×84.7×39mm
----------------------------------------------------------------------------------------------------
Interfaces
1×10/100Mbps RJ45 Port
----------------------------------------------------------------------------------------------------
Button
RESET/WPS Button
----------------------------------------------------------------------------------------------------
Antenna Type
2×External Antennas
----------------------------------------------------------------------------------------------------
Power Consumption
9.2W
Certifications
CE, RoHS
----------------------------------------------------------------------------------------------------

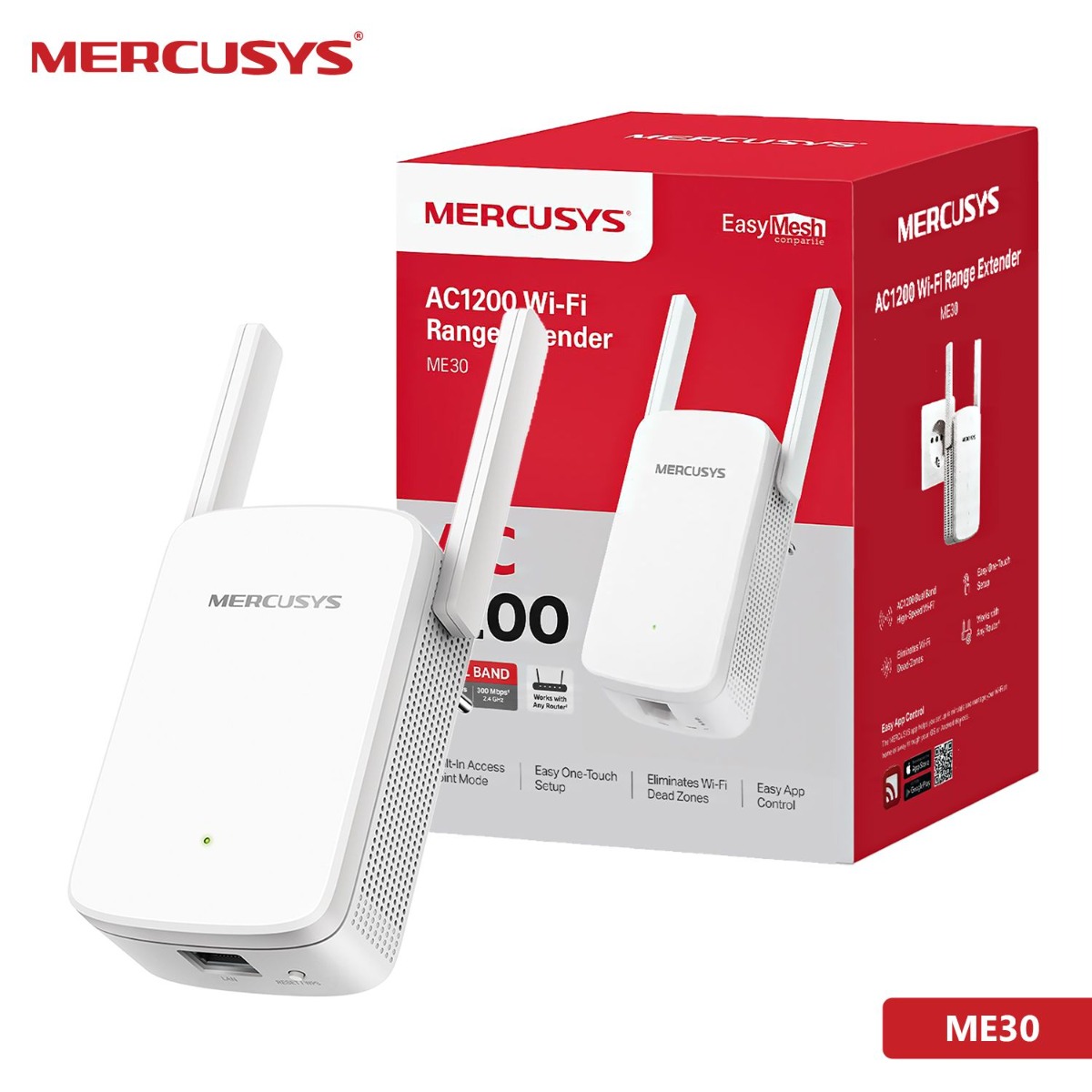

Package Contents
Wi-Fi Range Extender (ME30)
Quick Installation Guide
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
