Product Overview
- Brand: RELIFE.

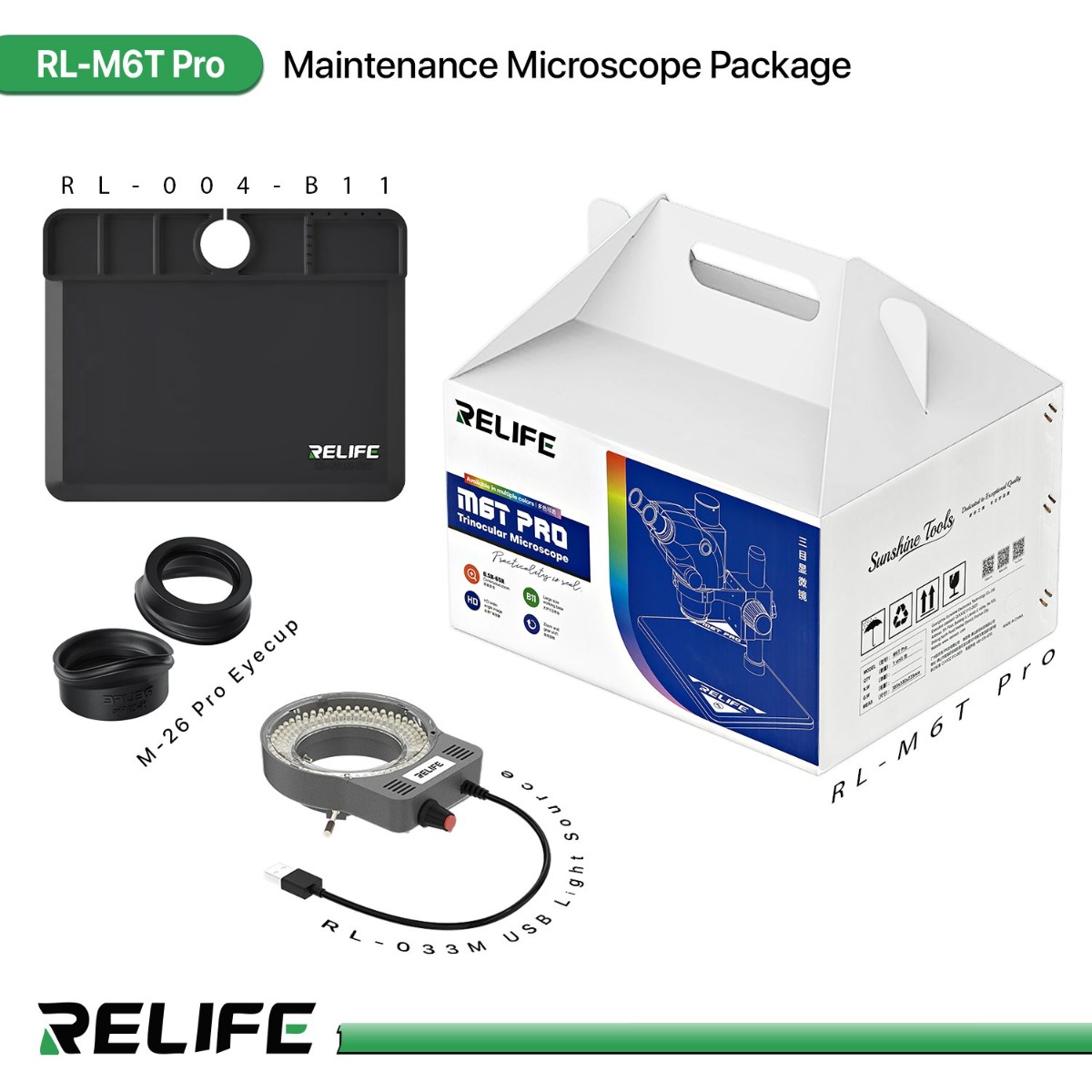

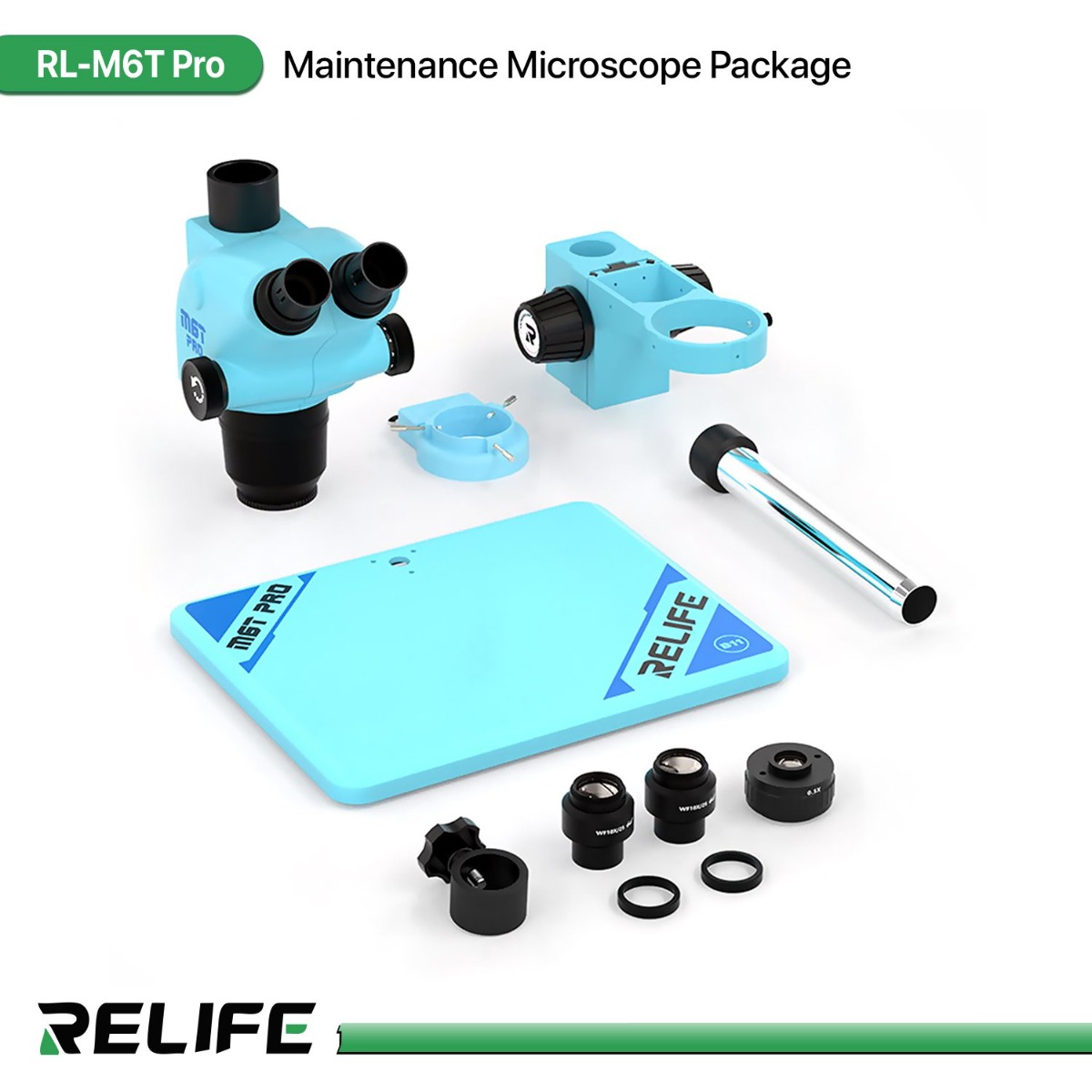

- 4 in 1 Microscope Package:
-
- RL-M6T Pro Microscope.
- RL-004M-B11 Microscope Base Insulation Pad.
- M-26 Pro Adjustable Eyepiece Eyecup.
- RL-033M Microscope USB Light.
- Uses:
-
- Mobile phone repair.
- Circuit Board (PCB) inspection.
- Precision instrument repair.
- Jewelry identification and fabrication.
- Any work requiring precise and high-definition viewing.
- Color: Black.

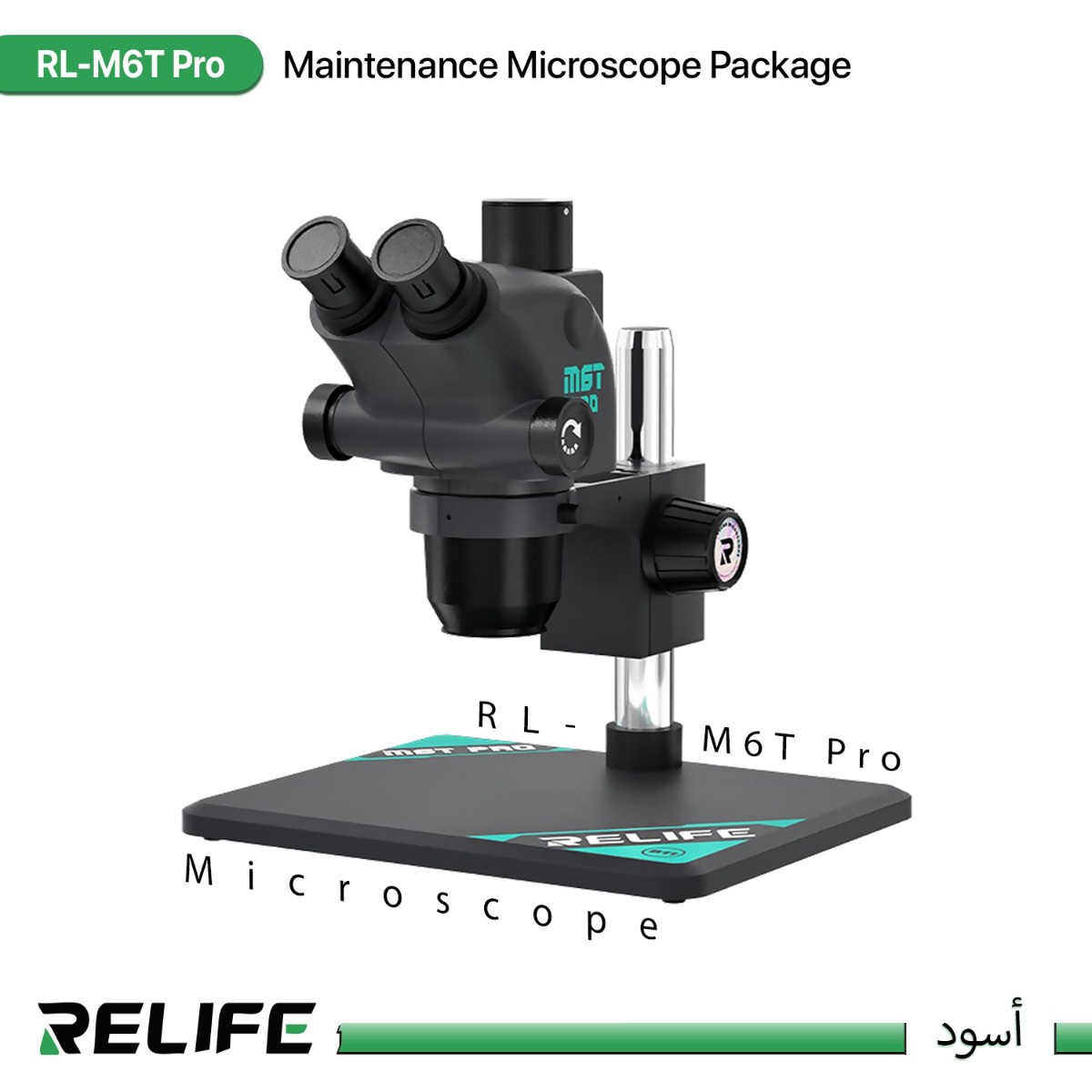

- Model: RL-M6T Pro.
- Type: Trinocular Microscope.

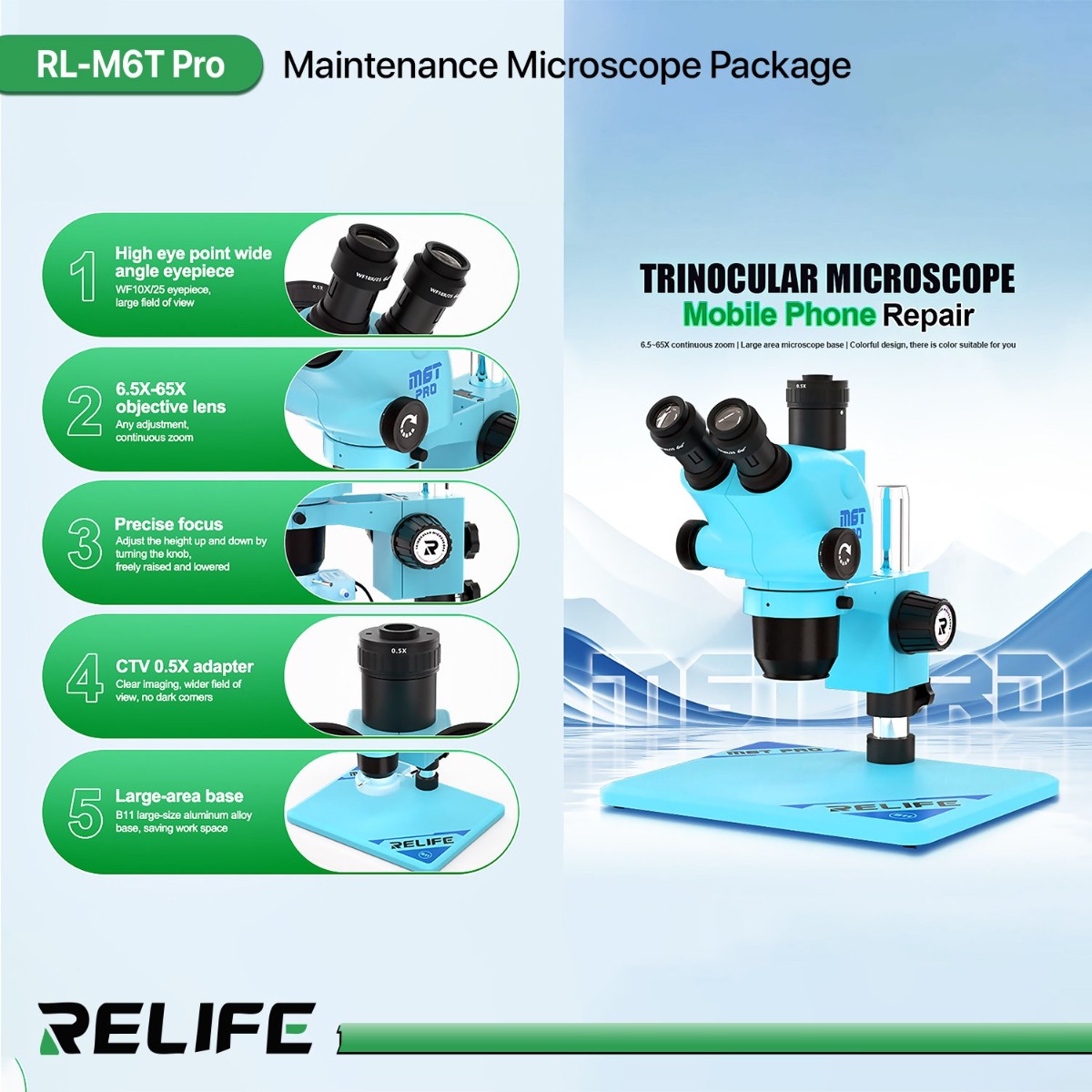

- Optical System:
-

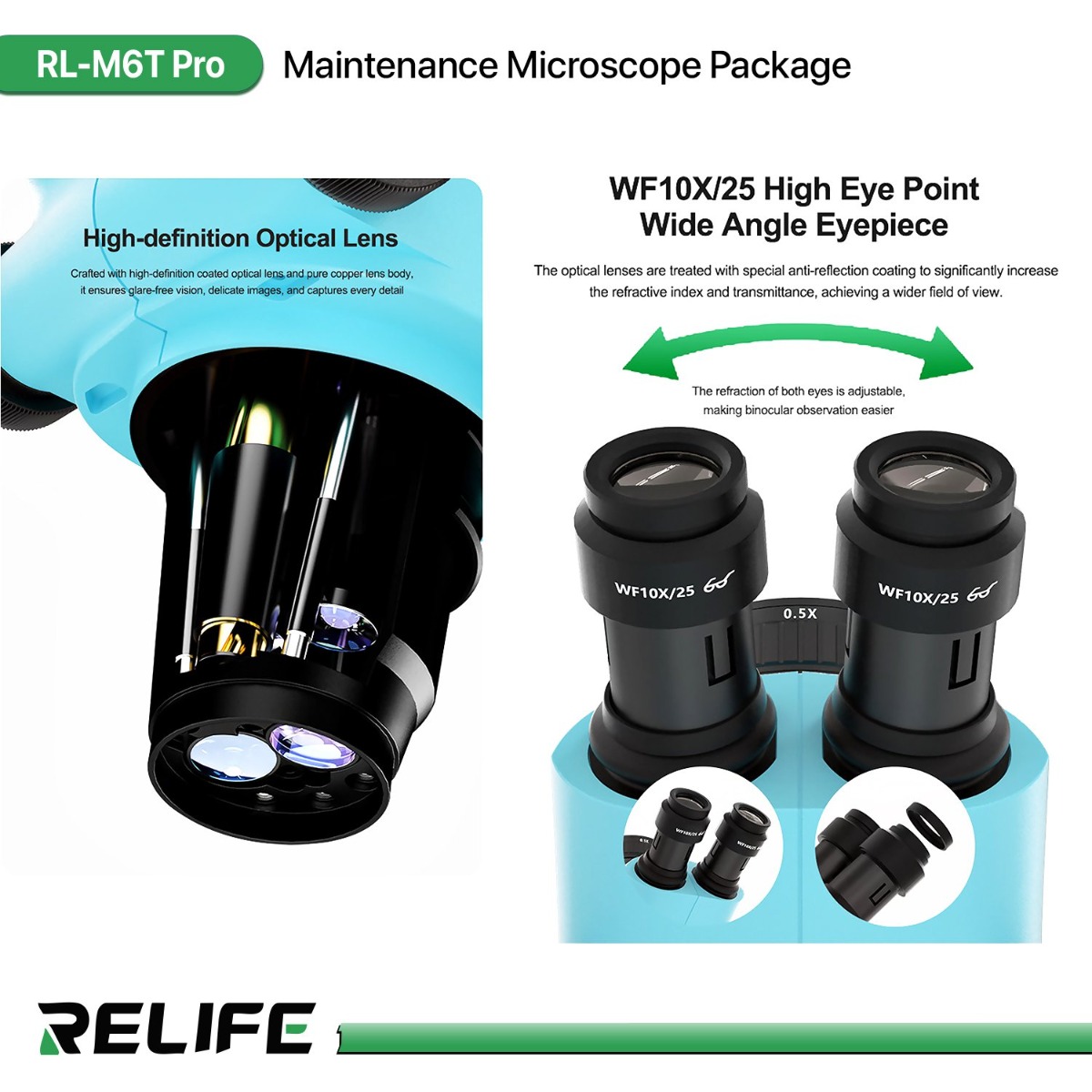

- WF10x/25 Wide-Angle Eyepiece: Anti-reflective coating for improved light transmission, resulting in a clearer view and finer details.

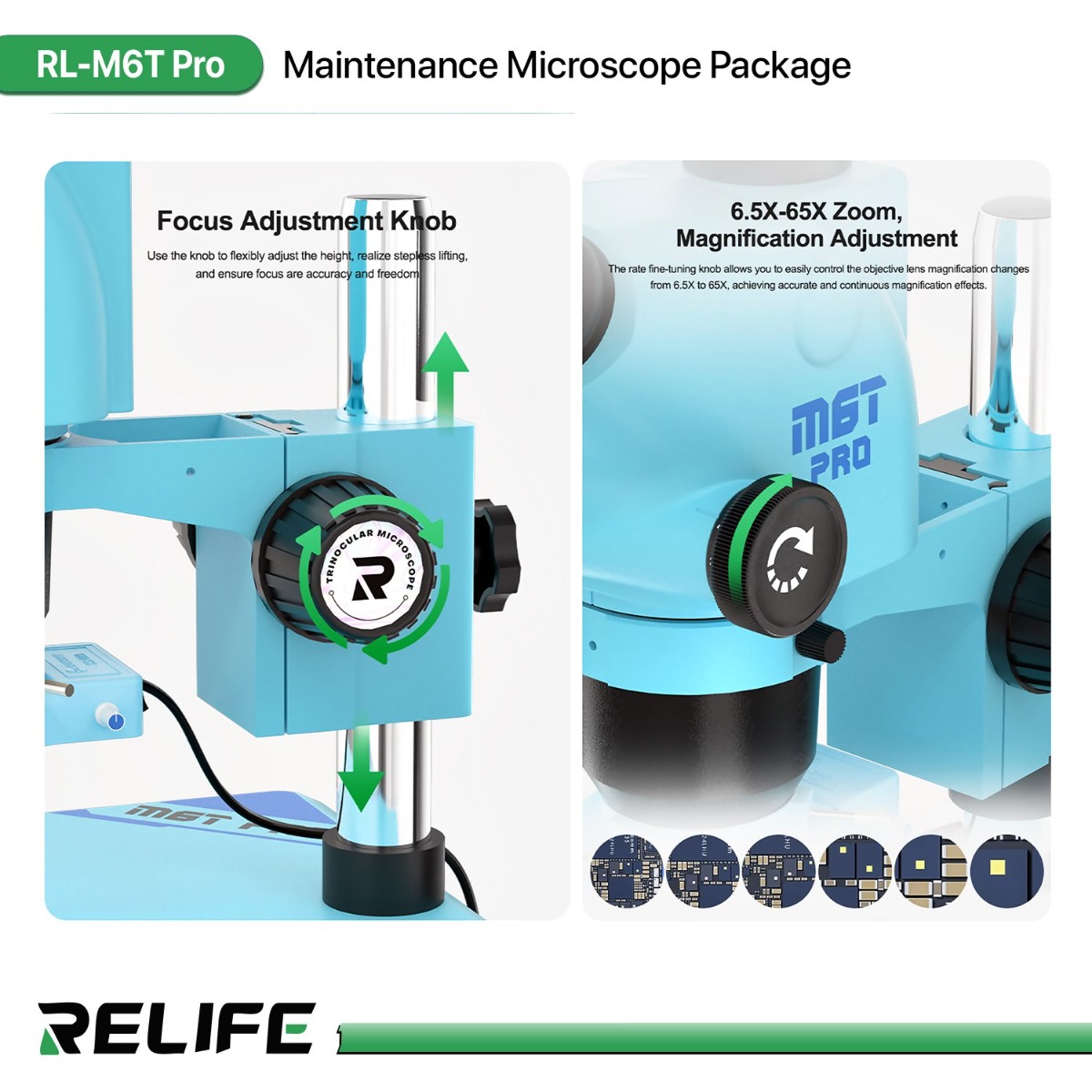

- 6.5X-65X Objective Lens with Continuous Magnification: Easily adjustable magnification with a precision knob for precise magnification adjustment.

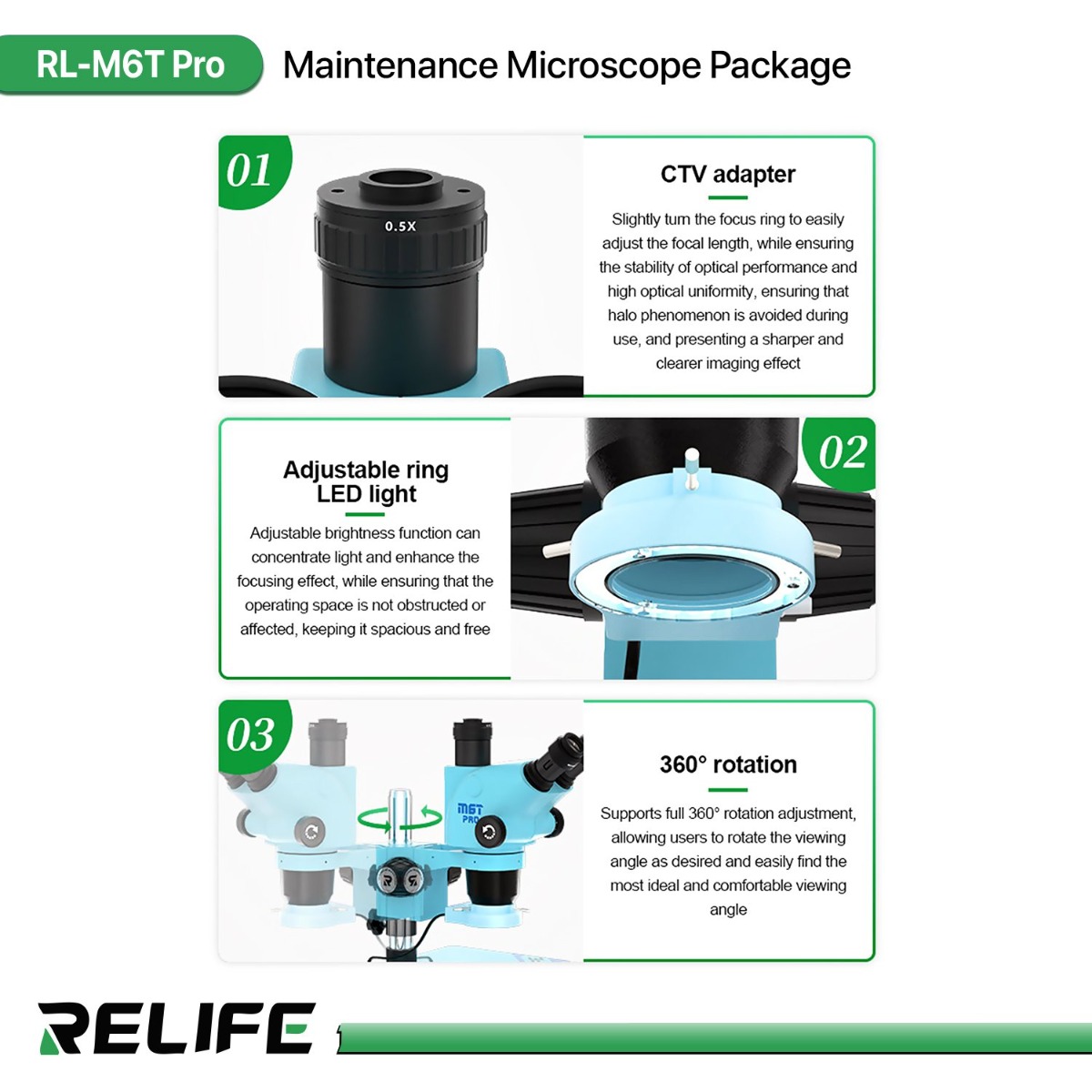

- 0.5X CTV Adapter: Provides clear imaging, a wider field of view, and no dark corners, with adjustable focus to avoid halos and achieve sharp images.
- High-Definition Optical Lens: Made of pure copper with a high-quality coating for glare-free viewing and sharp images.
- Adjustable Refractor Eyepiece: For easy binocular observation.
- Focus Adjustment and Control:
-
- Precision Focus Knob: Raise and lower the eyepiece freely with high precision by rotating the knob.

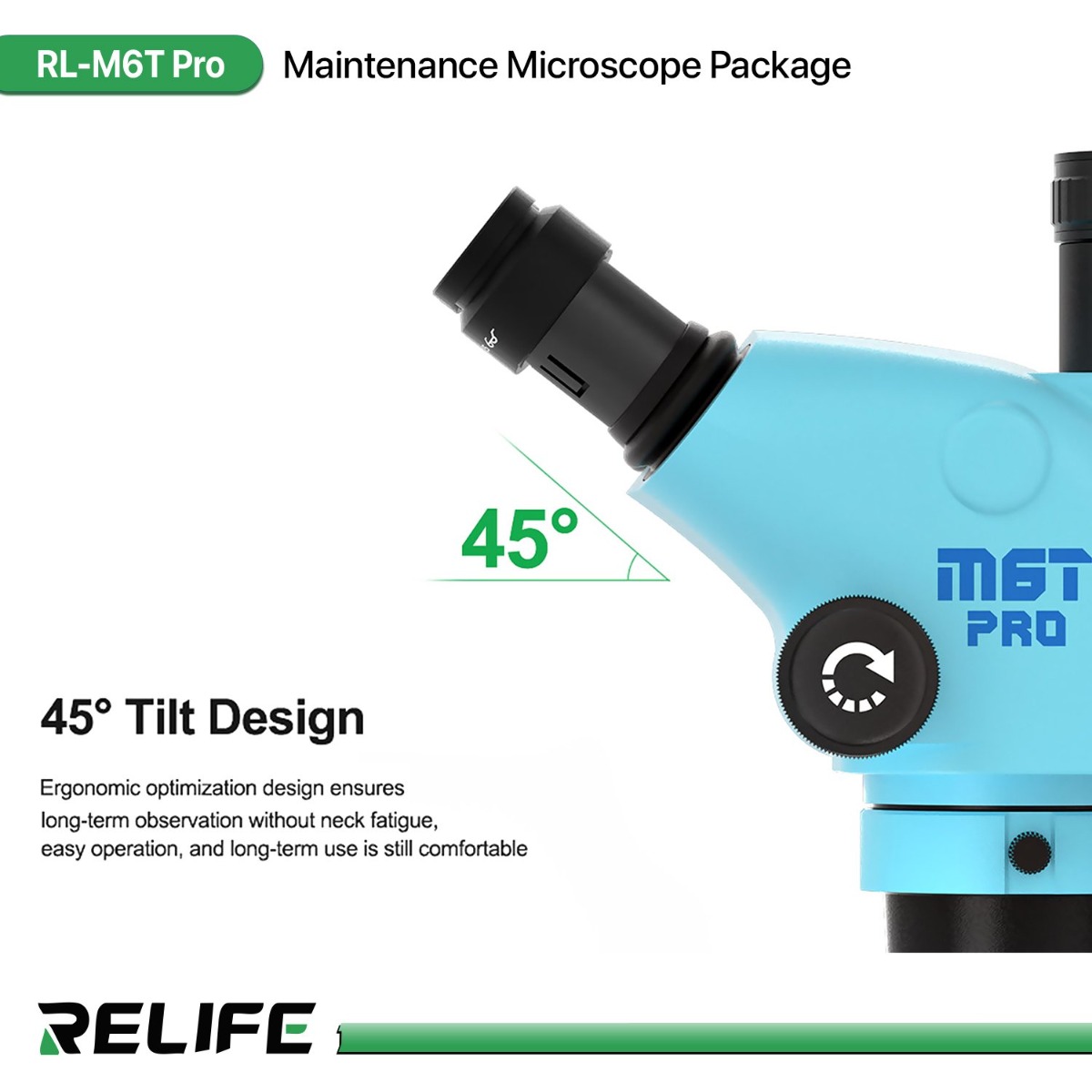

- Ergonomic 45° Angle Design: Allows for extended observation without neck strain. 360° Rotation: Fully rotates the viewing angle to find the most comfortable viewing position.
- Adjustable LED Lighting: Focuses light without compromising the workspace.
- Base and Construction:
-

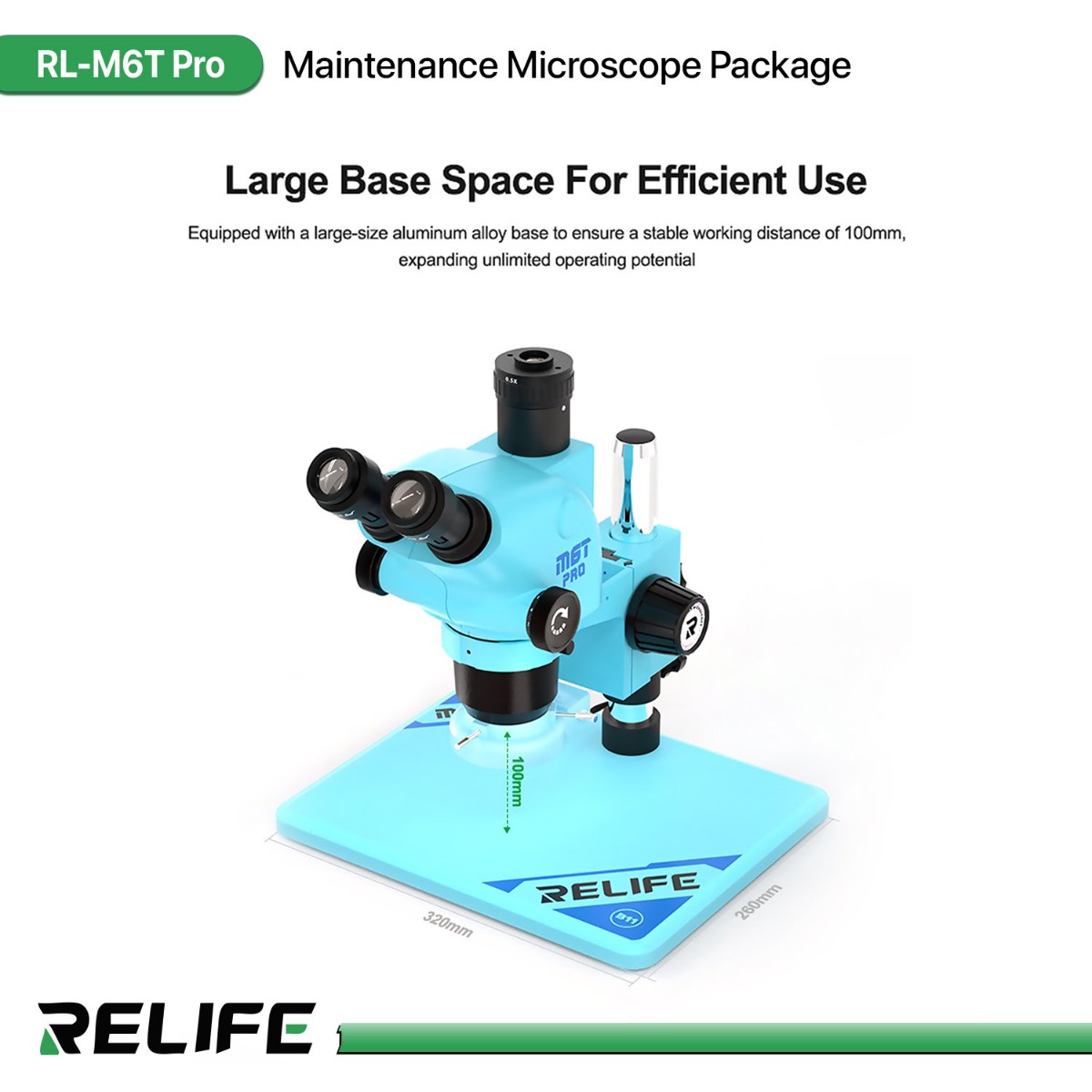

- Large Aluminum Base (B11): Stable and provides ample workspace, supporting a working distance of up to 100 mm.

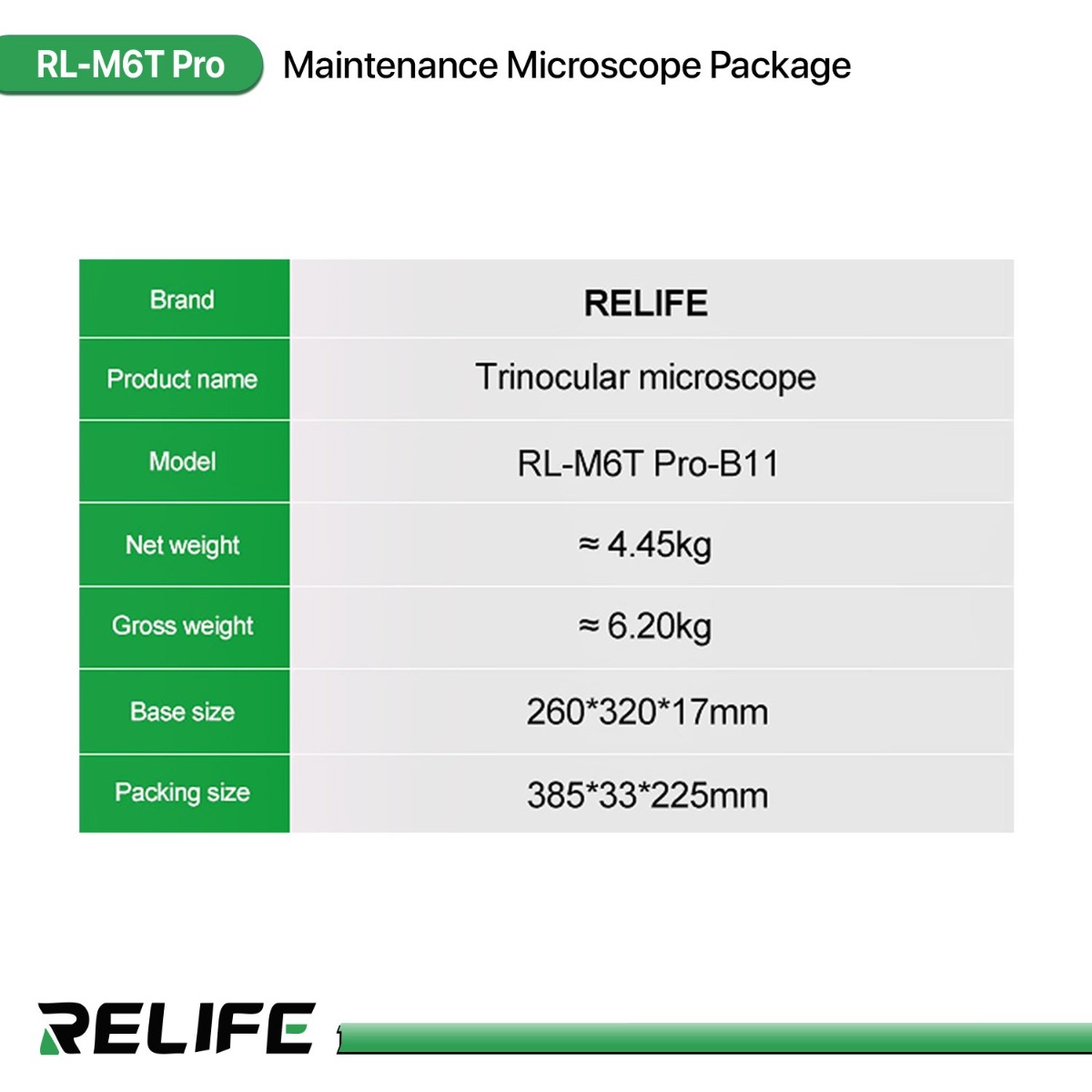

- Net Weight: Approx. 4.45 kg.
- Gross Weight: Approx. 6.20 kg.
- Base Dimensions: 260 x 320 x 17 mm.
- Packaging Dimensions: 385 x 330 x 225 mm.

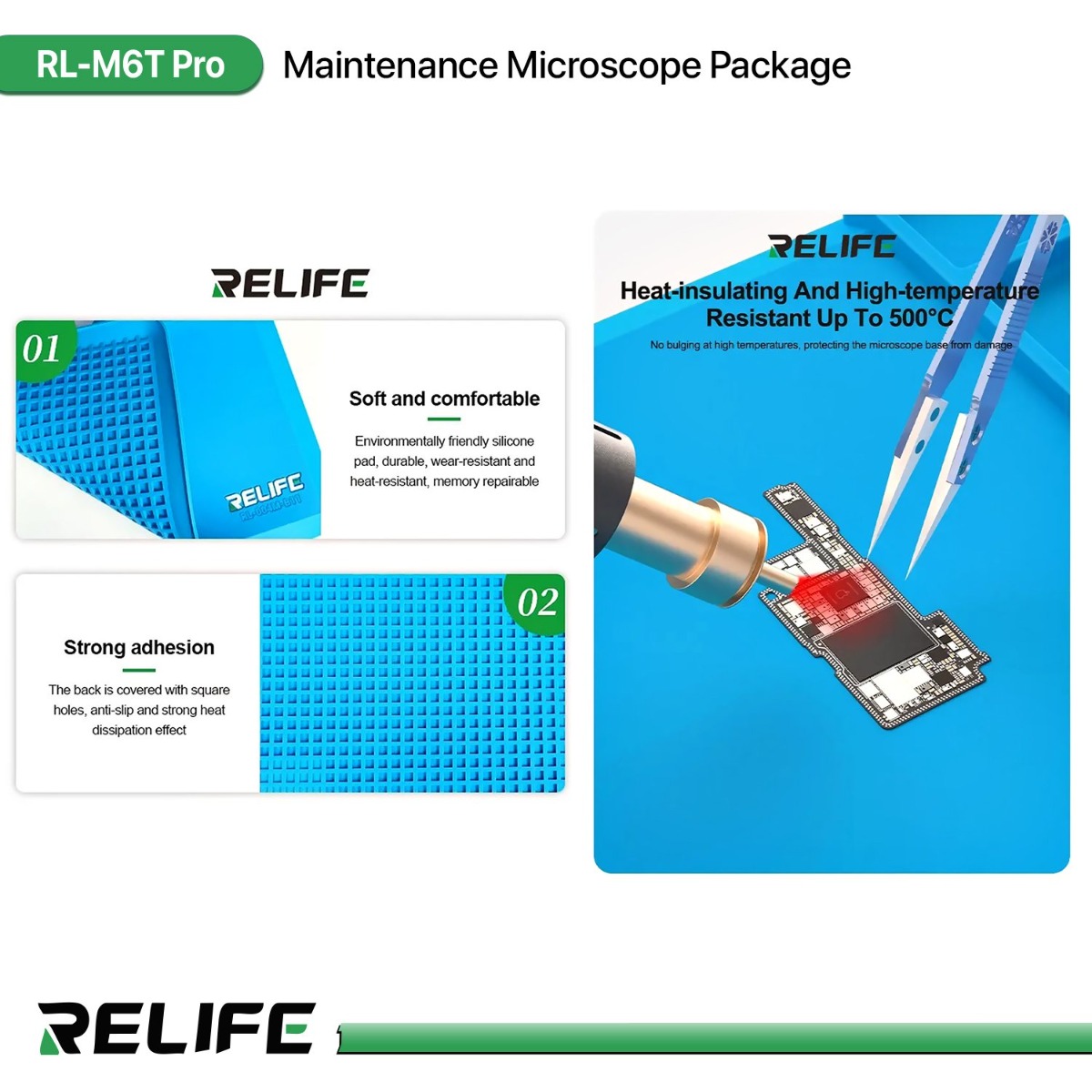

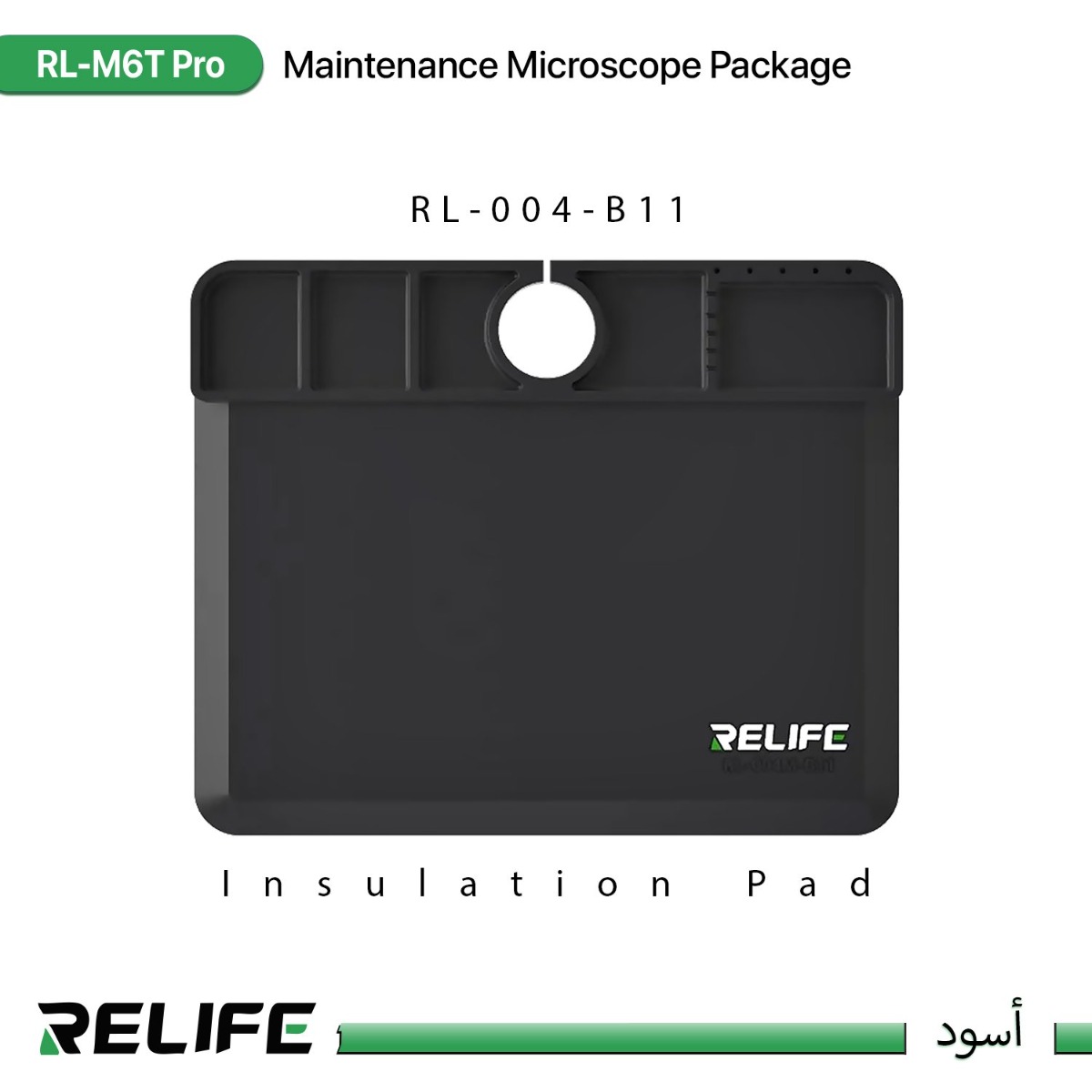

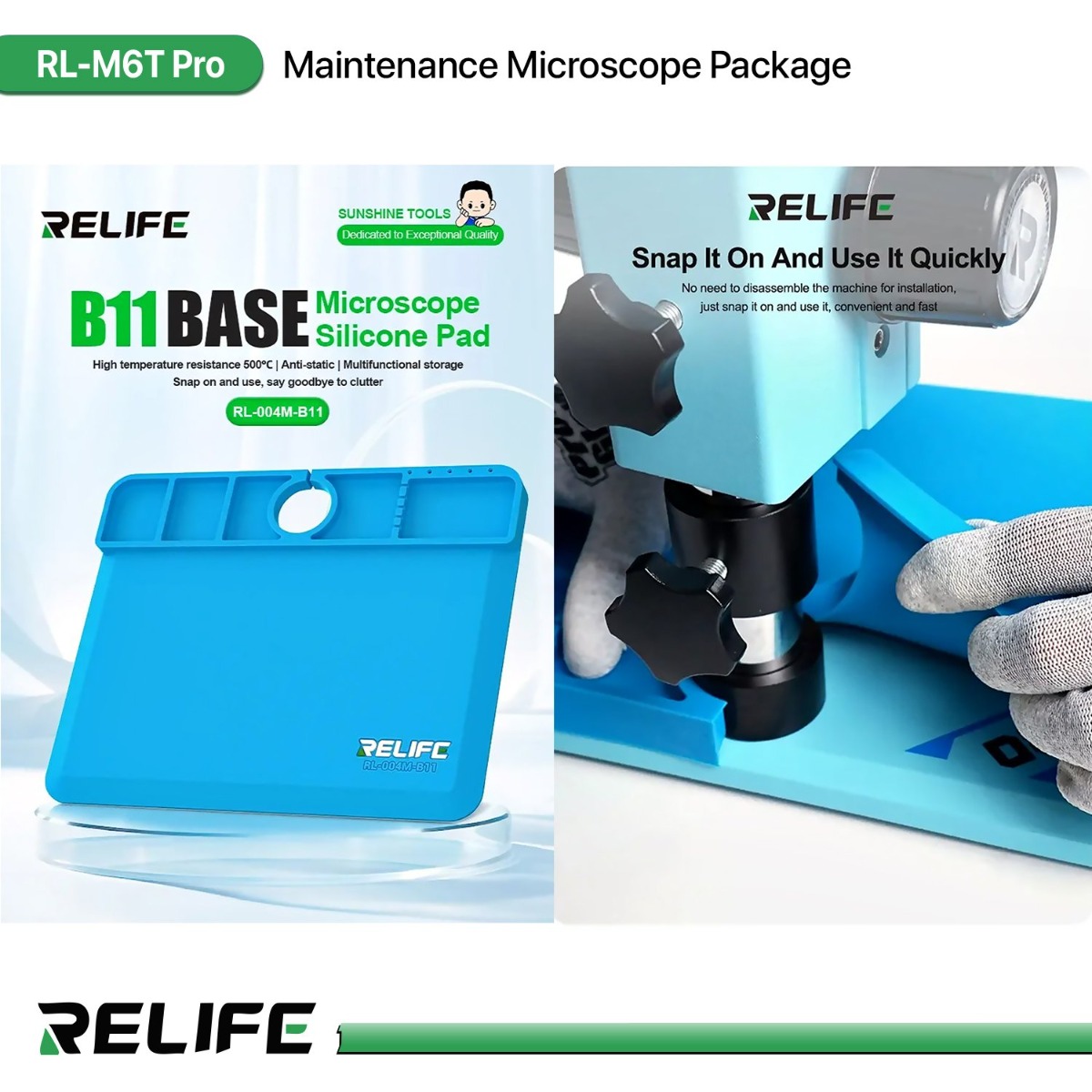

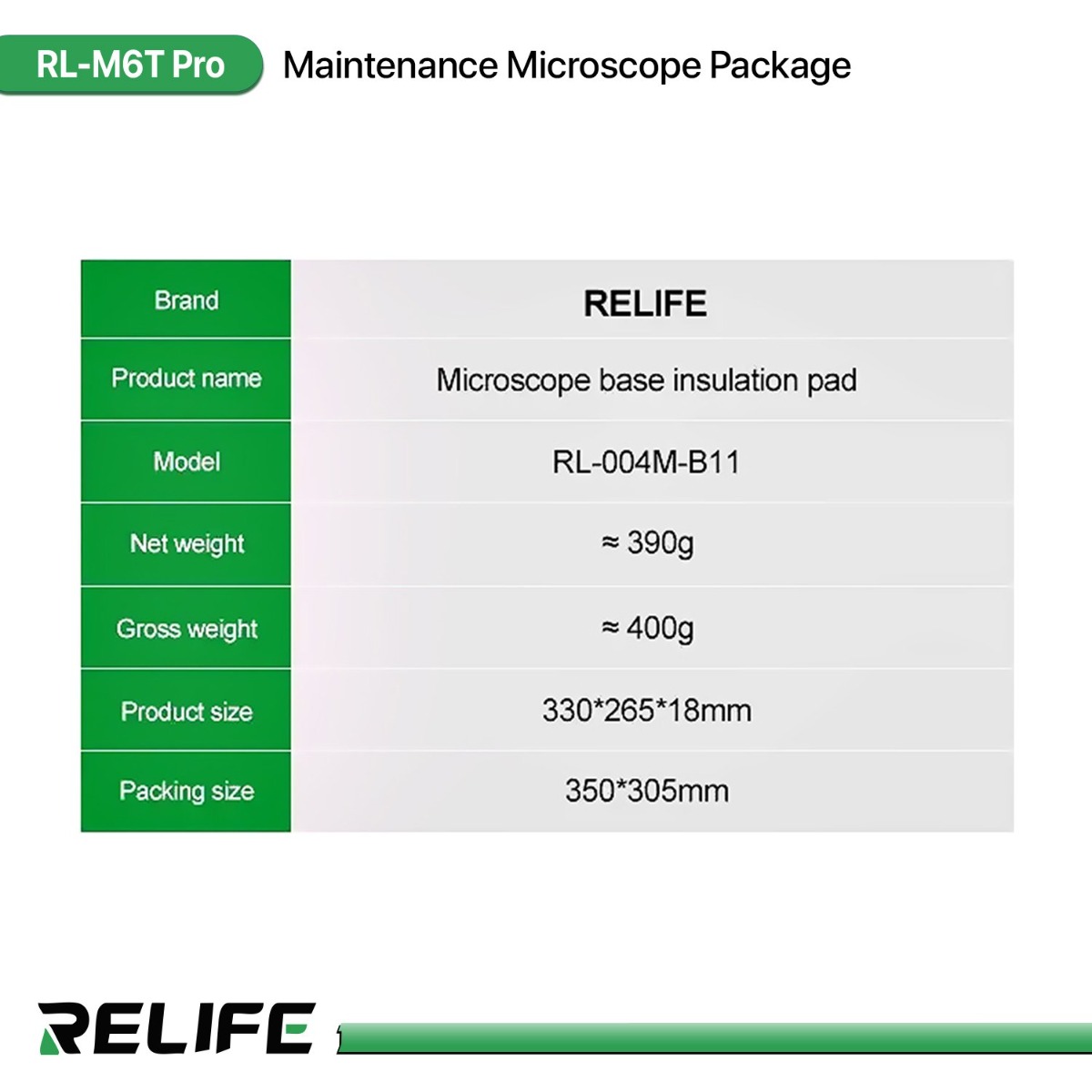

- Model: RL-004M-B11.
- Type: Insulation pad for a microscope base.

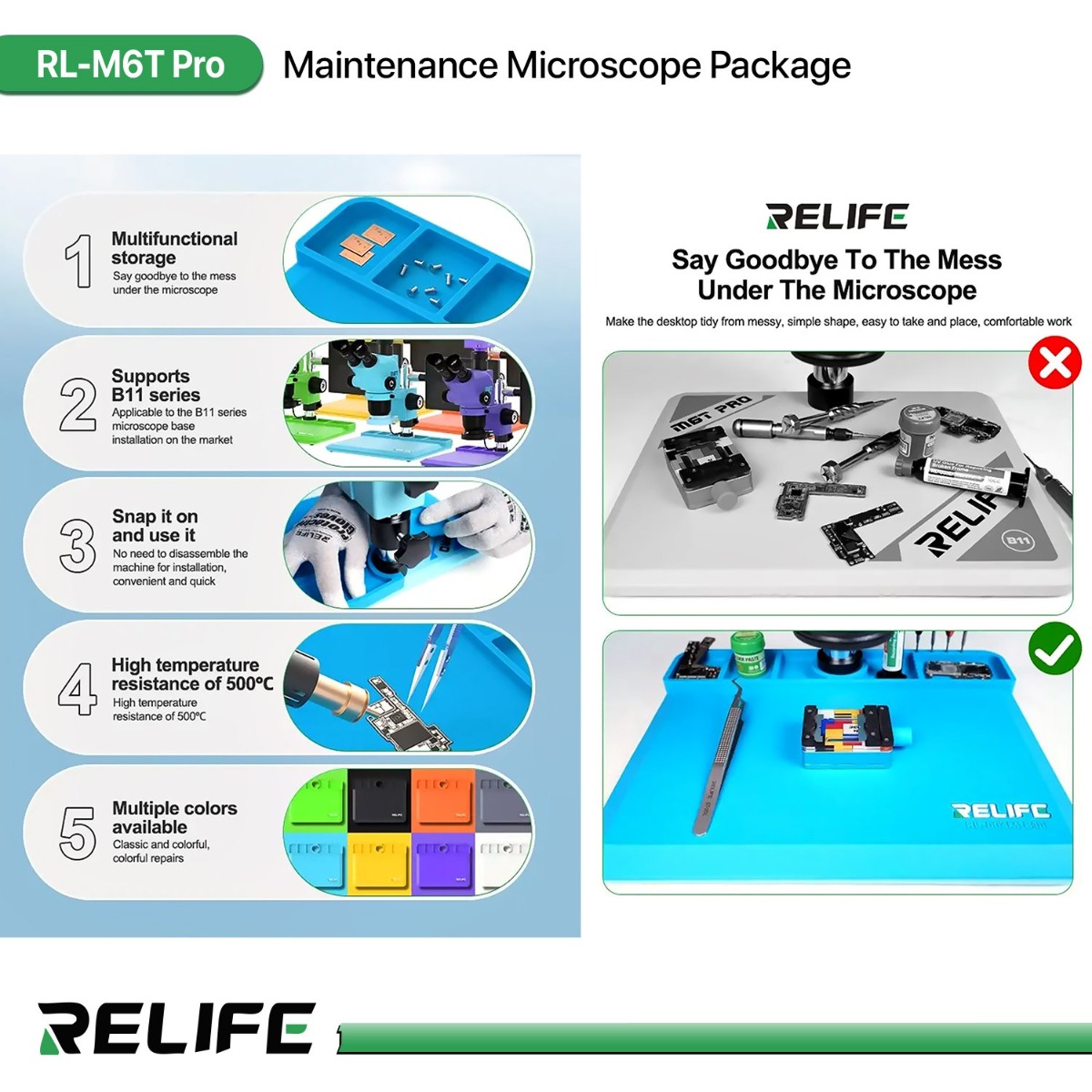

- A multi-functional silicone pad for organizing your microscope workspace and eliminating clutter.
- Compatible with B11 series microscope bases, it's easy to install without disassembling the microscope (direct mounting).
- Made of eco-friendly silicone, it's soft, durable, and resistant to wear and heat up to 500°C.
- It offers high stability thanks to its non-slip square groove design and efficient heat dissipation.

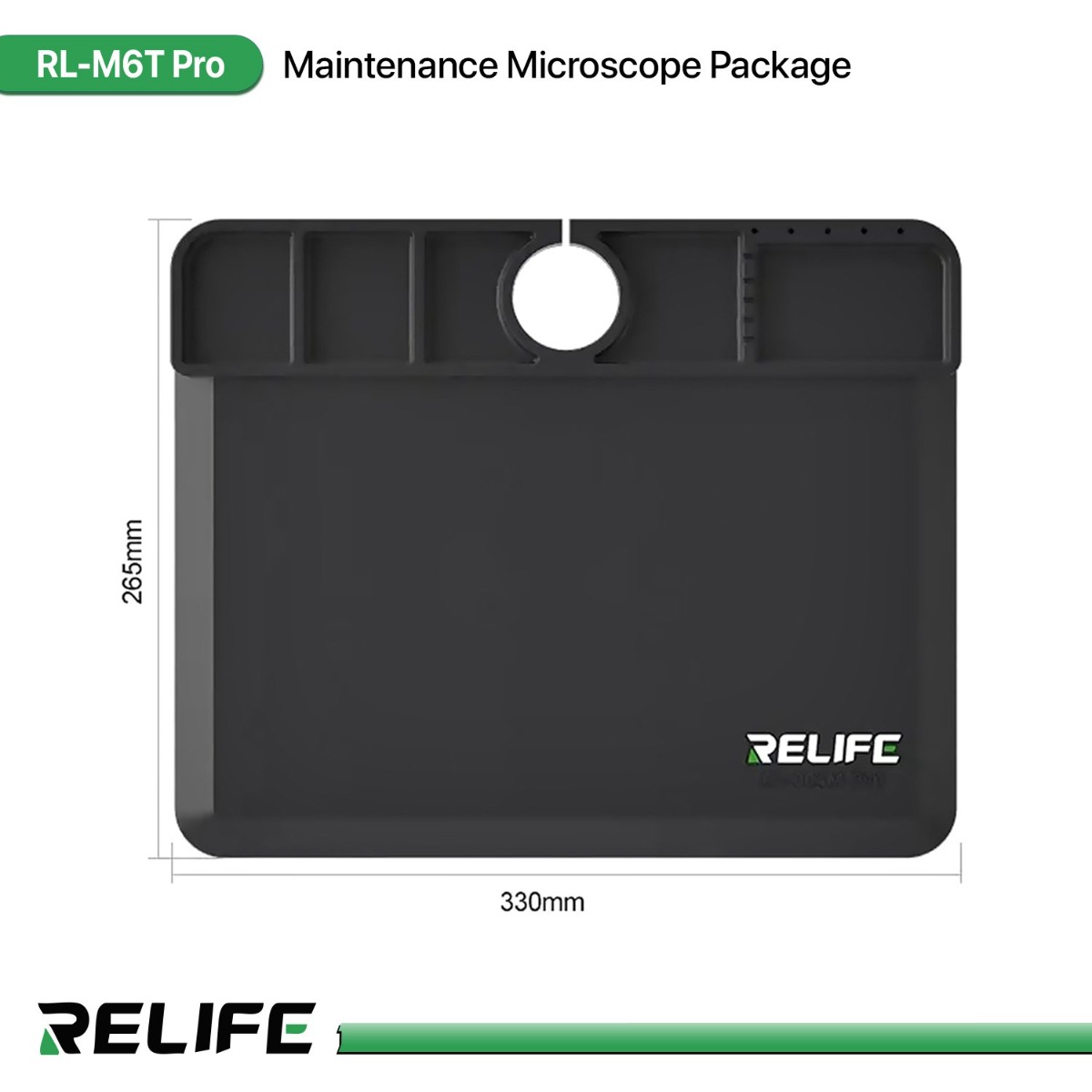

- Product size: 330 × 265 × 18mm.
- Net weight: ~ 390g.
- Gross weight: ~ 400g.

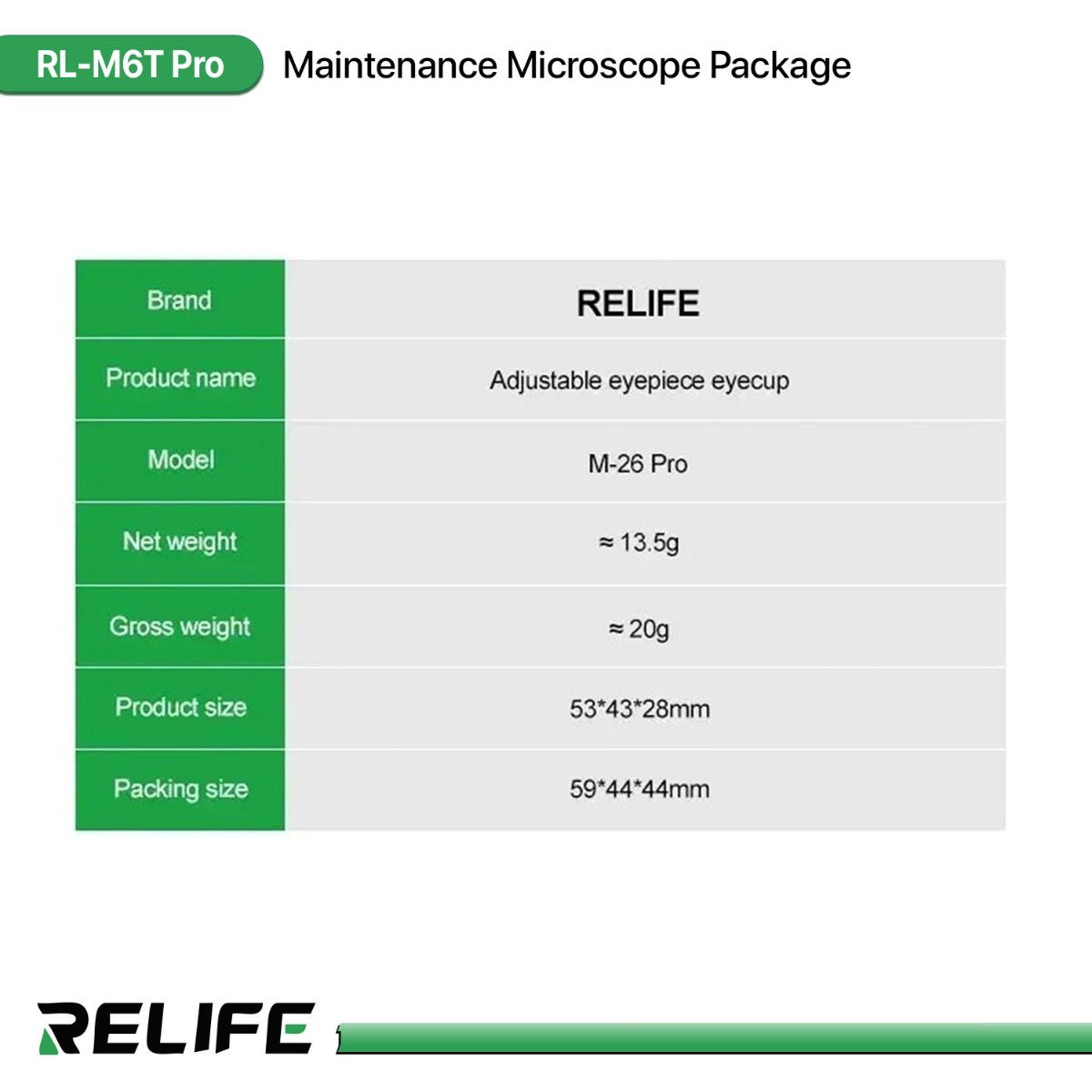

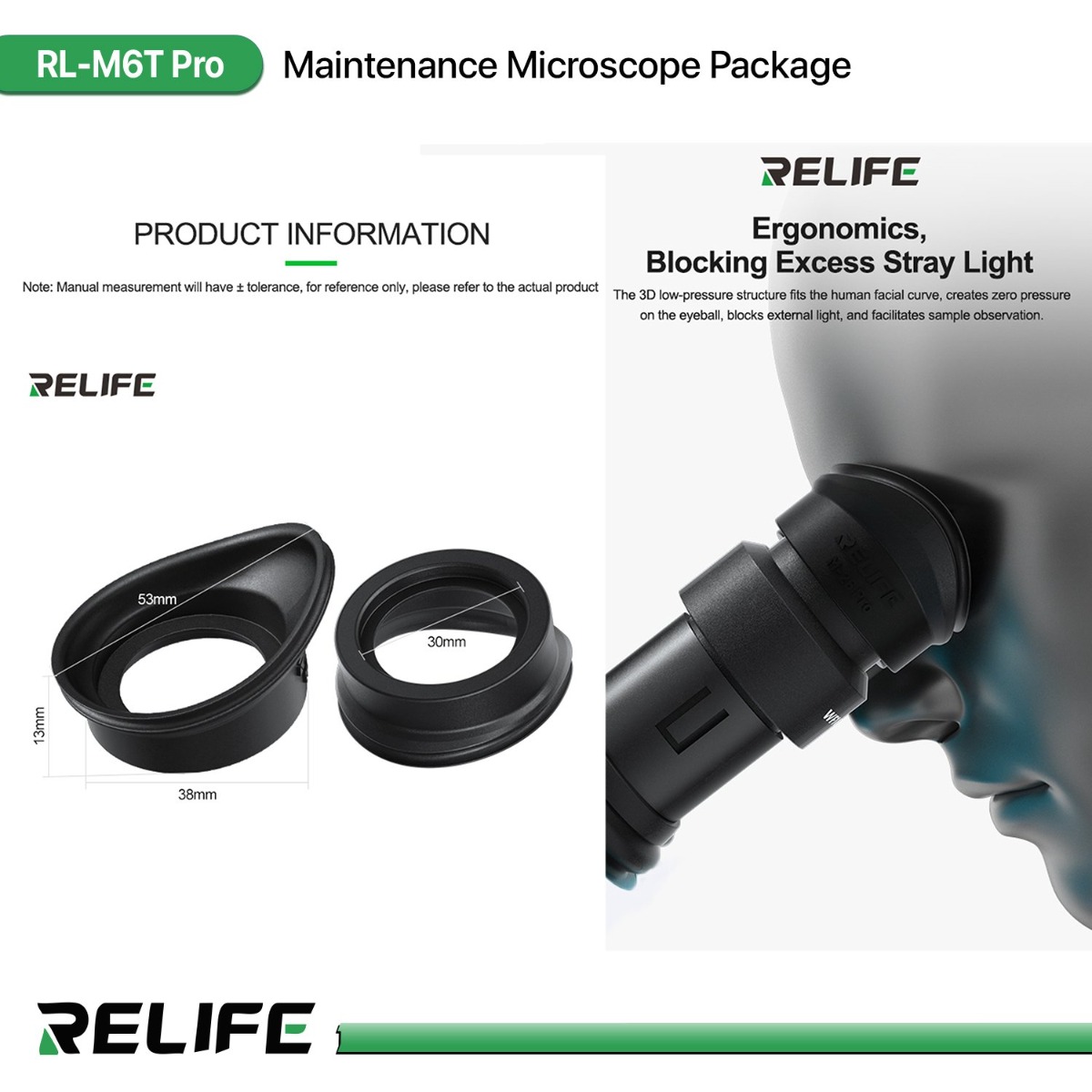

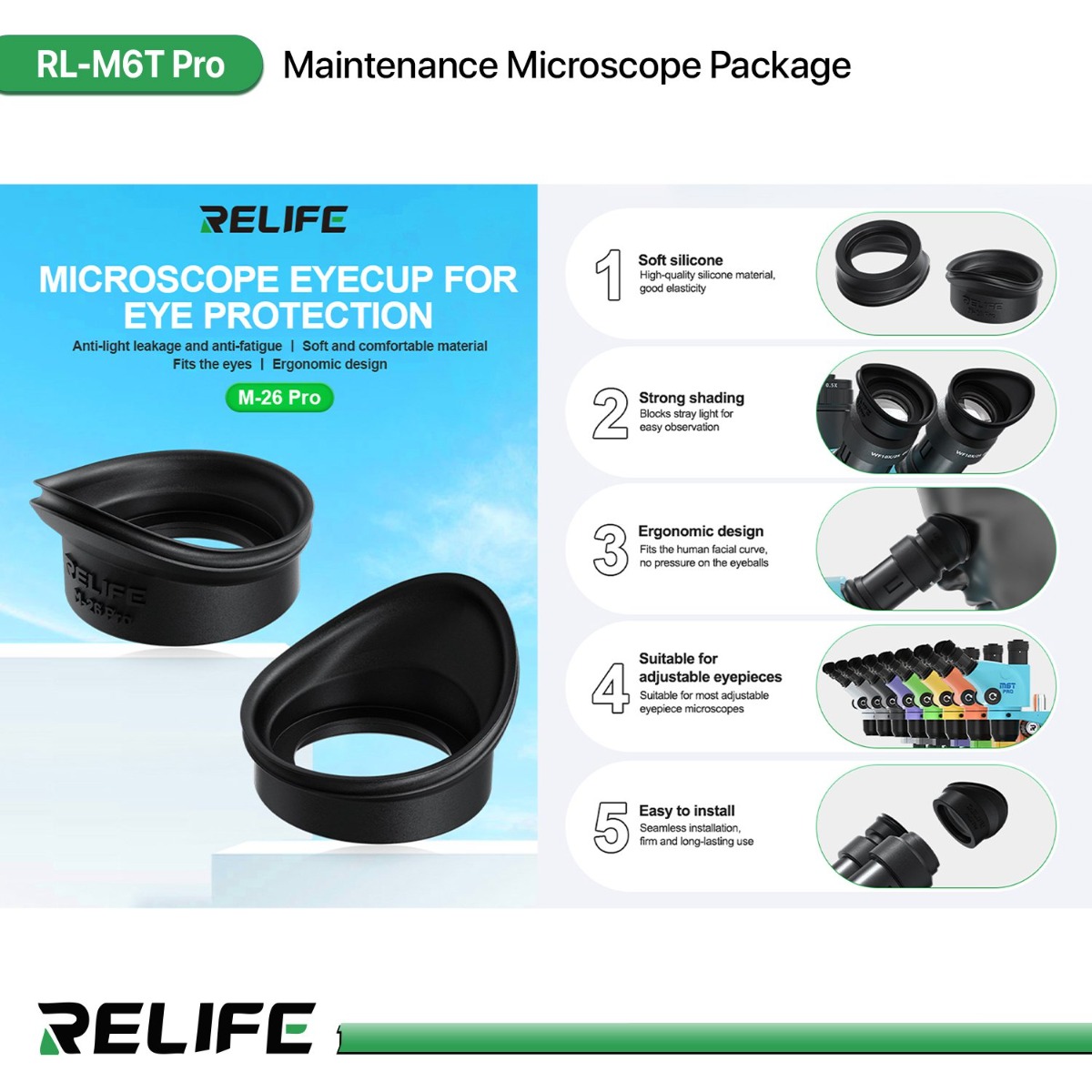

- Model: M-26 Pro.
- Type: Adjustable Eyepiece Eyecup.
- Anti-light leakage and anti-fatigue.
- Soft and comfortable Silicone material.
- Fits the eyes Ergonomic design.
- Product size: 53 × 43 × 28mm.
- Net weight: ~ 13.5g.
- Gross weight: ~ 20g.

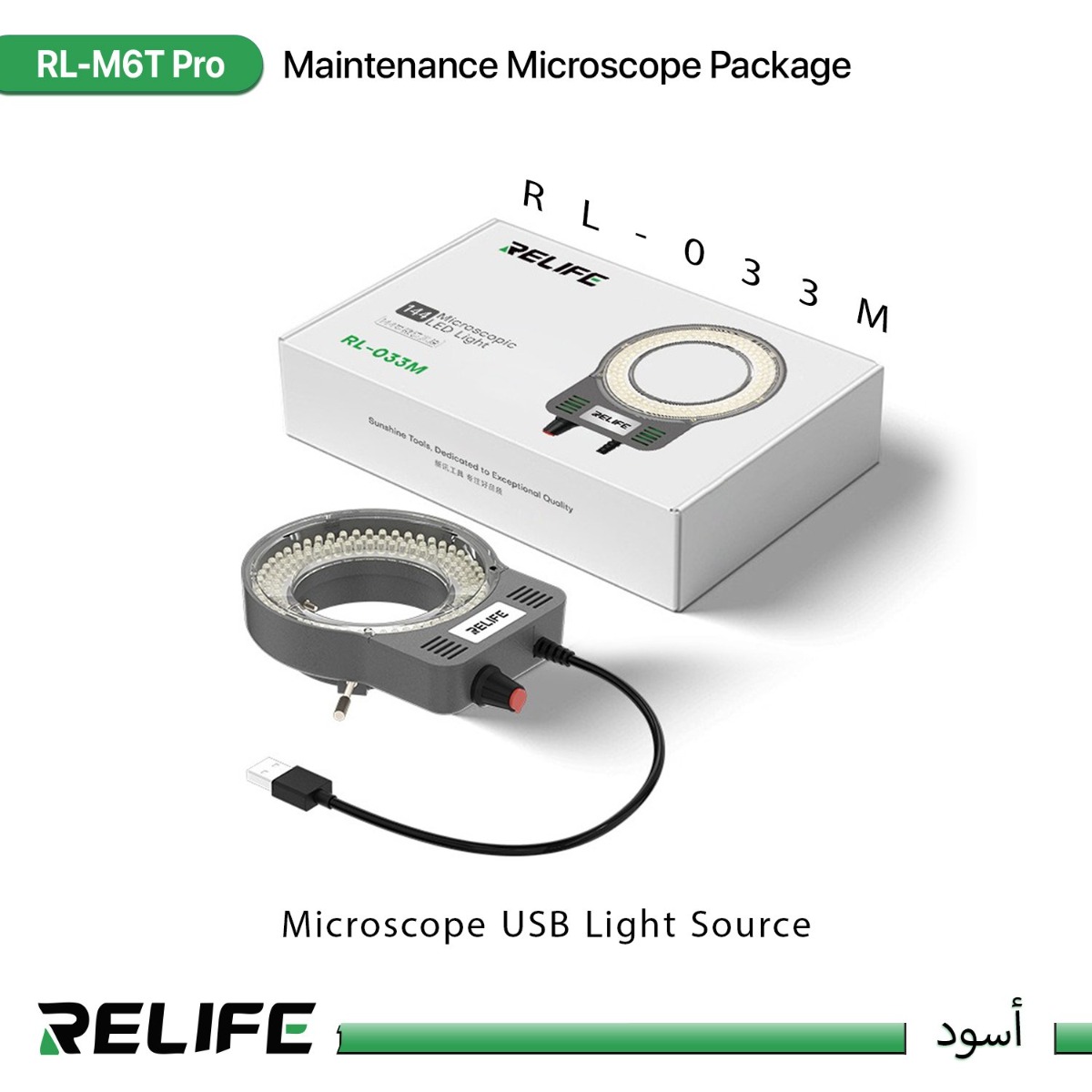

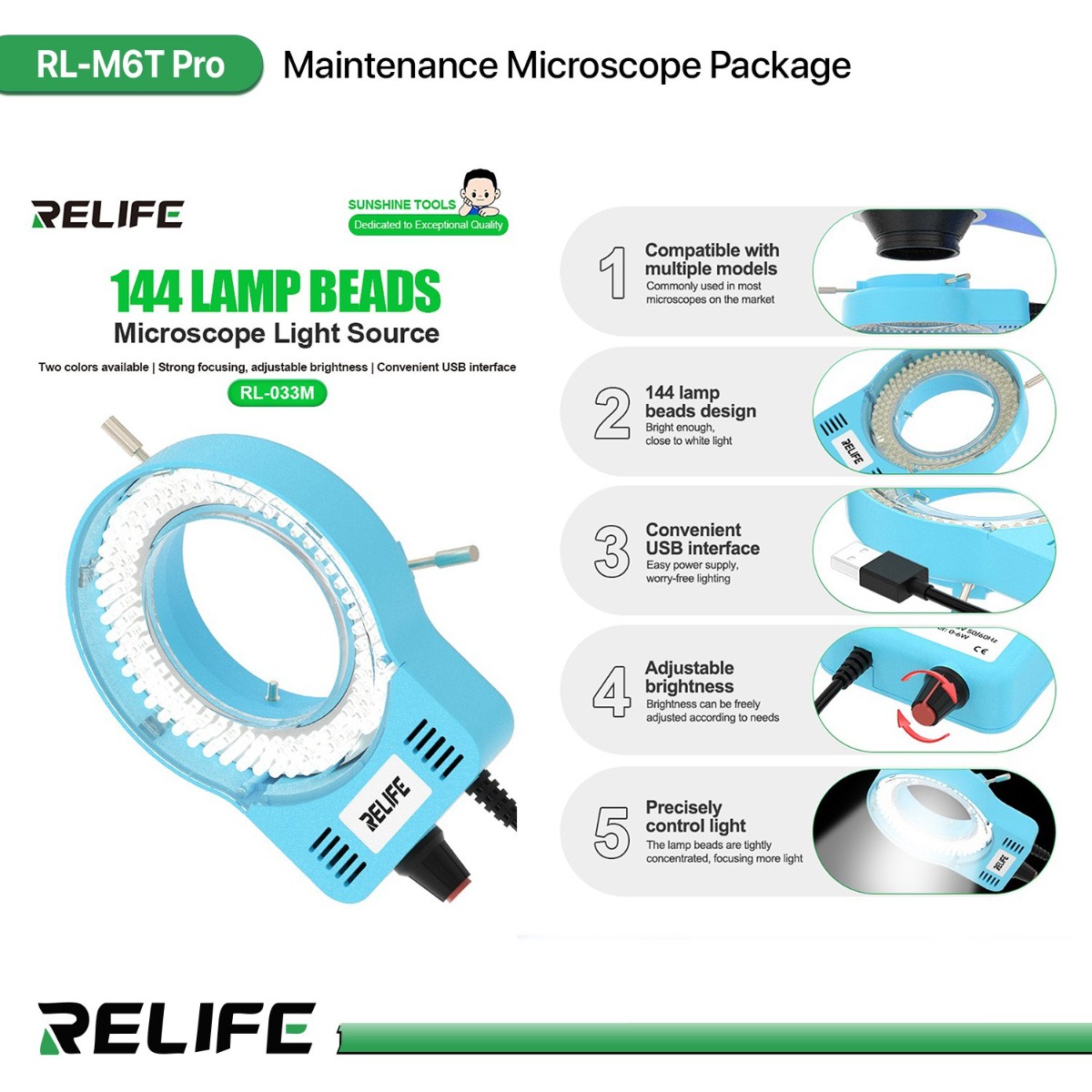

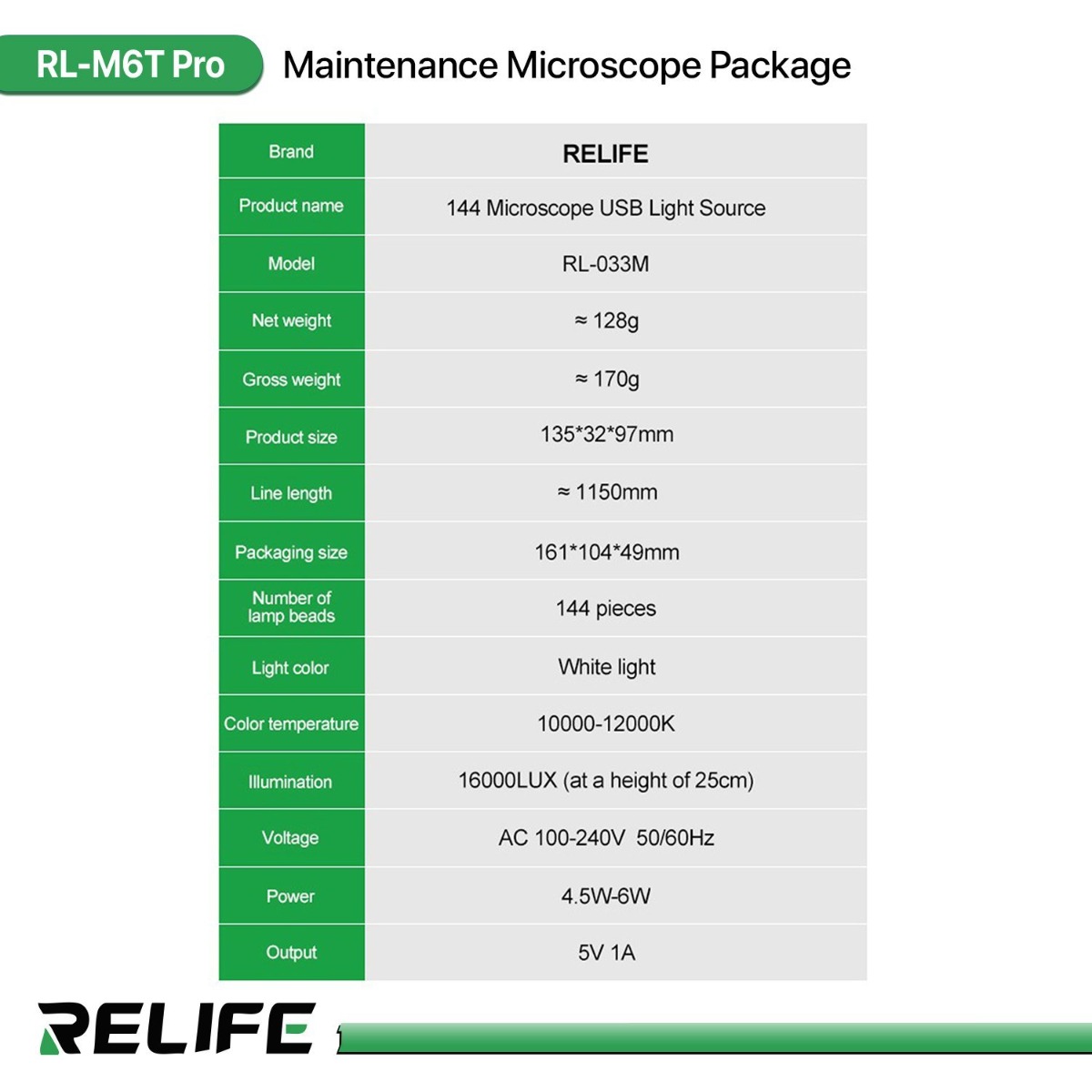

- Model: RL-033M.
- Type: Microscope USB Light Source.
- Number of lamp beads: 144 Pieces.
- Light color: White light.
- Color temperature: 10000-12000K.
- Illumination: 16000LUX (at a height of 25cm).
- Voltage: AC 100-240V 50/60Hz.
- Power: 4.5W - 6W.
- Output: 5V - 1A.
- Powerful microscope illumination with high focus and adjustable brightness to suit various working needs.
- Features 144 LEDs with bright, near-white light for viewing the finest details.
- Compatible with most microscopes on the market and powered via USB for easy, uncomplicated operation.
- Precise light distribution ensures better light control and sharper focus on the work area.
- Cable Length: ~ 1150mm.
- Product size: 135 × 32 × 97mm.
- Net weight: ~ 128g.
- Gross weight: ~ 170g.
