Product Overview
Brand: TP-Link
Model: AX53

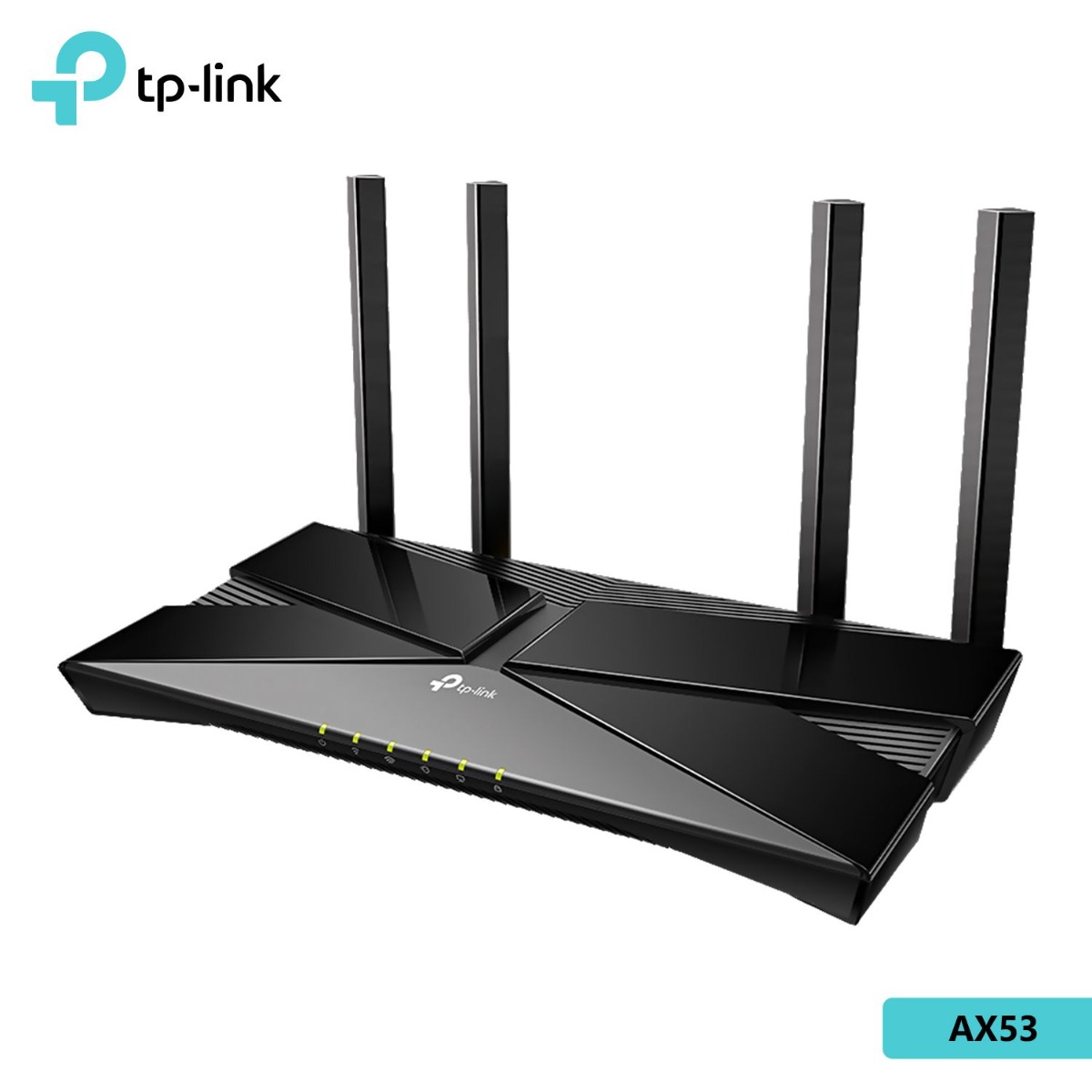

AX3000 Dual Band Gigabit Wi-Fi 6 Router
Next-Gen Gigabit Wi-Fi 6 Speed - 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads
Connect More Devices - OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices
Ultra-Low Latency - Enables more responsive gaming and video chatting
Expanded Wi-Fi Coverage - Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home
TP-Link HomeShield - Enhanced security defends against the latest cyber threats
Improved Battery Life - Target Wake Time helps your devices to communicate more while consuming less power
Compatible with Alexa - Control your router via voice commands and make your life smarter and easier with Amazon Alexa
EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Standards and Protocols: Wi-Fi 6
IEEE 802.11ax/ac/n/a 5GHz
IEEE 802.11ax/n/b/g 2.4GHz
----------------------------------------------------------------------------------------------------
Wi-Fi Speeds: AX3000
5GHz: 2402Mbps (802.11ax, HE160)
2.4GHz: 574Mbps (802.11ax)
----------------------------------------------------------------------------------------------------
Wi-Fi Range: 2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
----------------------------------------------------------------------------------------------------
Wi-Fi Capacity: High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
----------------------------------------------------------------------------------------------------
Wi-Fi Reception Sensitivity
2.4GHz
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS8:-74dB
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dB
11ax HE20_MCS0:-96dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm
11ax HE40_MCS11:-63dBm
5GHz
11ac VHT20_MCS0:-97dBm
11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm
11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-97dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-94dBm
11ax HE40_MCS11:-63dBm
11ax HE80_MCS0:-91dBm
11ax HE80_MCS11:-61dBm
11ax HE160_MCS0:-87dBm
11ax HE160_MCS11:-58dBm
----------------------------------------------------------------------------------------------------
Wi-Fi Transmission Power
CE
<20dBm (2.4GHz)
<23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.725GHz)
----------------------------------------------------------------------------------------------------
Working Modes
Router Mode
Access Point Mode
Protocols
IPv4 , IPv6
----------------------------------------------------------------------------------------------------
Service Kits
HomeShield routers and Deco Mesh products. It is a home networking protection kit that covers all security scenarios with its network security, parental controls, QoS, and comprehensive reports. With its security function, users’ networks are well protected. Also, HomeShield’s parental controls build a safer, cleaner internet to help users explore the online world
----------------------------------------------------------------------------------------------------
EasyMesh
Mesh networking creates smooth, fast, stable roaming. Archer AX53 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability
----------------------------------------------------------------------------------------------------
Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
----------------------------------------------------------------------------------------------------
WAN Types
Dynamic IP , Static IP , PPPoE , PPTP , L2TP
----------------------------------------------------------------------------------------------------
Quality of Service
QoS by Device
----------------------------------------------------------------------------------------------------
Cloud Service
Auto Firmware Upgrade, OTA Firmware Upgrade , TP-Link ID , DDNS
----------------------------------------------------------------------------------------------------
NAT Forwarding
Port Forwarding , Port Triggering , DMZ , UPnP
----------------------------------------------------------------------------------------------------
IPTV
IGMP Proxy , IGMP Snooping , Bridge , Tag VLAN
----------------------------------------------------------------------------------------------------
DHCP
Address Reservation , DHCP Client List , Server
----------------------------------------------------------------------------------------------------
DDNS
TP-Link , NO-IP , DynDNS
----------------------------------------------------------------------------------------------------
Management
Tether App , Webpage
Dimensions (W×D×H)
10.2×5.3×1.6 in (260.2×135×41.6mm)
----------------------------------------------------------------------------------------------------

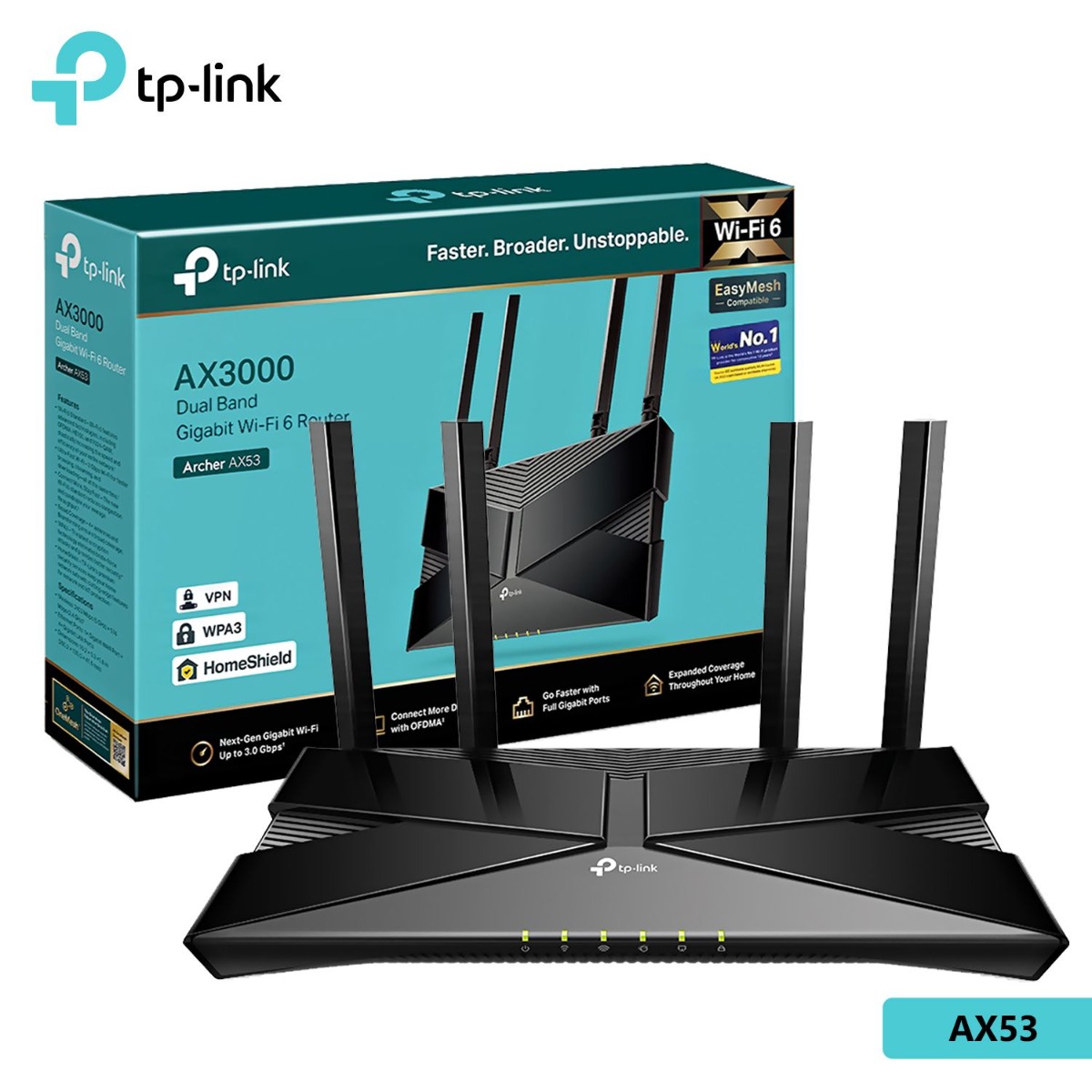

Package Contents
Wireless Router Archer AX53
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
----------------------------------------------------------------------------------------------------

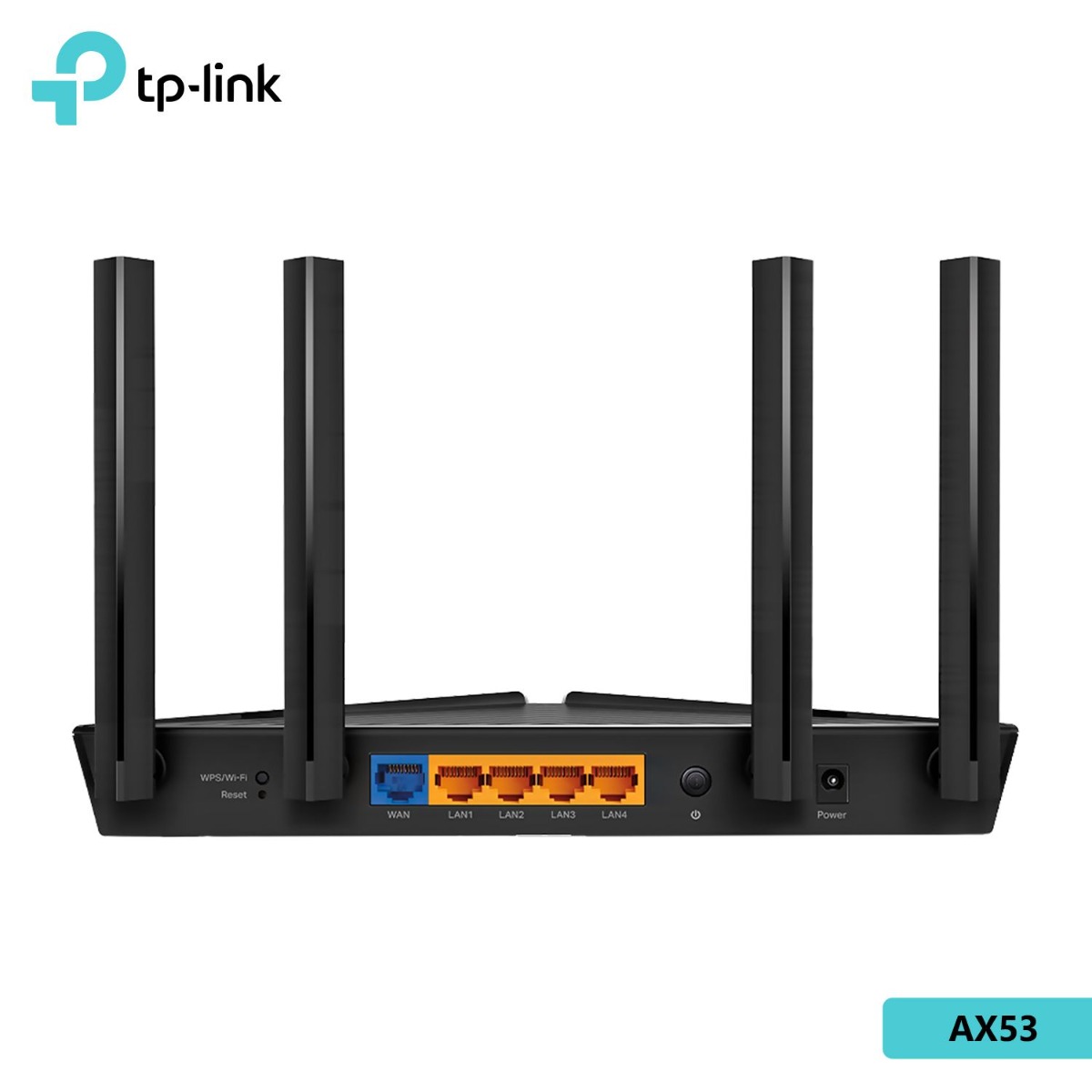

Ethernet Ports
1×Gigabit WAN Port
4×Gigabit LAN Ports
----------------------------------------------------------------------------------------------------
Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button
----------------------------------------------------------------------------------------------------
Power
EU Version: 12V⎓1A
Wi-Fi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise
----------------------------------------------------------------------------------------------------
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
----------------------------------------------------------------------------------------------------
Guest Network
1×5GHz Guest Network
1×2.4GHz Guest Network
----------------------------------------------------------------------------------------------------
VPN
Server
OpenVPN Server
PPTP VPN Server
WireGuard VPN Server
Client
Open VPN Client
PPTP VPN Client
WireGuard VPN Client (Only V2 Support)
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
----------------------------------------------------------------------------------------------------
Certifications
CE, RoHS
----------------------------------------------------------------------------------------------------
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
