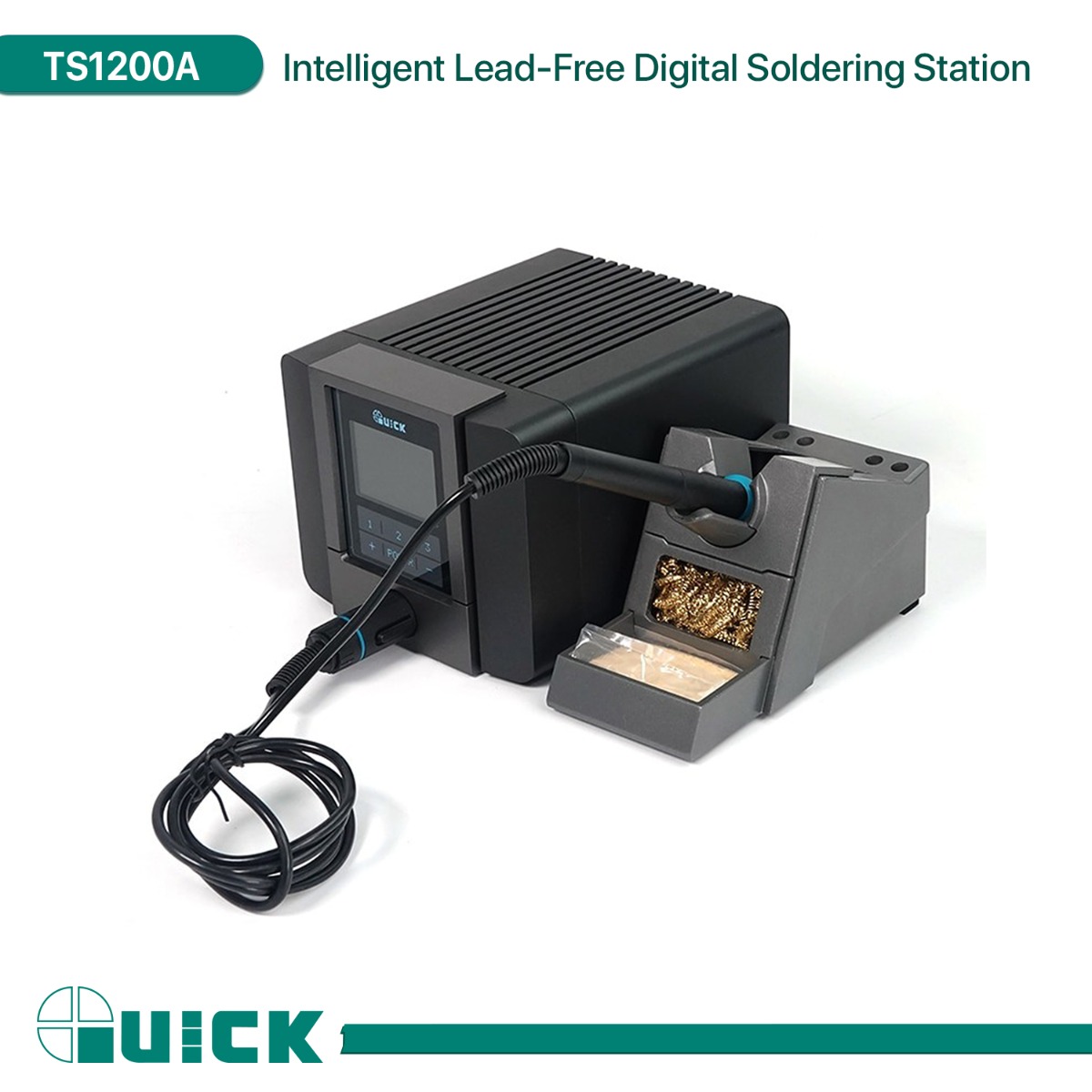

QUICK TS1200A Intelligent Lead-Free Digital Soldering Station

• Brand: QUICK.
• Model: TS1200A.
• Professional-grade soldering station designed for precise and reliable lead-free soldering.
• It features a large 1.9-inch full-color LCD display with capacitive touch buttons, providing clear temperature feedback and easy operation.
• Equipped with an enlarged pure copper transformer, it delivers a stable and sustained 120W power output, ideal for demanding tasks such as phone motherboard and BGA soldering.
• Advanced temperature control and an automatic sleep function ensure energy efficiency and extend tip lifespan.
• Color: Black.

• Output Power: 120W (stable, continuous output).
• Input Voltage: 110V / 220V (110V requires advance customization).
• Heating Element: One-piece resistance heating element with fast thermal recovery sensor.
• Temperature Range: 200°C – 420°C (392°F – 788°F).
• Temperature Stability: ±2°C.
• Handle Model: TSS30B.
• Tip Model: TSS02 (straight tip included).
• Display: 1.9-inch full-color LCD with capacitive touch buttons.
• Dimensions: 137 × 168 × 114 mm.
• Weight: Approx. 3.5 kg.

• Enlarged pure copper transformer ensures stable and reliable 120W power output for consistent soldering performance.
• Rapid heating: reaches 320°C in 8 seconds or less, minimizing wait times.
• Three customizable preset temperature channels (CH1/CH2/CH3) for quick switching between soldering modes.
• Automatic sleep mode with adjustable intervals conserves energy and prolongs tip life during idle times.
• PIN code lock to secure your personalized settings against unauthorized changes.
• Handle recognition alarm alerts if the handle or tip is mismatched or malfunctioning.
• Temperature units easily switchable between Celsius and Fahrenheit for user preference.
• Built-in fuse and real-time ESD grounding monitoring ensure safety and protection of sensitive components.
• Optional PC/network connectivity available for firmware updates and remote monitoring (model dependent).
• Compact design with a sturdy metal chassis for durability in professional environments.

In the Box

• 1 × Soldering Station main unit
• 1 × TSS30B soldering handle
• 1 × TSS02 straight soldering tip
• 1 × Power adapter (region-specific)
• 1 × User manual
