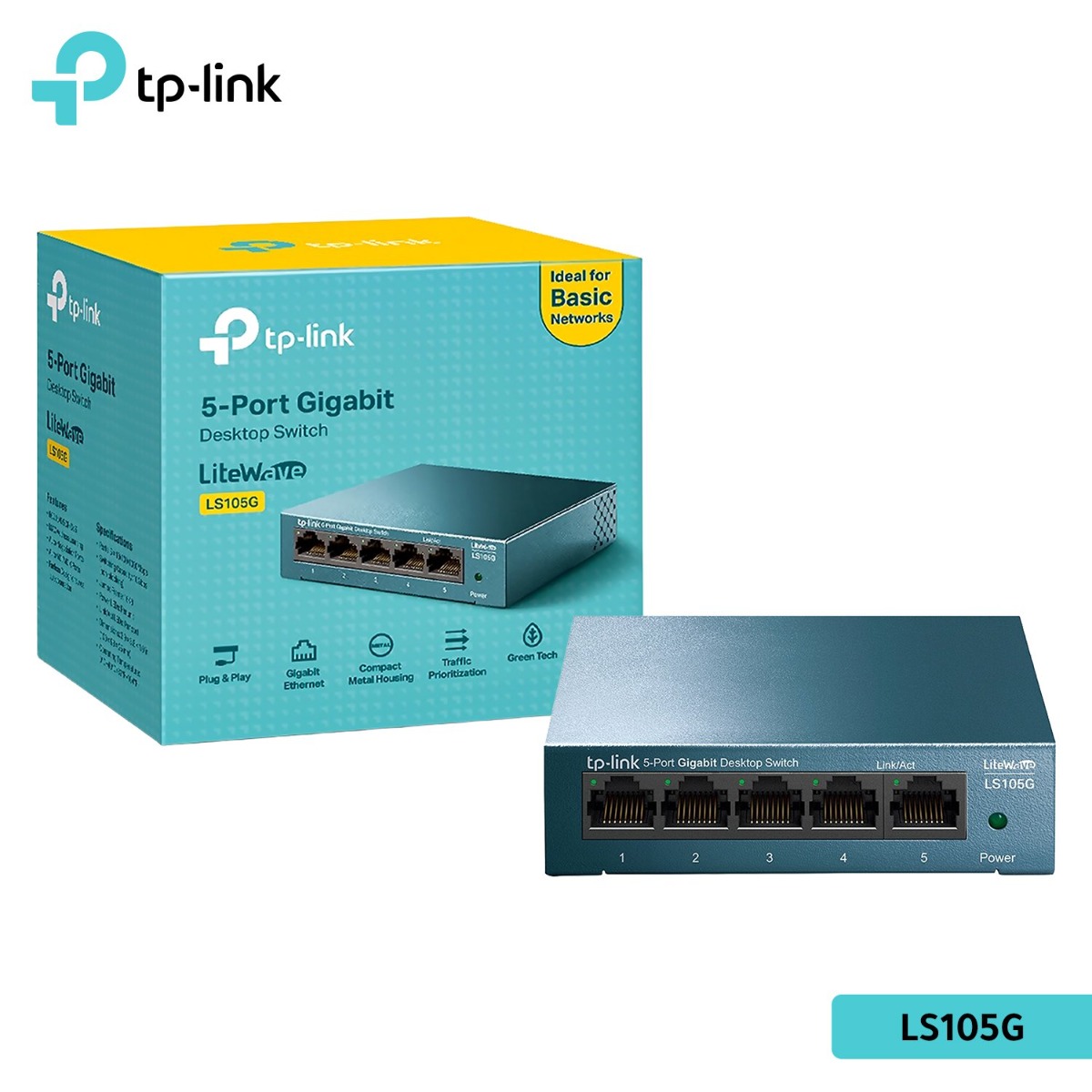

Brand: TP-Link
Model: LS105G
Product Type: Network Desktop Switch
5× 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer

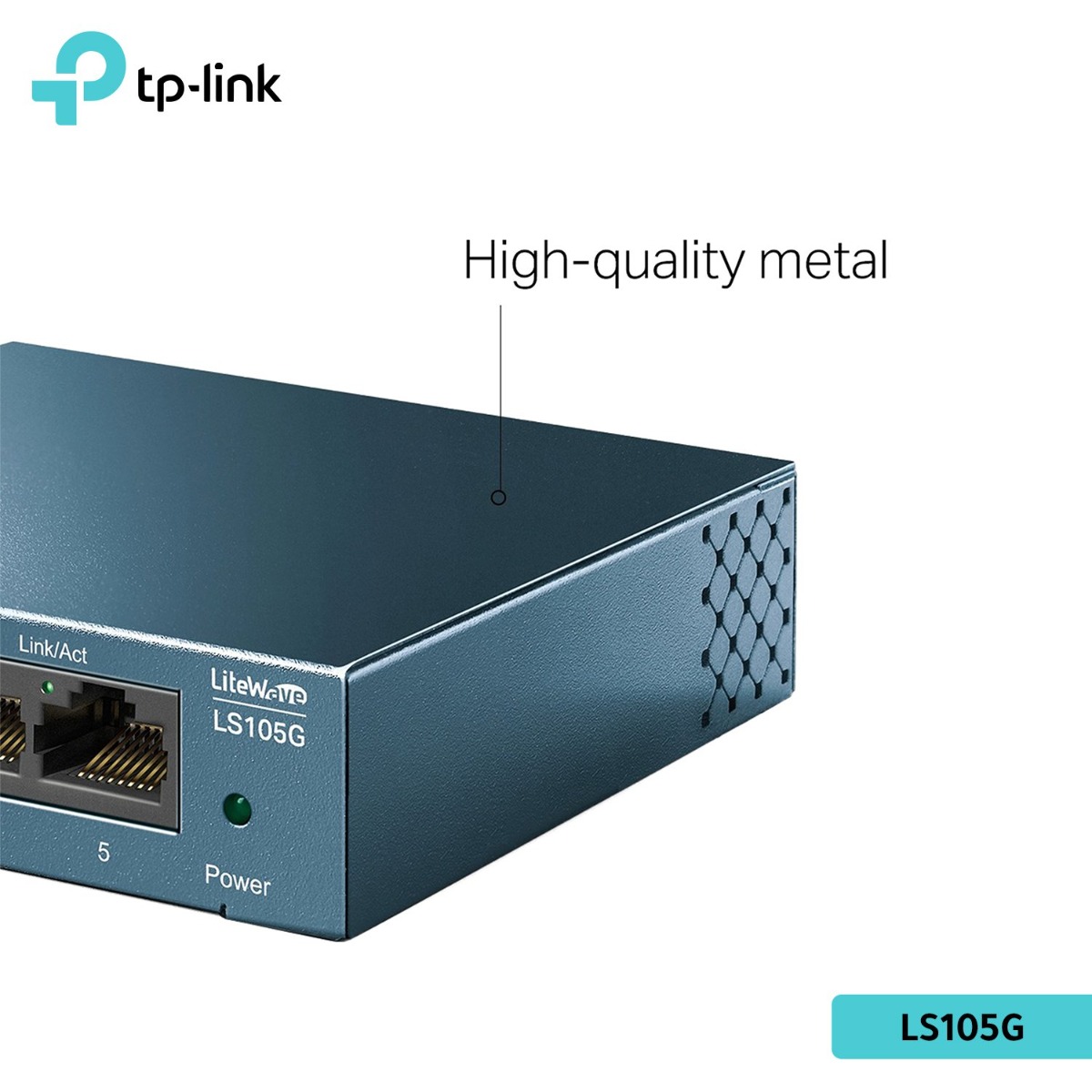

Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS function

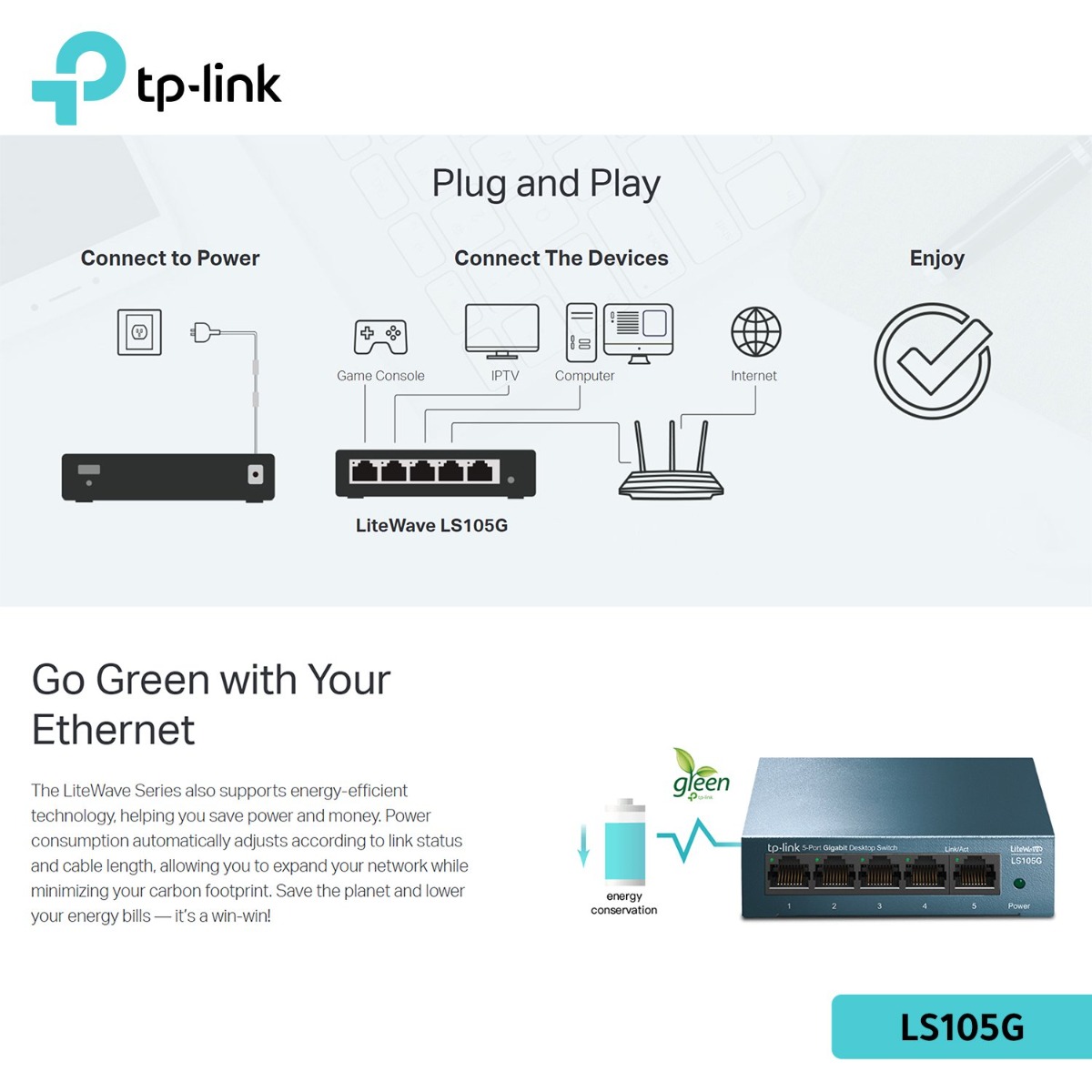

Plug and play, no configuration needed
Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS
Transmission Method: Store and forward
Hardware
Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface: 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
Led
System Power
Link/Act indicators per port built into each RJ-45 port

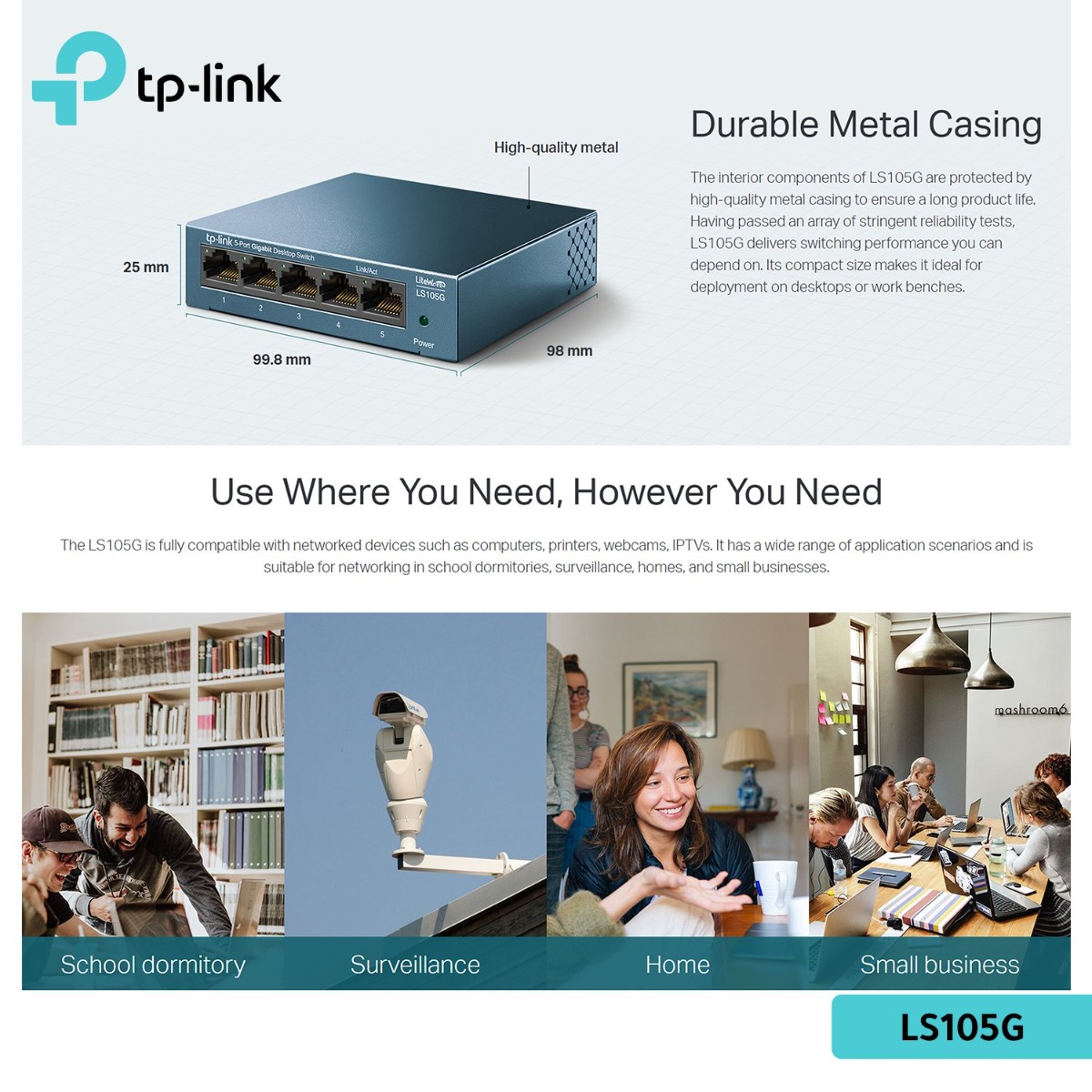

Dimensions (W × D × H): 3.9 × 3.9 × 1.0inch (99.8 × 98 × 25mm)
Max. Power Consumption: 2.776W (220V/50Hz)
Max. Heat Dissipation: 9.466BTU/h
Packet Buffer Memory: 1Mb
Jumbo Frame: 16KB
Packet Forwarding Rate: 7.4Mpps
MAC Address Table: 2K
Certification: CE, FCC
Package Content
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
